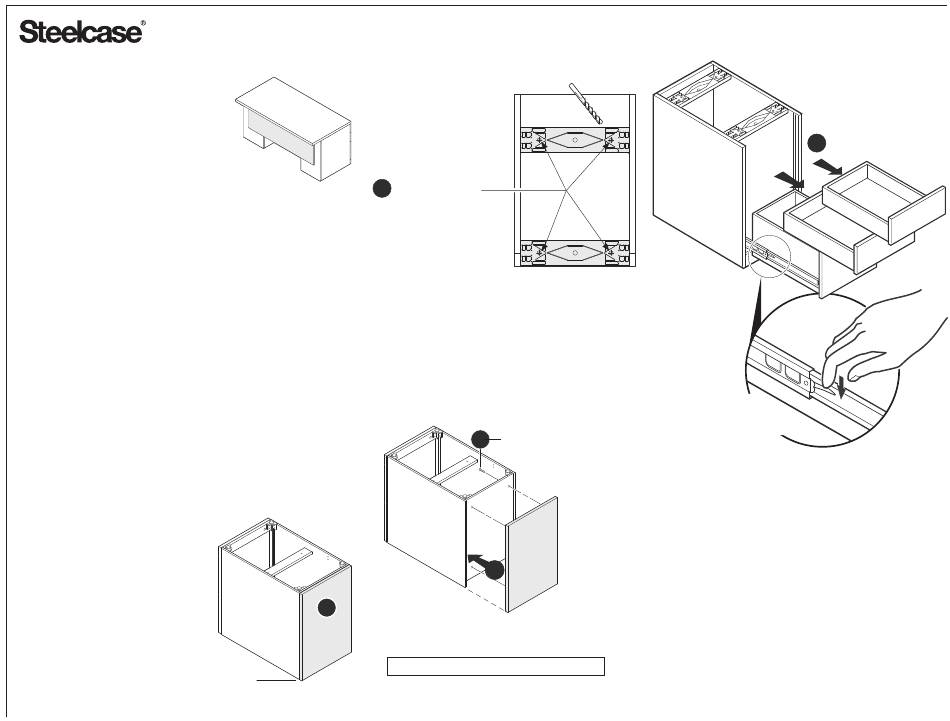

2/3 HEIGHT MODESTY PANEL
1.
Remove drawers (if any) from
pedestals.
2.
Drill (4) holes through pedestal
back panels in the approximate
locations shown.
3.
Fit finished back panels onto
pedestals as shown.
4.
Secure with (4) screws each
through holes drilled in step 2.
Locate finished back panels
flush with pedestal end panels
and centered side to side.
2
Locate (4) holes
in stretchers in back
of pedestal as shown,
then drill through back
panel of pedestal.
4
3
3
PEDESTALS SHOWN UPSIDE DOWN
REAR VIEW
To remove drawers
push lever down on one
side, and up on the other.
(4) screws per pedestal,
#10 x 1-1/2" pan head.
1
