If you have a problem, question,
or request, call your local dealer,
or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people
who want to help you.
(Outside the U.S.A., Canada,
Mexico, Puerto Rico, and the
U.S. Virgin Islands, call:
1.616.247.2500)
Or visit our website
www.steelcase.com
Si vous avez un problème, question,
ou la demande, appellent votre
revendeur local, ou
Ligne 1 de Steelcase à
888.STEELCASE (888,783,3522)
pour l'action immédiate par les
personnes qui veulent vous aider.
(en dehors des Etats-Unis, Canada,
Le Mexique, Porto Rico, et
Les ÉTATS-UNIS. Les Îles Vierges,
appel: 1,616,247,2500)
Ou visiter notre website
www.steelcase.com
Si usted tiene un problema, pregunta,
o la petición, llama a su distribuidor
local, o Línea 1 de Steelcase en
888.STEELCASE (888,783,3522)
para la acción inmediata por la
gente que desea ayudarle.
(fuera de los E.E.U.U., Canadá,
Méjico, Puerto Rico, y Los E.E.U.U..
Islas de la Virgen, llamada:
1,616,247,2500)
O visite nuestro website
www.steelcase.com
1998 Steelcase Inc.
©
Rapids Grand, MI 49501
U.S.A.
Les ETATS-UNIS.
Los E.E.U.U.
Printed in U.S.A.
Imprimé aux Etats-Unis.
Impreso en los E.E.U.U.
®

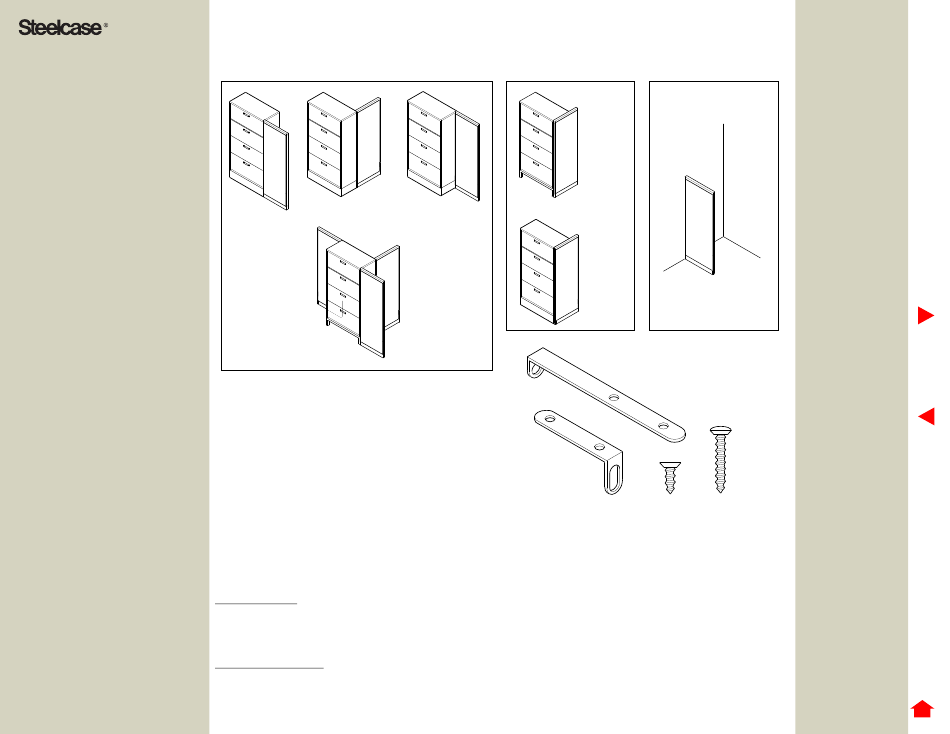

Joining an Avenir
Panel to a Lateral File or Permanent Wall
Package contents include (2) top attaching straps
(2) bottom attaching straps, (8) #10 x 1/2" flat head
screws and (8) #10 x 1-1/2" oval head screws.
The following directions are provided to aid you when installing a Avenir panel to a lateral file that is
mounted on either a leg base or panel cabinet base (PCB). The contents of the package can also be used
to attach a panel to a wall. Installation will require (2) installers and the following tools:
Wall Attachment
For mounting to dry wall, plaster or wood, you will need a phillips tip screwdriver, flat tip screwdriver, 1/4" drill
motor, #30 drill bit, hammer, 3/8" wrench and wall anchors. For concrete walls a star drill and wall anchors
are recommended.
800 Series Lateral File
For mounting panels to lateral files you will need a flat tip screwdriver, phillips tip screwdriver, 1/4" drill motor,
5/32" drill bit, center punch, 3/8" wrench and pliers.
Bottom
Attaching
Strap
Top
Attaching
Strap
#10 x 1/2" flat
#10 x 1-1/2" oval
head screw
head screw
1
of
4
939500724 Rev A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Avenir Panel
Summary of Contents for Steelcase Avenir Panel
- Page 1 1,616,247,2500) O visite nuestro website The following directions are provided to aid you when installing a Avenir panel to a lateral file that is www.steelcase.com mounted on either a leg base or panel cabinet base (PCB). The contents of the package can also be used to attach a panel to a wall.
- Page 2 Lateral File Attachment TOP CAP Remove the top cap . Remove tape. Remove base trim. Insert pin Position top attaching strap and panel against the lateral file and mark. PANEL REMOVE TAPE REMOVE BASE TRIM PENCIL MARK ATTACHING STRAP 939500724 Rev A...
- Page 3 Lateral File Attachment Position bottom attaching strap and panel against the lateral file and mark. Position top attaching strap against the lateral file and attach with #10 x 1/2 flat head screws. LATERAL Position bottom attaching strap against the FILE lateral file and attach with #10 x 1/2 flat head BOTTOM screws .
- Page 4 Wall Attachment ATTACHING Position bottom, top attaching straps and panel STRAP against the wall and mark. Position top attaching strap against the wall and attach with #10 x 1-1/2 oval head screws. Position bottom attaching strap against the wall BOTTOM and attach with #10 x 1-1/2 oval head screws.
