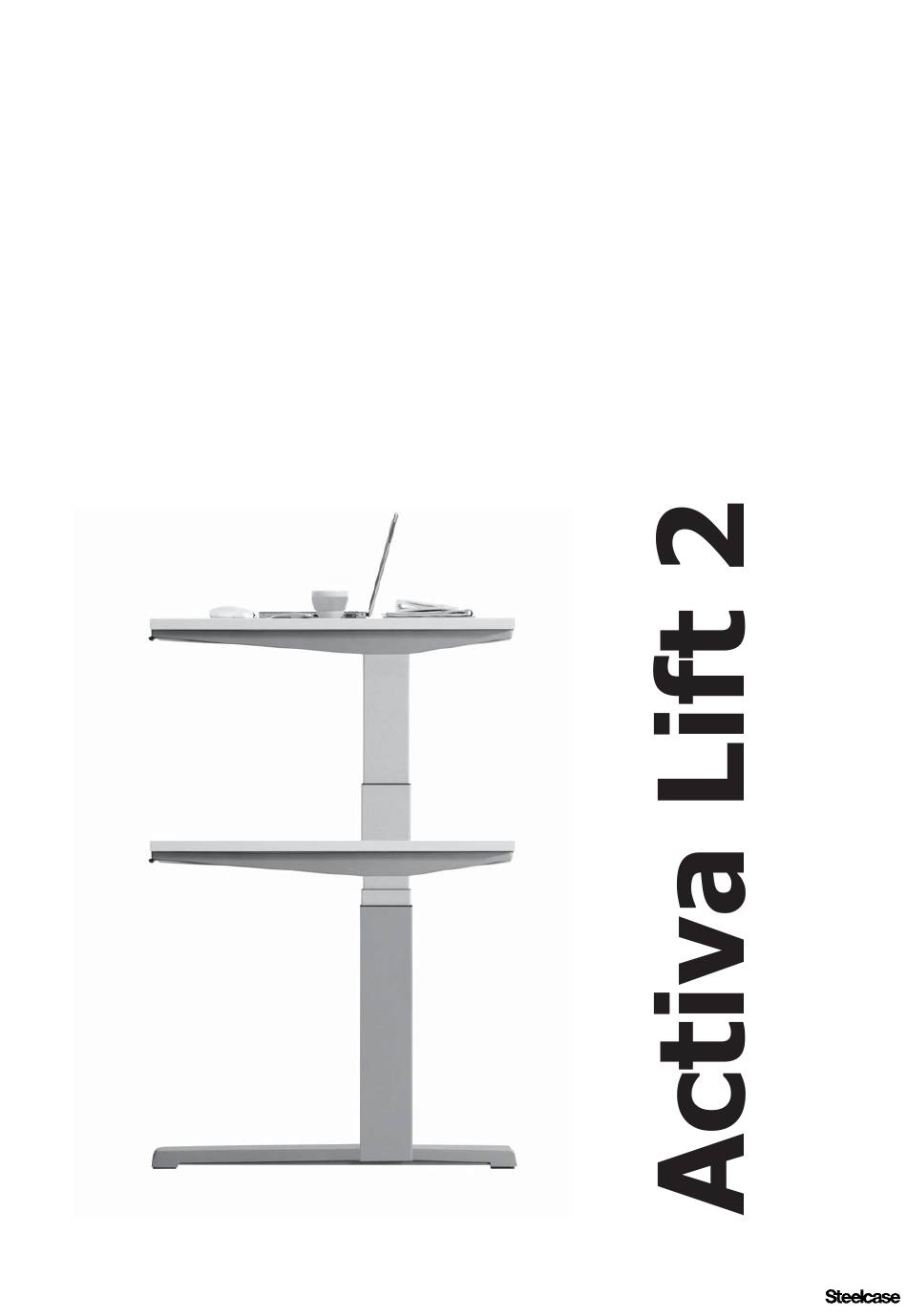

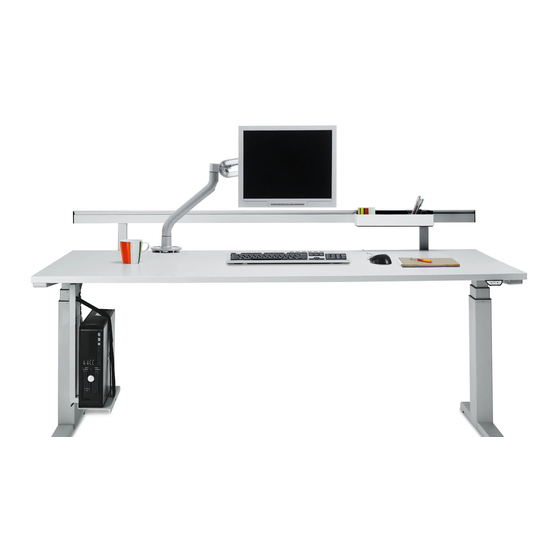

- Page 1 User Manual Translation of the original instructions BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
-
Page 2: Table Of Contents
Activa Lift 2 product series ........ - Page 3 Product monitoring..........37 BA_Activa Lift 2 Elektro ©_D_10_2010 Contents www.steelcase-village.de...
-
Page 4: Ec Declaration Of Conformity
EC Declaration of Conformity Product Desk Type Activa Lift 2 Year of manufacture 2010 The design of the device satisfies the following EC Machinery Directive 2006/42/EC applicable regulations: EC Low-Voltage Directive 2006/95/EC EC EMC Directive 2004/108/EC Applied harmonised standards: DIN EN 527-1 Office furniture, work tables and desks - Part 1 Dimen-... - Page 5 BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
-
Page 6: General Instructions
General instructions General instructions For the Activa Lift 2 product series The Activa Lift 2 office furniture product line from Steelcase Werndl AG consists of the following Product products: information • Desk with electrical height-adjustment • Accessories and optional components Our products undergo constant quality control checks during manufacture and distribution. -
Page 7: About This User Manual
This user manual is a component of the Activa Lift 2 desk. This user manual is part of the scope of delivery, even if the desk is resold. This user manual is available on the Steelcase Werndl AG web- site. -
Page 8: Liability Disclaimer
General instructions Liability disclaimer Under one or more of the following conditions liability on the part of Steelcase Werndl AG can be excluded: • Improper use of the product; • Use of the product beyond its intended purpose as office furniture;... -
Page 9: Basic Safety Instructions
Basic safety instructions Intended use The Activa Lift 2 desk is exclusively designed to be used as office furniture. A different use, or use Intended use extending beyond the specified intended use is considered non-intended use. In the event of improper use, Steelcase Werndl AG shall assume no liability for any damage caused and the guar- antee for correct functional operation of the components shall no longer apply. -
Page 10: Product Description
Product description Product description Technical data 3.1.1 Desk Activa Lift 2 Elektro Dimensions: (See delivery note) Weight: (See delivery note) 3.1.2 Electrical components Controller and drive Temperature range at set-up location: +5°C - +35°C Relative humidity: 5% to 80% (non-condensing) ∼... -
Page 11: Components
Product description Components The Activa Lift 2 desk essentially consists of the following components (the description of the vari- ants is provided in the respective chapter): • 1 upper frame with: • Melamine, wood, or TechTop desktop • Desktop crossbars •... -
Page 12: Desk Overview
Product description Desk overview The illustrations show one of many design variants of the Activa Lift 2 desk. They are provided merely for the purpose of illustrating the desk components. Figure 3–1 Desk Operator panel Electric motor in the housing... -
Page 13: Up/Down Operator Panel
Product description Up/down operator panel The operator panel with the "up" and "down" functions is on the right or left underside of the desktop. Figure 3–2 Up/down operator panel "Up"' button "Down" button Desktop BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 14: Memory 4X Operator Panel (Optional)
Buttons "MEMORY 1 / 2 / 3 / 4“ Button drive "Up" Memory button "STORE" Display Button drive "Down" Desktop The cable of the operator panel in connected to the controller. The controller is under the desktop. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 15: Electrical Height Adjustment
The lift movement is executed via an electronic controller. The electronic controller is in a plastic housing under the desktop. The upper limit position of the desktop is preset in the controller. Consequently only use the control- ler that is delivered with the desk. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 16: Transportation And Storage
If the desk will be stored prior to setup, the following conditions must be satisfied to protect the desk and its components: • Intact transport packaging • Sufficient floor stability • Dry floor • Level floor surface • Temperature range: +5°C - +35°C • Relative humidity 5% to 80% (non-condensing) BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 17: Assembly And Disassembly
The electrical equipment for the desk must be checked. Loose connections and damaged cables should be repaired immediately. Only plug in or unplug plug-and-socket-connections when the electrical equipment is de-energised. The desk plug must be easily accessible at all times. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 18: Setup And Alignment
Setup and use of the product requires detailed planning. For this Steelcase Werndl AG offers the services of its own planning department. As a rule the partially assembled components of the Activa Lift 2 desk are delivered by the retailer or directly by the manufacturer. -
Page 19: Disposal Of The Packaging Material
These materials are recyclable. The manufacturer will remove the packaging if the product is assembled by Steelcase Werndl AG or one of Steelcase Werndl AG's approved assembly compa- nies. If you assemble it yourself, please sort the various materials and take them to collection points for the material recycling system. -
Page 20: Operation And Settings
Operation and settings Operation and settings Safety The Activa Lift 2 desk should only be used and operated in faultless condition and in compliance with the instructions in the user manual. Prerequisites for adjusting the height of the desk: • Persons or objects should not be in the entire lift range e.g. open doors or windows, nor should objects protrude into the lift range. - Page 21 Continuous operation damages the motor controller of the operator panel! damage Do not exceed the maximum switch-on time as specified on the type plate. Ensure that all of the connection cables for the equipment on the office furniture system are long enough. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
-
Page 22: Optimal Desk Height
Plug the mains plug into a 220V/230V power outlet Prior to placing the desk in service it is necessary to execute a reset process. Execute RESET You can find the instructions for use in the Appendix to the relevant operator panel description. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 23: Up/Down Operator Panel
CAUTION Risk of damaging the operator panel! Do not lean on the operator panel for support. Do not place any objects on the operator panel. Do not spill any fluids on the operator panel. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 24: Reset After Power Switch-On - Operator Panel Up/Down
In the event that the reset process could not be successfully executed, proceed as follows: Incorrect reset process Press the "Up" and "Down" buttons simultaneously and keep them depressed for at least 5 seconds. Restart the reset process as described above. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 25: Adjusting The Desk Height With The Up/Down Operator Panel
Determine the cause in accordance with the troubleshooting table (See 7.2 Error messages on the display on page 28 and 7.3 Other errors and faults on page 31). If necessary request a service technician. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 26: Memory 4X Operator Panel (Optional)
The setting of the memory positions is described in chapter 6. Figure 6–2 Operator panel Memory 4x Buttons "MEMORY 1 / 2 / 3 / 4“ Button drive "Up" Memory button "STORE" Display Button drive "Down" Desktop BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 27: Reset After Power Switch On - Memory 4X Operator Panel
In the event that the reset process could not be successfully executed, proceed as follows: Incorrect reset process Press the "Up" and "Down" buttons simultaneously and keep them depressed for at least 5 seconds Restart the reset process as described above BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 28: Manual Reset - Operator Panel Memory 4X
In the event that the reset process could not be successfully executed, proceed as follows: Incorrect reset process Press the "Up" and "Down" buttons simultaneously and keep them depressed for at least 5 seconds Restart the reset process as described above BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 29: Adjusting The Desk Height With The Operator Panel Memory 4X
Determine the cause in accordance with the troubleshooting table (See 7.2 Error messages on the display on page 28 and 7.3 Other errors and faults on page 31). If necessary request a service technician. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 30: Setting A Memory Position
Always move the desk up or down until the desired or programmed height is reached and the desk stops. This ensures that the desk is aligned evenly (horizontally) if there is a load on one side. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 31: Problem Resolution
Error messages on the display If errors occur when operating the Activa Lift 2 desk, please check whether the product is being operated as specified in the user manual. In most cases, this manual will help you to locate and cor- rect the errors. - Page 32 Execute RESET (See 6 Operation and settings on page 17). Overcurrent or short circuit Check for collision: Correct if necessary. Max. load exceeded: Remove load from desk. Overvoltage Check for mains supply or power supply unit fluctuations. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
- Page 33 If the error cannot be corrected through the described measure: Unplug power plug. Wait approx. 5 minutes Execute RESET. If an error still occurs after these steps have been executed: Unplug power plug. Contact customer service. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
-
Page 34: Other Errors And Faults
Other errors and faults If errors or faults occur when operating the Activa Lift 2 desk, please check whether the product is being operated as specified in the user manual. In most cases, this manual will help you to locate and correct the problem. - Page 35 Desk only moves briefly on No connection or loose con- Check, or if necessary, estab- one side and then stops nection to the drives / side lish plug-and-socket-connec- parts tions on the controller and on the drive. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
- Page 36 Noise development Telescopic bars are dirty or (Stop lifting / lowering immedi- blocked by foreign matter ately; Remove foreign object / foul- Contact service hotline (See 9.2 Repairs and spare parts on page 37) BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
-
Page 37: Maintenance
Function checks The components of the Activa Lift 2 desk should be checked for proper function at regular intervals. Particular attention should be devoted to the electrical connections: The electrical equipment for the desk should be checked regularly. Loose connections and dam- aged cables should be repaired immediately. -
Page 38: Maintenance Tasks
Risk of damaging the lifting mechanism! After dismantling the desk, e.g. for transportation purposes: Always reattach the two side frames to upper frame to which they belong. Follow the separate assembly instructions to do this. BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de... -
Page 39: Cleaning And Care
The use of other parts requires the consent of Steelcase Werndl AG. The specified maintenance and inspection intervals must be complied with. Steelcase Werndl AG shall assume no liability for and will provide no guarantee in the following Liability cases (See 1.4 Liability disclaimer on page 5): disclaimer •... -
Page 40: Customer Service
Repairs and spare parts Original spare parts and accessories can be obtained from the manufacturer. If errors or faults that occur cannot be corrected, please contact the Customer Service Department: Service hotline Steelcase Werndl AG Georg-Aicher-Strasse 7 Hotline: D-83026 Rosenheim, Germany Telephone... - Page 41 Customer service Product monitoring form Steelcase Werndl AG Fax: +49 0 80 31 405 - 378 Georg-Aicher-Strasse 7 e-mail: support@steelcase.com D-83026 Rosenheim, Germany Product suggestions: User manual suggestions: Sender: BA_Activa Lift 2 Elektro ©_D_10_2010 www.steelcase-village.de...
