Customer Service Kits for Airtouch
Installation Instructions
Page 1 of 3
939500240 Rev C

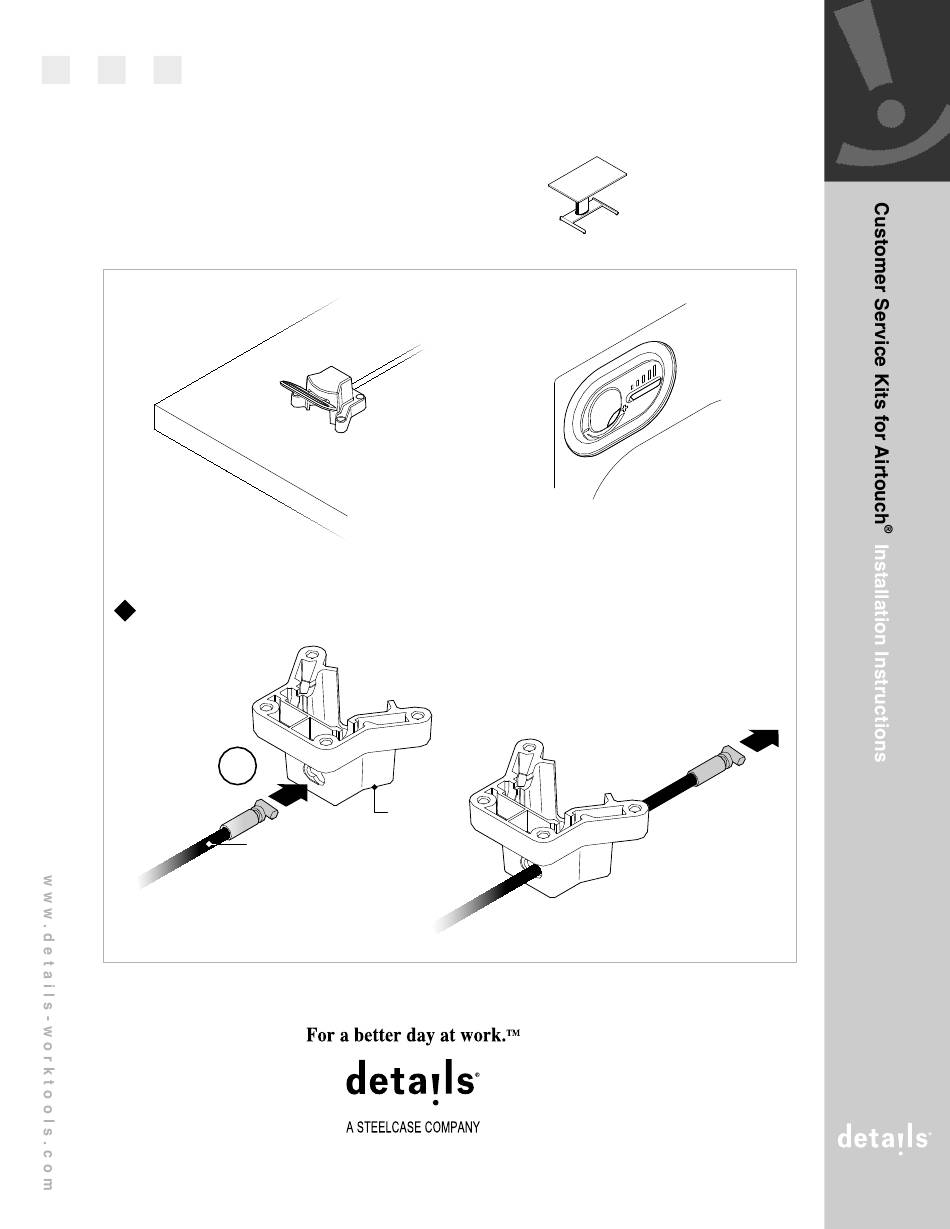

Replacing a Handle Assembly
1
Slide the cable through the
hole in the outer handle housing.
1
CABLE
P.O. Box 1967 / CD-5E / Grand Rapids, MI 49501-1967 / www.details-worktools.com
©2009 Office Details Inc. All rights reserved. Printed in U.S.A. 8/09
®
OUTER
HANDLE
HOUSING
Customer Service Kits
for Airtouch
®
Advertisement
Table of Contents
Related Manuals for Steelcase Details Airtouch
Summary of Contents for Steelcase Details Airtouch
- Page 1 Customer Service Kits for Airtouch ® Customer Service Kits for Airtouch ® Installation Instructions Page 1 of 3 939500240 Rev C Replacing a Handle Assembly Slide the cable through the hole in the outer handle housing. OUTER HANDLE HOUSING CABLE P.O.
- Page 2 Customer Service Kits for Airtouch ® Customer Service Kits for Airtouch ® Installation Instructions Page 2 of 3 939500240 Rev C Slide the cylindrical tip of the cable through the hole in the handle (2a) and twist the handle into the correct position (2b). Place the handle, with cable attached, into the outer handle housing as shown.
- Page 3 Customer Service Kits for Airtouch ® Customer Service Kits for Airtouch ® Installation Instructions Page 3 of 3 939500240 Rev C Replacing a Faceplate Remove existing faceplate. Slide the right side of the faceplate (hook side) into the octagonal opening (2a). Swing faceplate to the left and into octagonal opening (2b) until you hear an audible 'snap' (2c).
