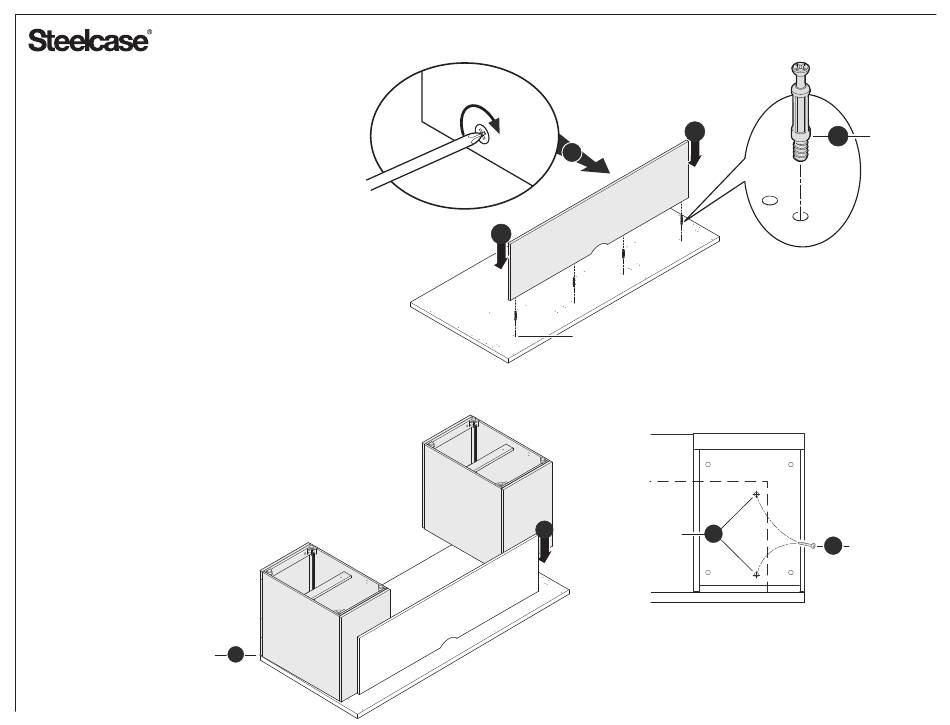

5.
Locate predrilled holes in
worksurface, then install modesty
panel.
A) Install connecting bolts into
holes in the worksurface.
B) Lower modesty panel into
position.
C) Insert cam locks and secure
with a half turn.
6.
Install pedestals onto
worksurface as shown. For more
details, refer to assembly
direction 939500237.
7.
Drill (2) holes through the two
rear panels of each pedestal.
8.
Secure modesty panel to
pedestals with (2) screws each
pedestal.
When the drawers are reinstalled
pedestals will align with front and side
edges of worksurface, and with modesty panel.
6
5c
5b
Be certain to use
the rear set of holes.
Drill through rear
and finished back
6
panels of pedestal,
into modesty panel.
5b
5a
7
8
(2) screws per
pedestal, # 10-12
x 2" pan head.
FRONT VIEW
Page 7 of 10
P/N 939500227
Doc # 108322 Rev J
CONNECTING
BOLT
