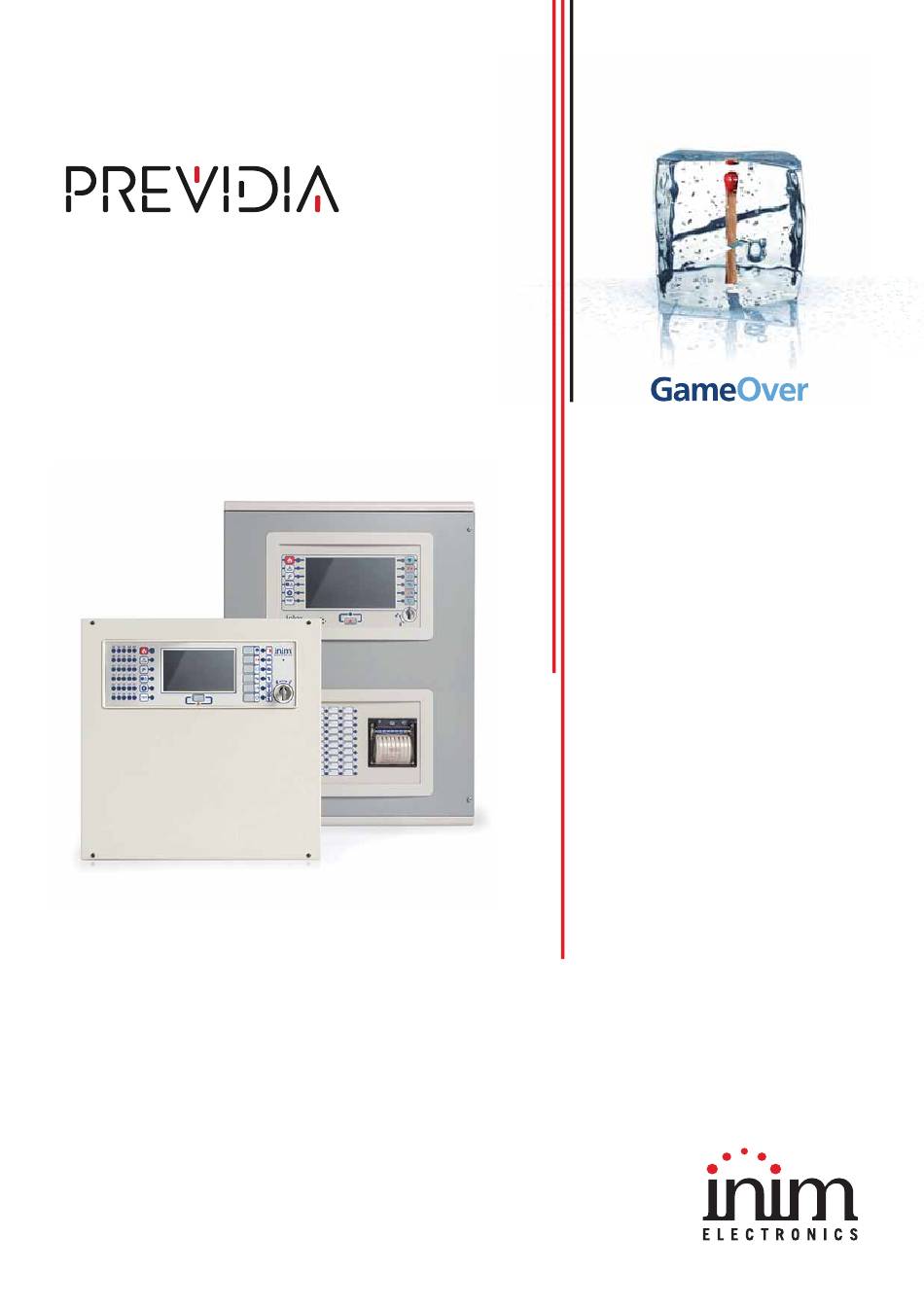

Guide to networking
FIRE DETECTION AND EXTINGUISHANT SYSTEMS
GUIDE TO NETWORKING
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Previdia Max and is the answer not in the manual?

Questions and answers

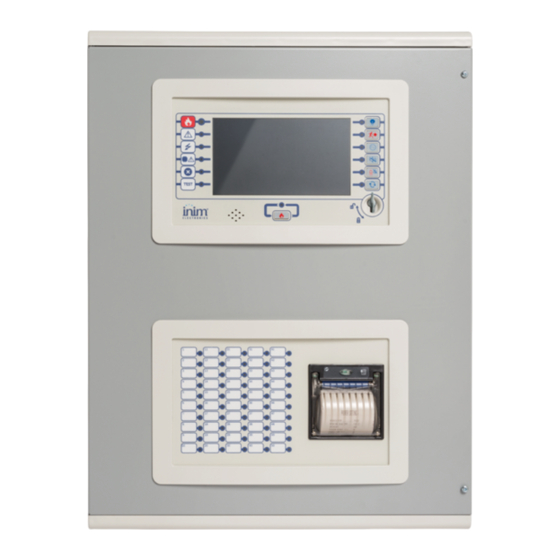

Related Manuals for INIM Electronics Previdia Max

Summary of Contents for INIM Electronics Previdia Max

  • Page 1 Guide to networking FIRE DETECTION AND EXTINGUISHANT SYSTEMS GUIDE TO NETWORKING...

  • Page 2: Warranty

    INIM Electronics s.r.l. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As INIM Electronics s.r.l. does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us; INIM Electronics s.r.l.

  • Page 3: Table Of Contents

    Guide to networking Table of contents Warranty.......................... 2 Limited warranty......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 About this manual ..........................5 Chapter 2 Introduction to networking ..................6 Network connection mode......................6 Chapter 3 The Hornet+ network ....................
  • Page 4 Fire detection and extinguishant systems Table of contents...

  • Page 5: Chapter 1 General Information

    Fax: +39 0735 704912 E-mail: info@inim.biz Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work on INIM Electronics brand devices only. About this manual Manual code: DCMNINE0PREVIDIA Version: 1.10 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia fire- detection system.

  • Page 6: Chapter 2 Introduction To Networking

    Fire detection and extinguishant systems Chapter 2 Introduction to networking Previdia fire-detection control panels are capable of operating in an interconnected network. This document describes the interconnection modes, the available functions and also how to start a network of Previdia control panels.

  • Page 7: Chapter 3 The Hornet+ Network

    Each Previdia Max control panel connected in HORNET+ network must be equipped with an IFMNET module. Previdia Compact control panels and PREVIDIA-C-REP repeaters provide connection terminals on the main board PCB.

  • Page 8: Use Of Optic Fiber Connections

    Fire detection and extinguishant systems Previdia Max Previdia Compact Previdia Compact Port-A Port-B Repeater Previdia Compact Previdia Compact REP Use of optic fiber connections The connection of the various nodes in the HORNET+ network can be achieved through optic fiber using the appropriate converters, as in the following example.

  • Page 9: Supervision Of The Hornet+ Network

    Speed When a Hornet+ address is assigned to a Previdia Max control panel, the IFMNET module activates the blue LED to indicate that the control panel is in the cluster and has started to communicate with the other control panels. The LEDs on the IFMNET module indicate activity on the two communication channels.

  • Page 10: Sharing The Events On The Hornet+ Network

    The access is allowed by the Previdio/Studio solution, after the selection of the centrol panel inside the Hornet+ network. for Previdia Max: The Events filter section is available in the FPMCPU frontal module programming section, by means of the appropriate button.

  • Page 11: Activation Of Groups Of Outputs In The Hornet+ Network

    The access is allowed by the Previdio/Studio solution, after the selection of the centrol panel inside the Hornet+ network. for Previdia Max: The Outputs group section is available in the FPMCPU frontal module programming section, by means of the appropriate button.
  • Page 12 Fire detection and extinguishant systems List of groups of PREVIDIA 1.000 01/01/2018 18:23 outputs Programming parameters of the System > Panel 1 > CPU > Groups selected group Outputs group label Group 001 ]List of devices that activate the selected Group 001 Group 002 Activation delay (s)

  • Page 13: Chapter 4 Tcp/Ip

    Guide to networking Chapter 4 TCP/IP Physical layer To interconnect several clusters together via TCP/IP protocol, it is necessary that at least one control panel is connected to the Ethernet network. This control panel will be indicated as the “gateway” of the cluster and will manage information sharing among the clusters, as well as the supervision of the TCP/IP network integrity.

  • Page 14: Sharing The Events On The Tcp/Ip Network

    Fire detection and extinguishant systems 5. Select “IP” as the communication channel and enter the address of the first gateway on the list ([C]). Communication channel cluster xxx Control panel yyy Type of connection 6. By means of the Check connection button ([D]) it 10.192.10.02 Check connection is possible to test the communication in order to...

  • Page 15: Chapter 5 Repeater Based On Tcp/Ip

    If you intend to configure a Previdia control-panel repeater on a TCP/IP network, it is necessary to have an FPMCPU module for Previdia Max and a PREVIDIA-C-REP module for both Previdia Compact and Previdia Max. After proper installation of the module, you must connect the Ethernet cable then proceed with the configuration process, first via the repeater touch screen then, successively, via the Previdia/Studio programming software.
  • Page 16 Fire detection and extinguishant systems 4. Select “IP” as the communication channel and enter address repeater Communication channel cluster 2 Control panel yyy communication port (6001) [F].. Type of connection 5. The Check connection button [G] will allow you to 192.168.1.121 Check connection test the communication and verify that the TCP/IP...
  • Page 17 Guide to networking Repeater based on TCP/IP...
  • Page 18 Fire detection and extinguishant systems Repeater based on TCP/IP...
  • Page 19 Guide to networking...
  • Page 20 Fire detection and extinguishant systems ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMNINE0PREVIDIA-110-20180911...
