Installation
CAUTION!
Before connecting any device at the installation site, verify input voltage using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding
10% of the solenoid rating may cause severe damage to the unit and will void the warranty.
Preparing the Strike
Note: For 12 VDC, the Plug In Connector (pigtail)
marked "12 VDC" should be used; for 24 VDC,
the pigtail marked "24 VDC should be used.
1. SELECT the appropriate pigtail that matches system
power and electrically CONNECT as illustrated in
Diagram 2.
2. If no connector is present, CONFIGURE the wires as
illustrated in Diagram 2.
3. If using the Latchbolt Monitor (LBM) or Latchbolt
Strike Monitor (LBSM), REFER to Diagrams 3 and 4
on Page 3 to complete wiring.
Note: The 5200 ships in FAIL SECURE OPERATION
mode.
4. USE Diagrams 5 and 6 on Page 3 as a guide to
convert 5200 to FAIL SAFE OPERATION, if needed.
5. ATTACH the appropriate faceplate.
Preparing the Frame
6. PREPARE the frame using the appropriate template
for the faceplate (see Page 4).
Finishing the Installation
7. Electrically CONNECT the wires from the power
source to the 5200.
8. INSTALL the 5200 in the jamb cutout.
9. IF horizontal adjustment is needed,
THEN GO TO the "Adjusting the Horizontal"
section (see Page 3).
IF CONNECTOR IS MISSING
CONNECT
TOGETHER
RED
(+ 12 VDC)
VIOLET
(-NEG)
BLACK
RED/GREEN
CONNECT
TOGETHER

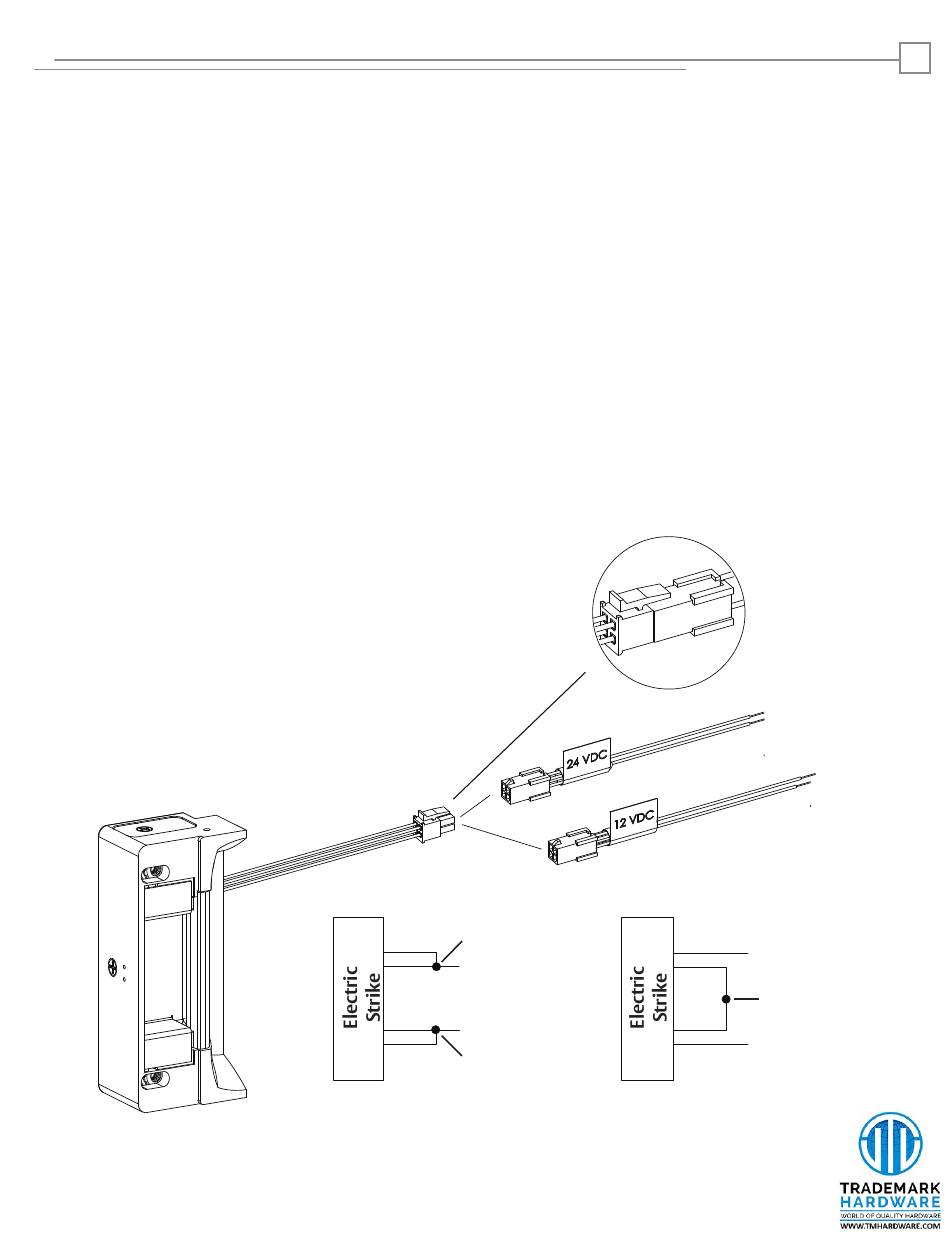

Diagram 2: 12V to 24V Conversion
or
(+ 24 VDC)
RED
VIOLET
BLACK
(-NEG)
RED/GREEN
2
CONNECT
TOGETHER
