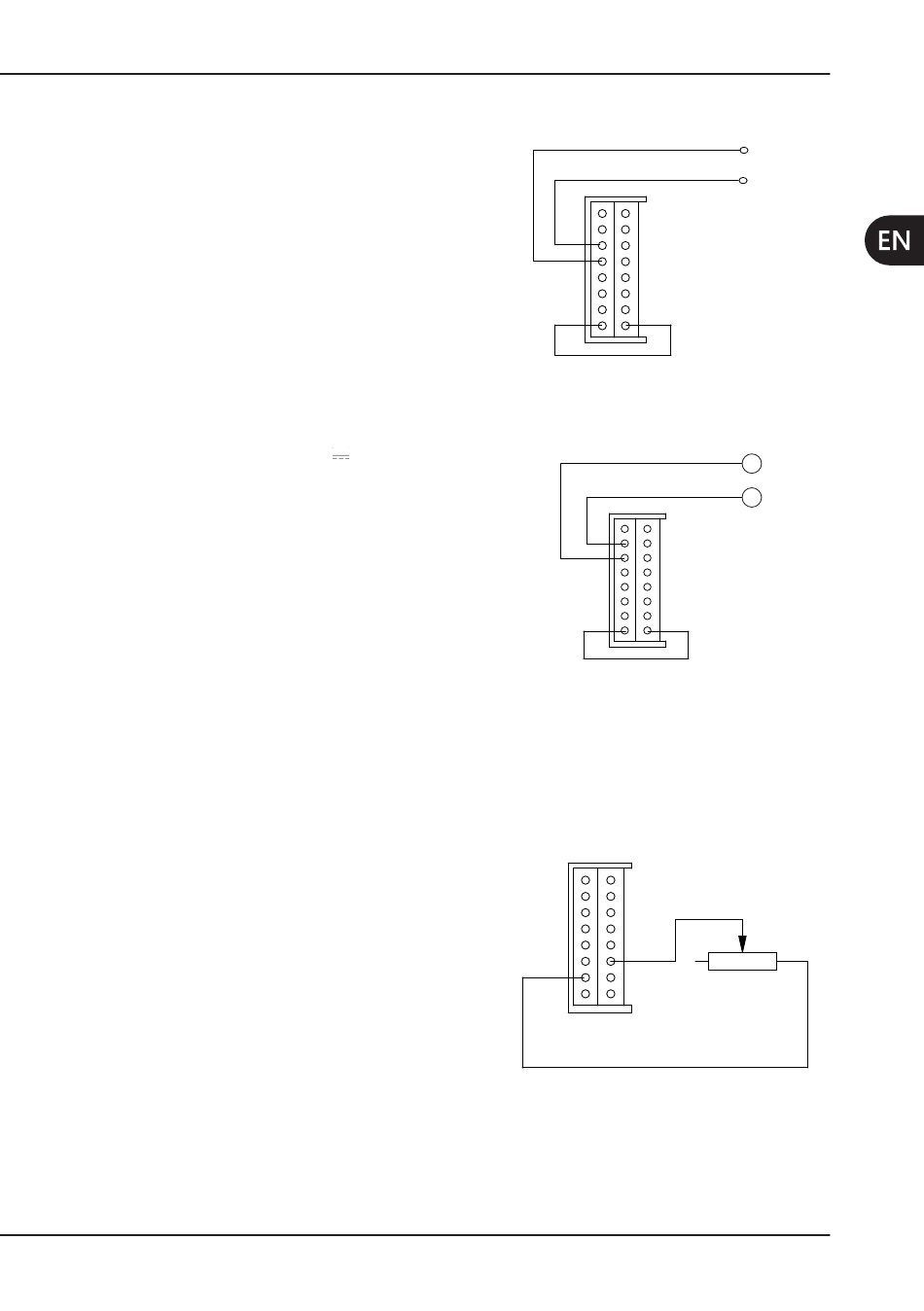

4.3.1 Alternate 24V Power Supply
To power the module at 24V~ 50/60 Hz
connect pins 13 and 14 (see Figure 3 on
page 14 and Table 5 on page 14).
Connect pins 8 and 9 to insert the bypass
capacity present on the board to filter any
disturbances on the power supply.
Observe the voltage and current values
indicated on the plate.
4.3.2 Direct 32V Power Supply
To power the module at 32V
the power supply positive on pin 14 and
the negative on pin 15.
Connect pins 8 and 9 to insert the bypass
capacity present on the board to filter any
disturbances on the power supply.
Observe the voltage and current values
indicated on the plate.
4.3.3 Power Regulation
The COMPACT PIEZO
module allows regulation of the handpiece
power by means of the controls on the dental
4.3.3.1 Power Regulation with 2.2 kOhm Potentiometer
Connect the 2.2 kOhm potentiometer
between pins 6 and 10. The maximum
power corresponds to resistance 0, and
minimum to resistance 2.2 kOhm.
connect
P2K piezoelectric unit, in different modes explained below,
covering the needs of most dental units
available on the market.
INSTALLATION
16
1
15
2
14 3
13 4
5
12
11 6
7
10
8
9
16
1
15
2
14
3
13
4
12 5
11
6
10 7
8
9
16
1
2.2 kOhm linear
15
2
potentiometer
14
3
13
4
12 5
11
6
10 7
8
9
~
Vin
+
-
15
