FarmTek PolyMax H1-10 Manual page 9

5

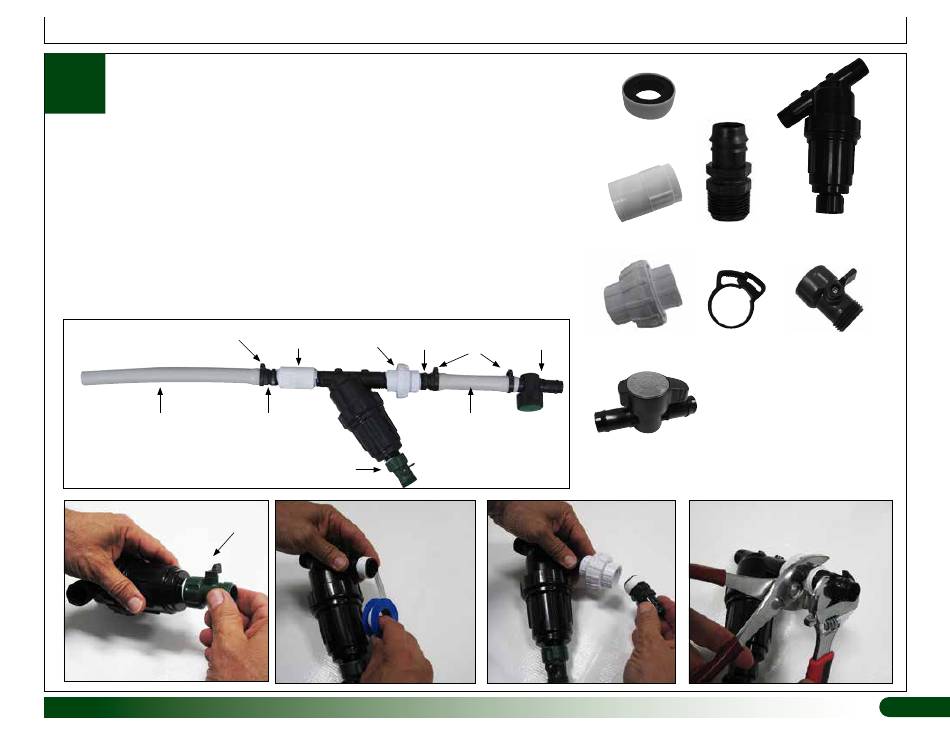

ASSEMBLE FILTER AND RELATED FITTINGS
Complete these steps:
1. First remove the WF1023 filter cap and replace it with the 112066 shut-off valve. Tape the filter
threads before installation. Tighten valve until snug.
2. Take the WR1095 thread tape and wrap the threads of each component four or five times.
Apply tape in a direction that prevents unwrapping during assembly.
3. Assemble the filter and related fittings as shown. Tighten each connection by gently gripping
the coupling with a pair of adjustable pliers and turning the adapter using an adjustable wrench
or similar wrench. Tighten until snug. Do not overtighten and do not crush fittings.
4. Gently squeeze all ratchet clamps around tube connections using a pair of pliers.
5. Continue with the assembly of the pump and supply tube.
111698
Clamp
11" Piece of 3/4"
tubing to connect
to pump.
Attach 112066
Shut-off valve.
WF1023
Filter
Revision date: 05.13.20 112529
Assembly Instructions
111074
WF1970
WF3411
Adapter
111074
Adapter
112066
Shut-Off
Wrap treads
with tape.
111698 AC2804
Clamps Valve
5" Piece of
3/4" Tubing
Assemble.
WR1095
Tape
WF1023 Filter (1)
WF1970 111074
WF3411
111698 112066 (1) Shut-
Ratchet Clamp off to attach to
WF1023 filter.
AC2804
Gently tighten fittings until snug.
