FarmTek PolyMax H1-10 Manual page 5

1

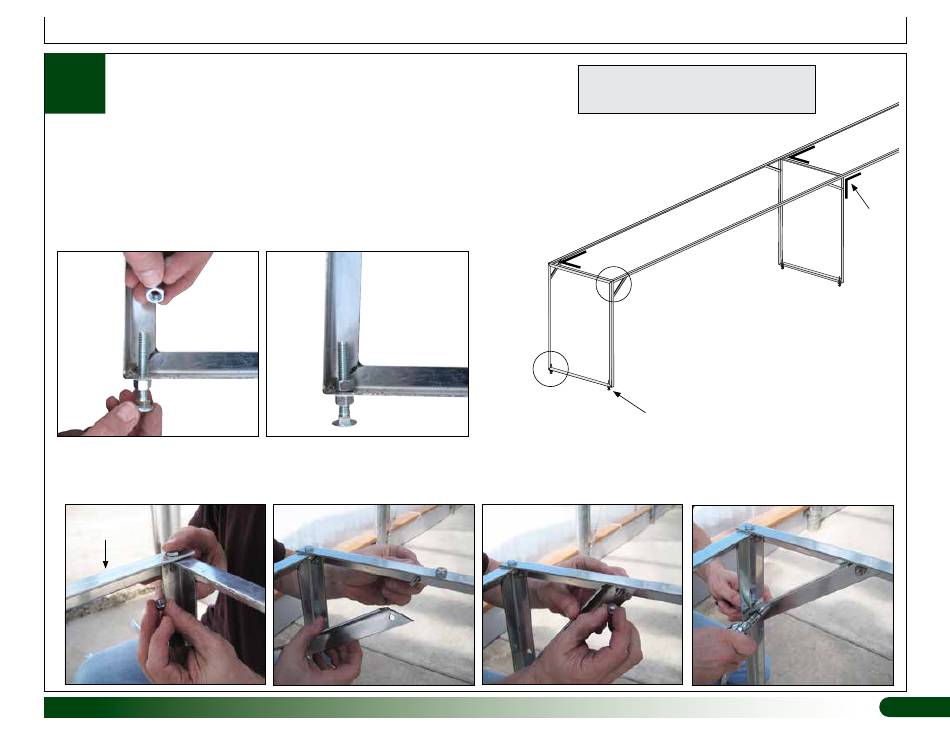

ASSEMBLE TABLE FRAME
Required Parts:
• FALB04B 3/8" nuts (12) and 106742 3/8" x 2-1/2" carriage bolts (6)
• FAG102B 1/4" x 3/4" bolts (18) and FALF15B 1/4" lock nuts (18)
• 112529VFRM: Frame End and Mid Supports (3)
• 112529HANG: Frame Side Rails (2)
• 112529NBRC: Diagonal Brace (6)
STEP 1: Install 3/8" x 2-1/2" leveler bolts as shown. Do not tighten at this time.
STEP 2: Attach side rails to end and mid frame supports using the 1/4" x 3/4" bolts and 1/4" lock nuts. Position rails on top of the end and mid frame
supports. Finish the frame assembly by installing all diagonal braces using the same 1/4" fasteners. Tighten all nuts until snug.
Side Rail
Revision date: 05.13.20 112529
Assembly Instructions
STEP 1
ATTENTION: Use a carpenter's square
to square the frame during assembly and
before you tighten all the fasteners.
Side Rail
Diagonal Brace
STEP 2
End Frame
Support
3/8" Leveler
Carpenter's
Square
Mid Frame
Support
5
