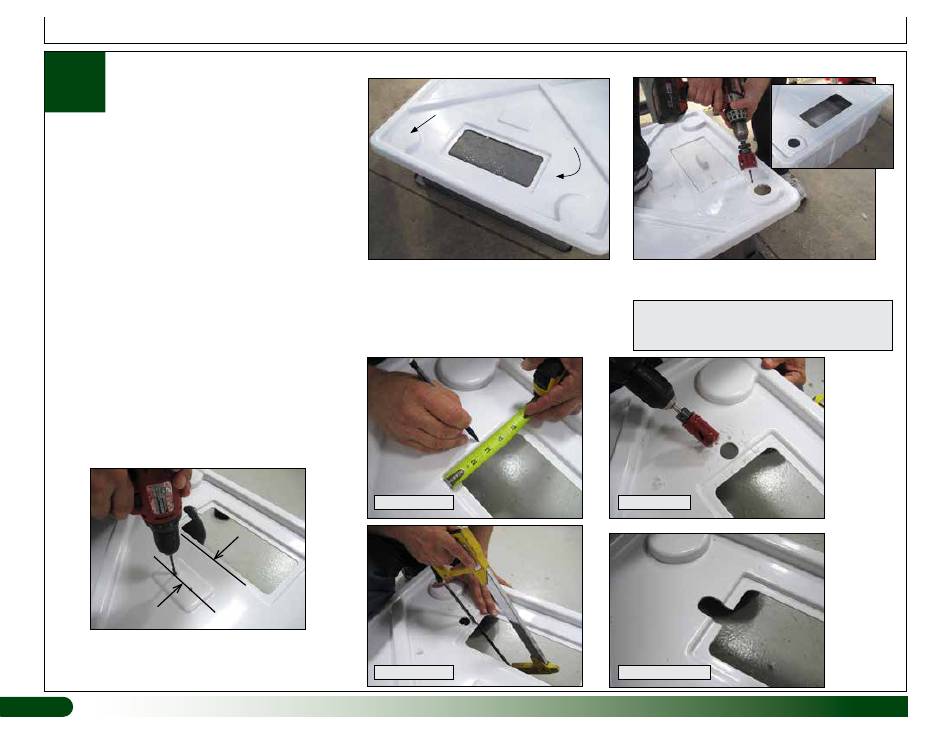

DRILL HOLES IN RESERVOIR COVER
Drill 2" Drain Tube Hole
1. Position the reservoir under the Dutch bucket
frame and determine in which corner you want to
drill the drain tube hole in the cover.
2. Remove the cover from the reservoir and drill
the drain hole in the corner using a 2" hole saw.
Do not drill cover over the reservoir. Debris will
damage the pump and clog the filter.
Drill 1" Supply Tube Hole
1. Using a 1" hole saw, drill the hole for the 3/4"
supply tube from the pump. Drill this hole at the
edge of the port hole opposite the drain tube hole.
See the X's in the photo to the right.
2. Carefully remove the cover material between the
port hole and the 1" hole using a hand saw.
Drill 5/16" Holes for the Air Pump Tubing
1. Take a 5/16" drill bit and drill two holes 2" apart
through cover. See photo below for location.
3"- 4"
2. Remove all debris from the cover and around all
holes to prevent it from dropping into the reservoir
when cover is set in place.
10
Assembly Instructions
Drill 2" Drain Tube Hole
2" Drain
Tube Hole
x
x
Actual cover may differ slightly from
what is shown in this example.
ATTENTION: X marks hole locations based on reservoir
design and position. Drill one 2" drain tube hole and one
1" supply tube hole. Always space holes apart as shown.
If 2" drain hole position is the other corner, drill the 1"
supply tube hole on the opposite side of the port hole.
Drill 1" Supply Hole
Mark location.
Remove lip.
Supply
Tube Hole
Move cover off reservoir. Place on support to
drill the 2" drain hole.
ATTENTION: Reservoir and lid style shown
throughout this guide may vary. When needed,
critical dimensions are noted for hole locations.
Drill 1" hole.
Remove debris.
