ASSEMBLE AND INSTALL SIPHON ELBOWS
Complete these steps:

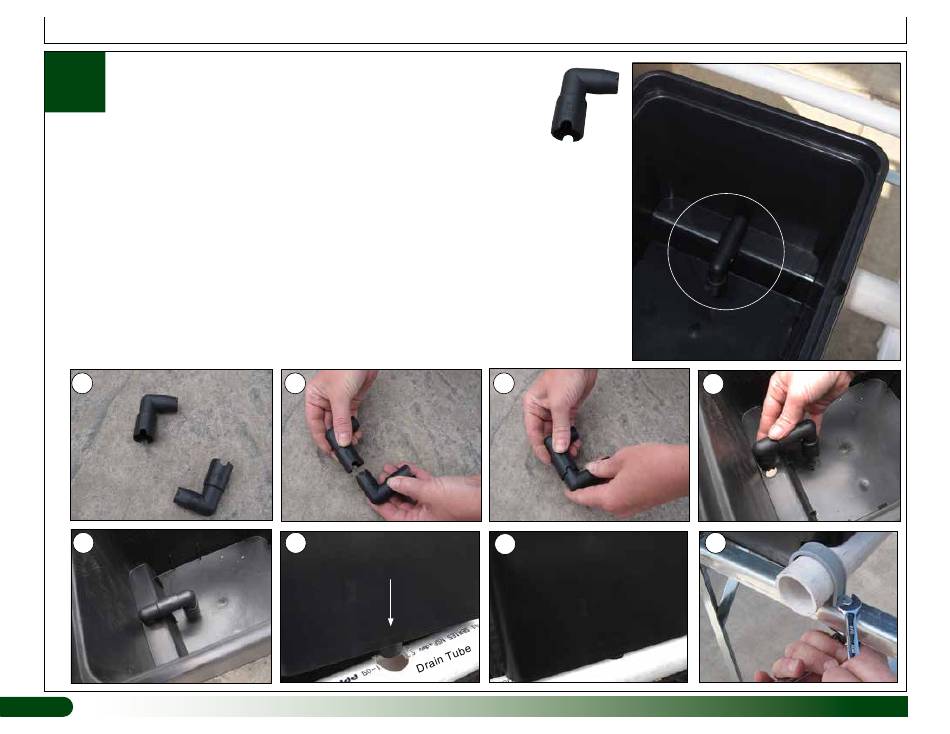

1. Assemble the siphon elbows as shown. Two (2) elbows are used for each
assembly.
2. Take the elbow assembly and install one inside each Dutch bucket.
3. Check bucket position on the frame and verify that each bucket drain nipple is
inserted in the drain hole of the pvc drain tube.
4. Return to and tighten all pipe clamp mounting bolts to secure the drain tube and
to lock buckets in place. Tighten bolts until snug. Do not overtighten bolts. Doing
so will damage the clamps.
5. Continue with the next procedure.
