Configuration
5.3
Set Up a Wireless Infrastructure
Connect two or more Wireless Bolt CAN units via WLAN or Bluetooth using Easy Config.
5.3.1
Connecting the Devices

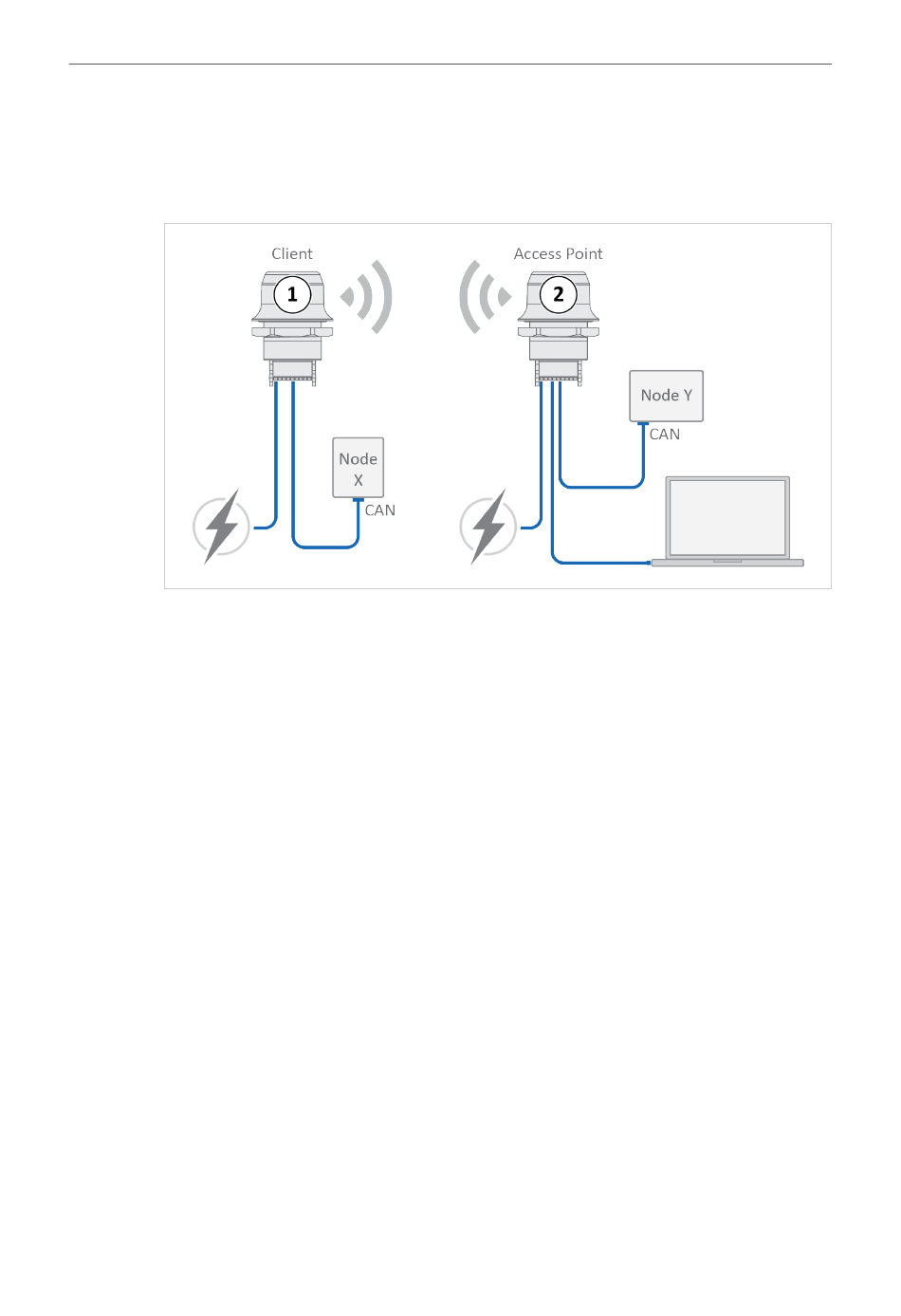

Fig. 29
CAN bridge example
1.
Connect Client unit 1 to a CAN device.
2.
Connect Access Point unit 2 to the master device.
3.
Connect Access Point unit 2 to your PC, with an Ethernet cable.
4.
Connect Access Point unit 2 to power.
®
™
Anybus
Wireless Bolt CAN
User Manual
35 (46)
scm-1202-175 1.1 en-US
