Appendix C: Radio Antenna Patterns
C.2.2 Side View – Vertical 90°
C.3

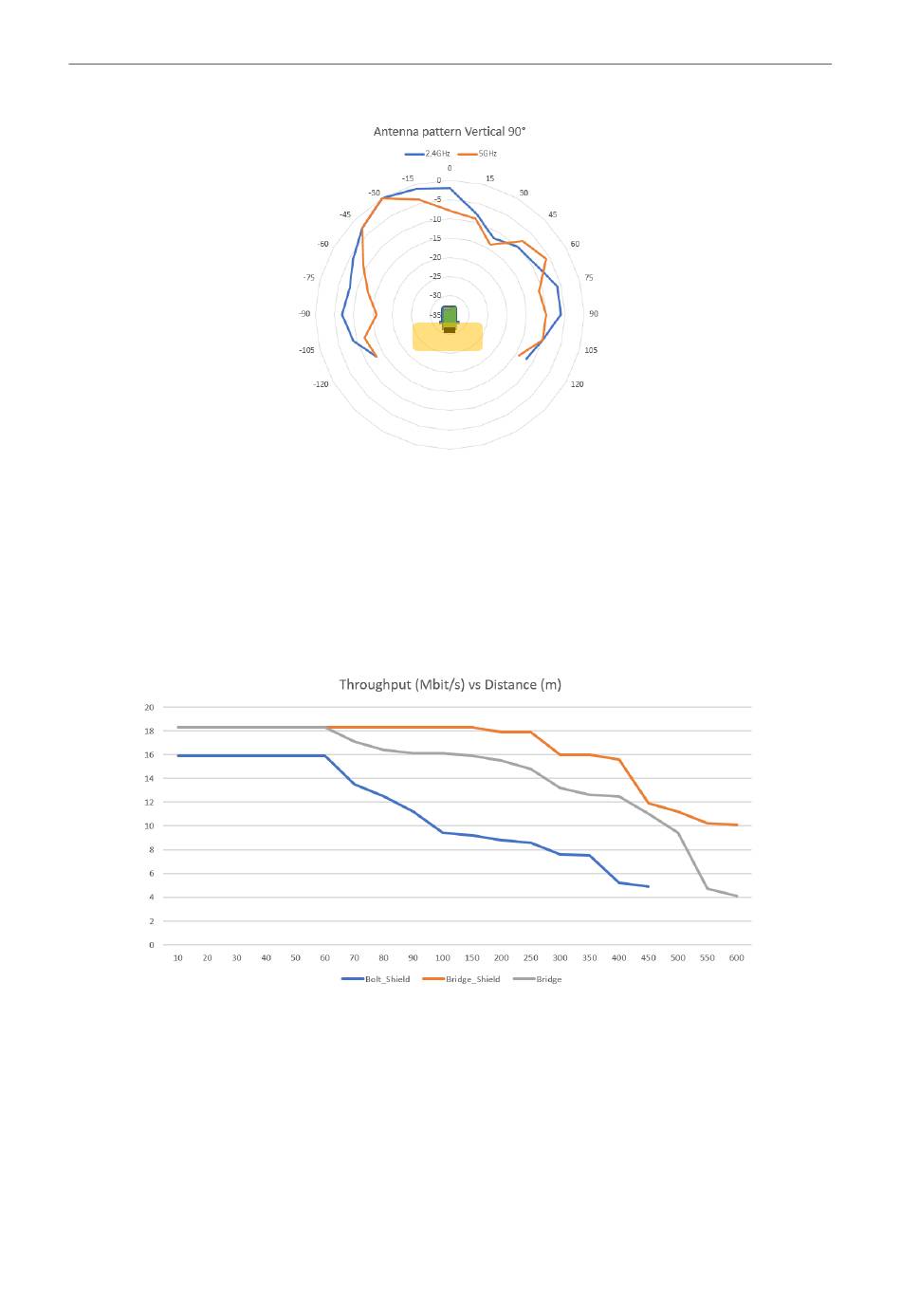

Throughput Diagram

This diagram shows how data throughput decreases when distance increases. Note the huge
difference between using a backshield to focus the radio energy, and not using a backshield.
Using a backshield can greatly increase radio coverage if used correctly.
The diagram covers both the Anybus Wireless Bolt and the Anybus Wireless Bridge when using
Wi-Fi (WLAN) 2.4 GHz.
® ™
