18 Connecting an External Monitor

An external monitor allows the user to display a variety of information screens on a
VGA-type video monitor. The screens available include:
Palette button labels
Desk Outputs
Memory / Chase Details
The current release / update notes
Tetris
18.1

Operation

The monitor can be controlled either using a keyboard or the console controls as
detailed below.
GM 100% 19:00:00
Keyboard Display
Alt F1 Not Used
Alt F2 Palette Labels
Alt F3 Memory Summary
Alt F4 Memory Detail
Alt F5 Patch Display
Alt F6 Page File Display
Alt F7 Outputs
Alt F8 Output DMX
Alt F9 Not Used
Alt F10 Current Release Notes
Show Menus on VDU
– to toggle option, + to Scroll
25/11/02
Identify Positions, Colours, Beams, etc
Output by Fader, Fixture, Scroller & DMX channel
Fader, Fixture & Scroller settings
--:--:--:--
Option
Open at:
Sort By:
Open with:
Open with:
Open with:
Open with:
Open at:
Arrow keys (<>) to Open.

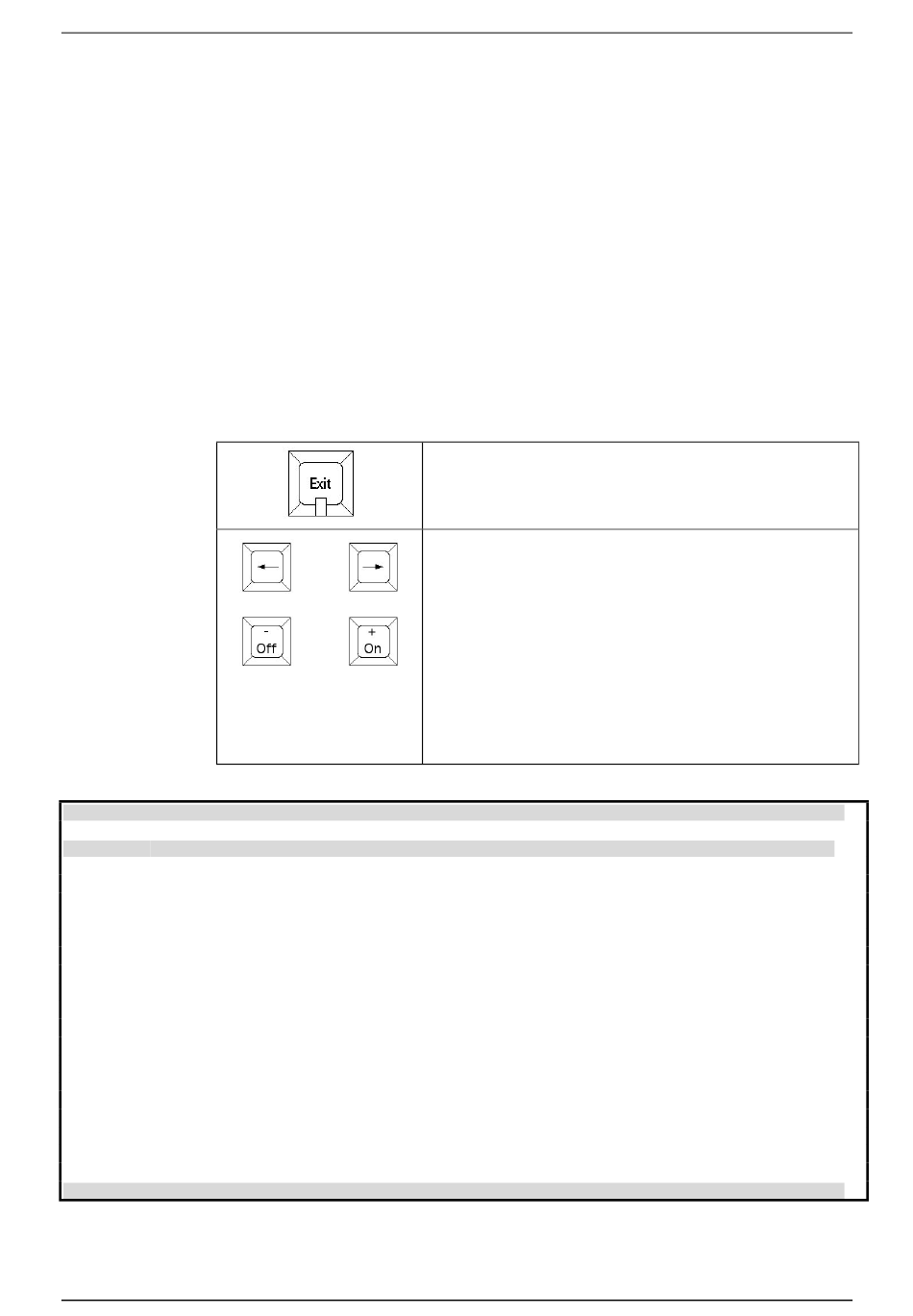

Press the Exit button to show the VDU selection screen –
As illustrated below
Press the + (On) to scroll vertically through the list of
screens.
Press the - (Off) to scroll horizontally between options.
The item highlighted in Red becomes the start screen for
this group.
Press the --> (Right Arrow) to open the selected screen.
Once any screen is open the arrow buttons will scroll
between screens, ignoring any groups set to None in the
selection screen.
JANDS Event 416
On
Number Next
Faders Fixtures
Faders Fixtures
Page Files
Faders Fixtures
On
On Off
Draft
Software Version 5.0
VDU Setup
Timecode None
Scrollers None
Scrollers None
None
Scrollers None
None
Exit for this menu
