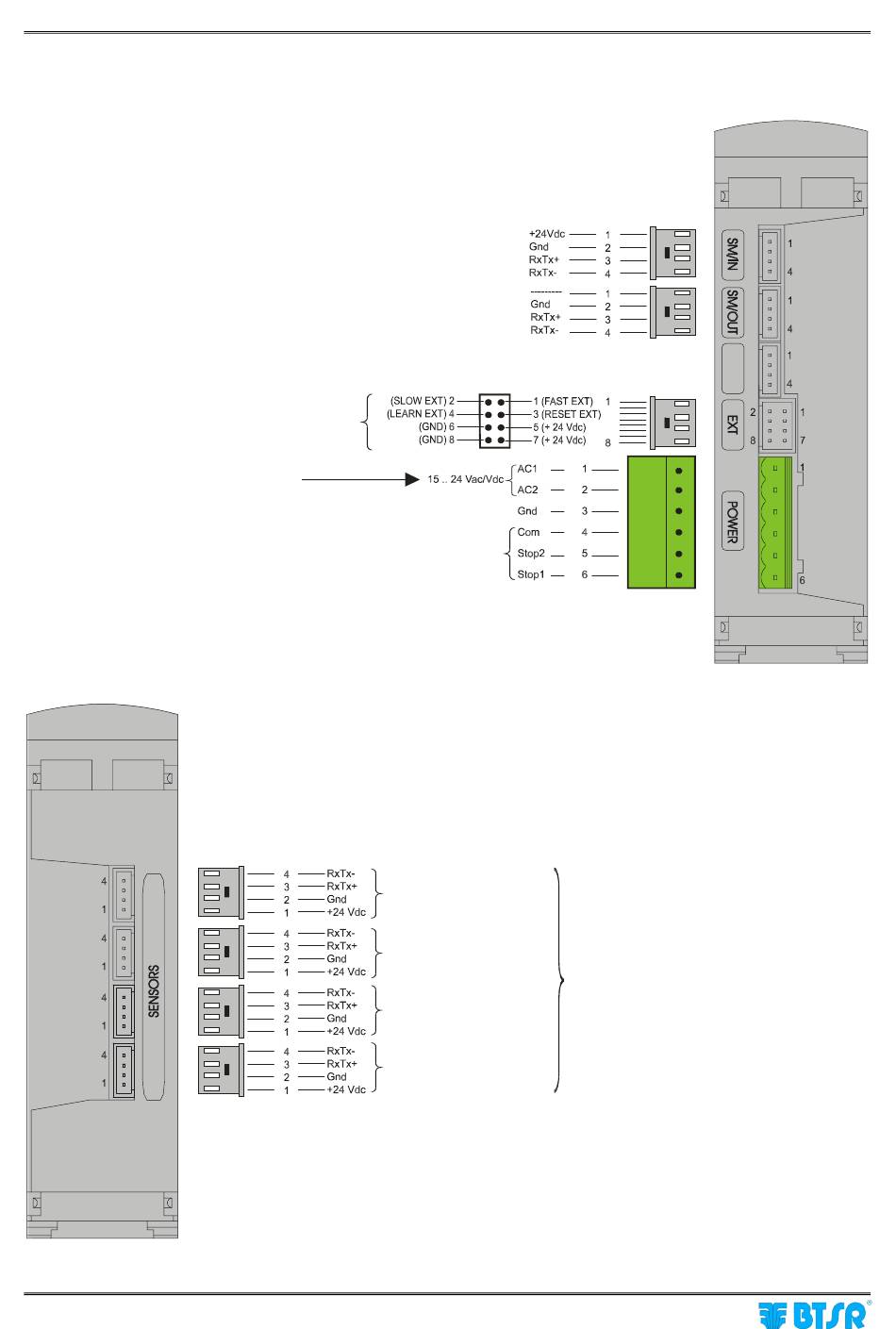

Electrical Interface
Machine Interface
Transformer
- 2.4 -
(INPUTS)
Machine Interface
(OUTPUTS)
SM-DIN module nn – (identified by means of Edt function directly on SM-DIN module)
Chain 1 - Sensors
Chain 2 - Sensors
Chain 3 - Sensors
Chain 4 - Sensors
SMART WARP
Technical Data and Installation
Max 100 sensors
identified by means of
Device function
(Setup → Config menu)
