FORWARD FUSELAGE DETAILS
NOTE: Use these photos as a guide for placement and organizing your particular brand of
R/C equipment.

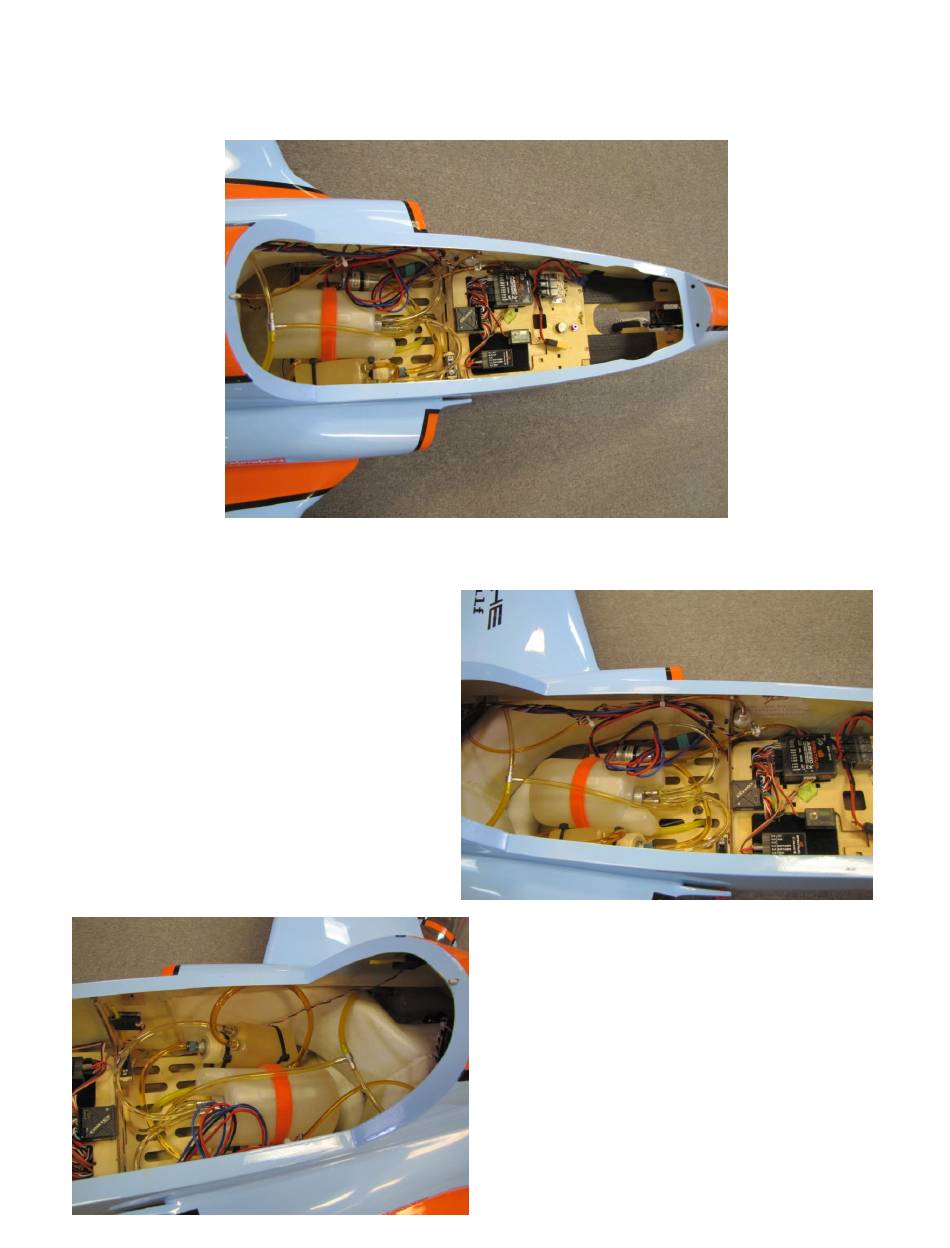

This is an overall view of the forward fuselage. See also alternate version a few pages back
View of left side aft 1/3rd of forward fuse.
See Header Tank with orange Velcro
strap, fuel pump, fuel tubing, and fuel filter
mounted vertical.
BVM®2017
in this manual.
View of right side. See Ultimate Air Trap,
remote receivers, and fuel tubing.
