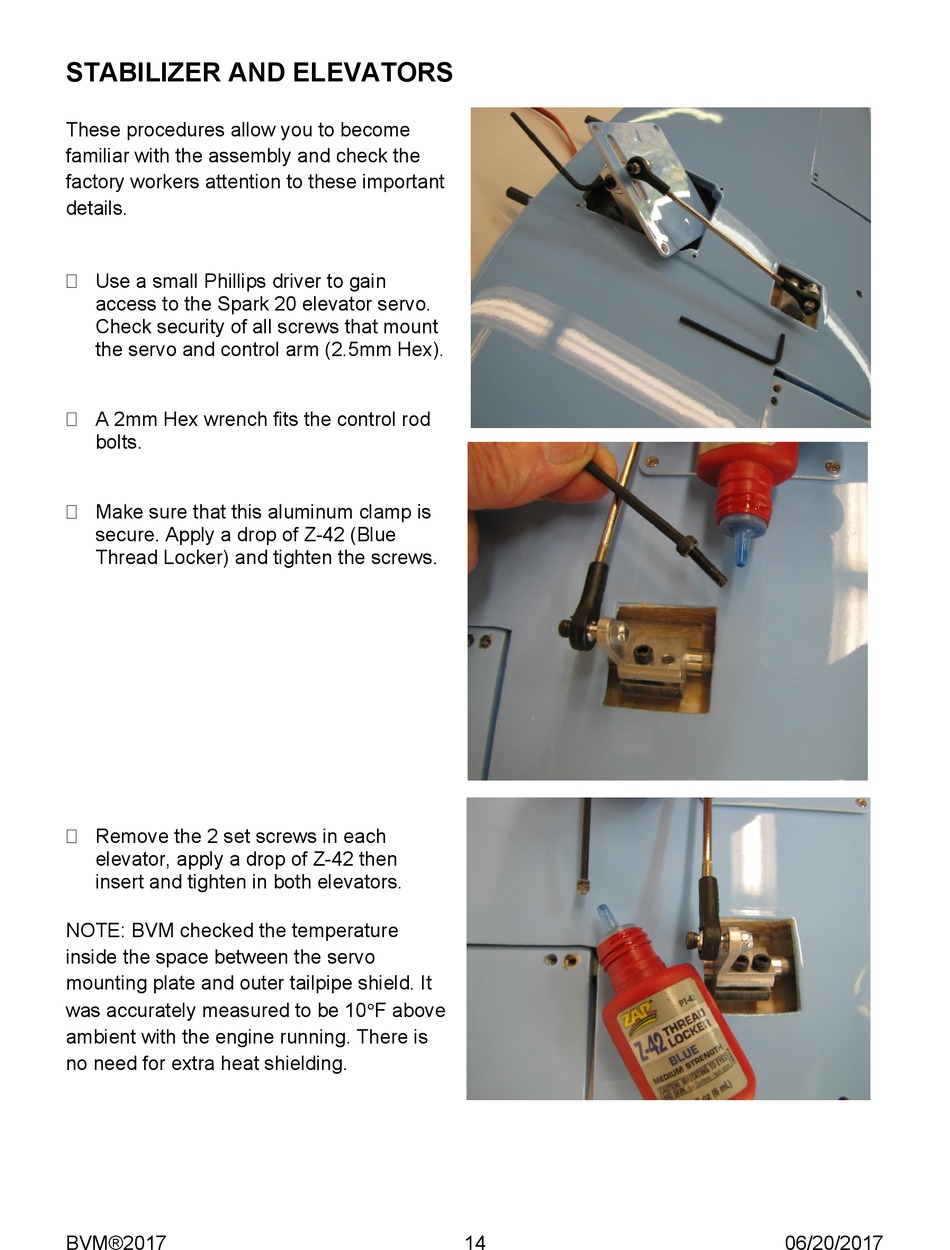

STABILIZER AND ELEVATORS

These procedures allow you to become
familiar with the assembly and check the
factory workers attention to these important
details.
Use a small Phillips driver to gain
access to the Spark 20 elevator servo.
Check security of all screws that mount
the servo and control arm (2.5mm Hex).
A 2mm Hex wrench fits the control rod
bolts.
Make sure that this aluminum clamp is
secure. Apply a drop of Z-42 (Blue
Thread Locker) and tighten the screws.
Remove the 2 set screws in each
elevator, apply a drop of Z-42 then
insert and tighten in both elevators.
NOTE: BVM checked the temperature
inside the space between the servo
mounting plate and outer tailpipe shield. It
was accurately measured to be 10F above
ambient with the engine running. There is
no need for extra heat shielding.
