Reflector Housing Assembly - ETC Source Four Assembly Manual

Reflector Housing Assembly

3
6
5
Reference
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
6
12
9
2
13
Part Description
Number
7060A3054 Housing, reflector casting, painted black
7060A3006 Clip, reflector retainer
7060A4010 Bushing, gate
7060A3016 Plate, clutch
7060A3019 Spring, reflector support
7060A4015 Reflector, molded glass, coated
7060A3058 Bracket, yoke, painted
HW8144 Handle, yoke knob, 5/16 - 18
HW753 Rivet, machine, 3/16 x .720, flat head, black zinc
HW5126 Washer, flat, 5/16, black zinc
HW5193 Bolt 5/16-18 x 3/4, black zinc
HW5125 Bolt, carriage, 5/16-18 x .75, black zinc
HW752 Rivet machine, 3/16 x 5/16, black zinc
7
1
8
10
11

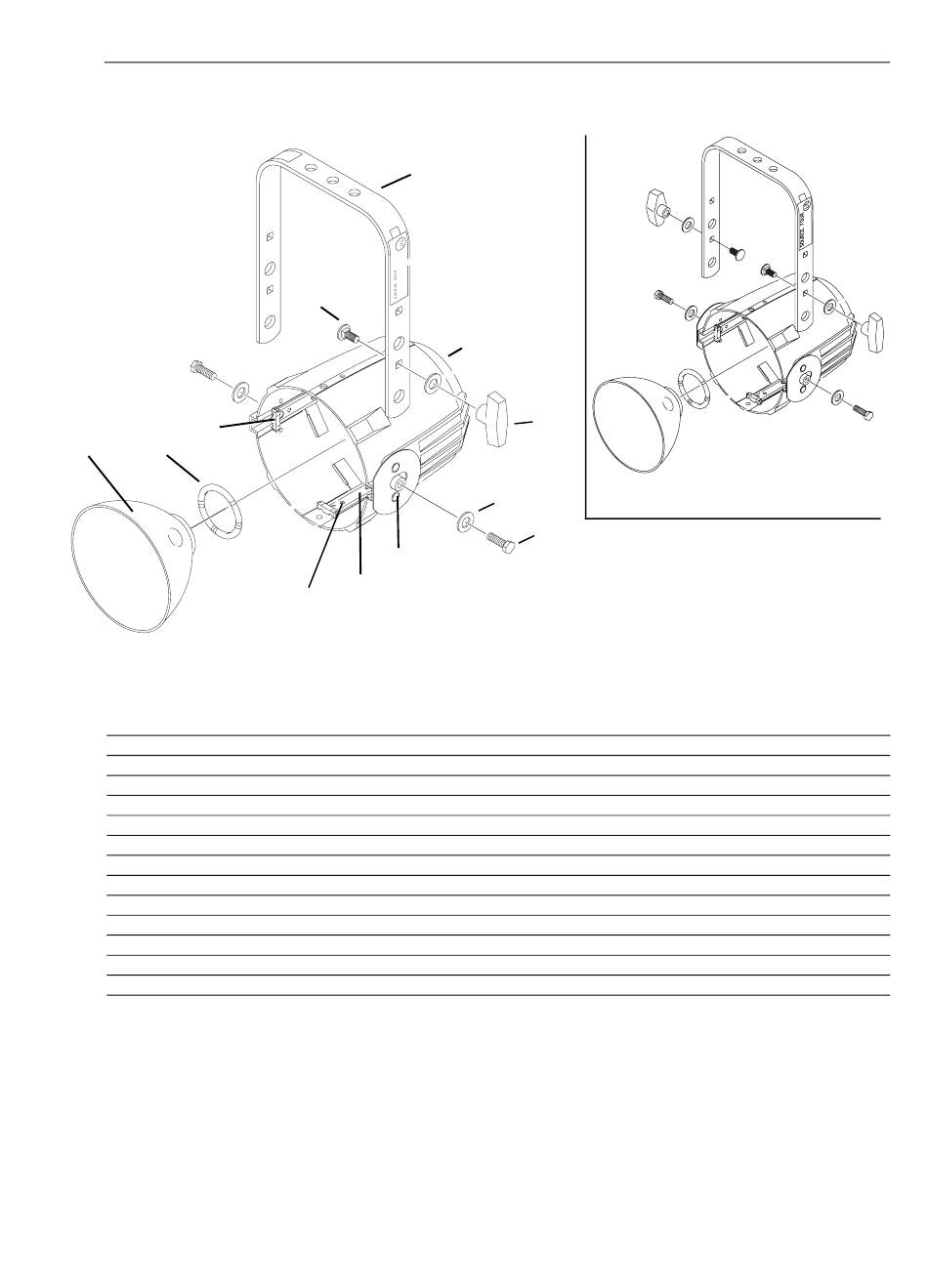

Figure 8
Double-clutch reflector housing
for 5°and 10° fixtures.
Source Four Assembly Guide
Quantity
Required
1
4
4
1
1
1
1
2
2
4
2
2
4
