5° Lens Tube - ETC Source Four Assembly Manual

5° Lens Tube
5
8
4
Reference
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
16
6
3
9
7
Part Description
Number
7060A3095 5° lens tube assembly, painted
7060A4009 Bushing, guide
HW750 Spring, retainer
HW6122 Bumper, recess rubber
7060A4024 Lens, 5°, 10"
7060A3079 Clip, gel retainer
HW307 Screw, 8-32 x .38 lg, SPHMS, black zinc
HW370 Nut, 8-32, 3/8, 1/4, black zinc
HW3104 Washer, .170 x .381 x .023, black zinc
HW8170 Handle, 10-32 inserts
7060A3073 Handle backing plate
HW467 Screw, 10-32 x 1/2 PHTRMS
HW443 Washer, .195 x .410 x .025 black zinc
HW5197 Screw, 1/4, 20x58 PHRMS, black zinc
HW5200 Washer, SH, .253 x .281 x .438, black zinc
7060A4008 Knob, Z lamp, with male insert
HW5143 Washer, Flt. 1/4, .252 x .500 x .060, FL
15
10
11
13
14
2
17
16
12
1

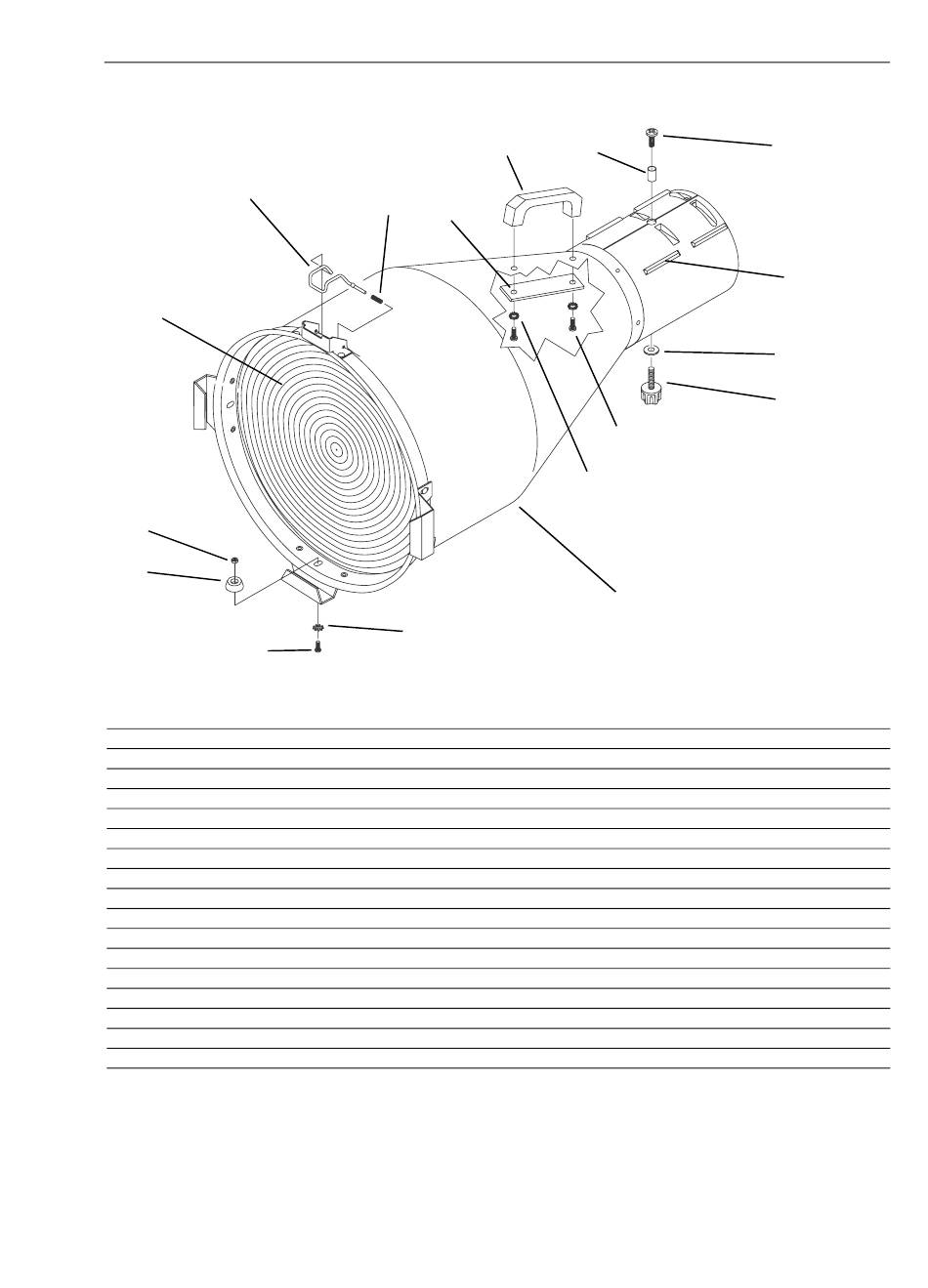

Figure 18
Source Four Assembly Guide
Quantity
Required
1
8
1
4
1
1
4
4
4
1
1
2
2
1
1
1
1
