I n s t a l l r e f l e c t o r
N o t e :
Step 1:
Step 2:
Step 3:
Step 4:
N o t e :
C l e a n r e f l e c t o r
Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth using alcohol or
distilled water (alcohol is recommended).
W A R N I N G :
8
The following assumes all four reflector retainer clips (2) have already been
riveted to the reflector housing casting (1) and the gate bushings (3) installed on
the retainer clips.
Place the reflector housing casting (1) on a flat work surface with the large
opening facing up.
Install the reflector support spring (5) in the circular opening at the base of the
casting.

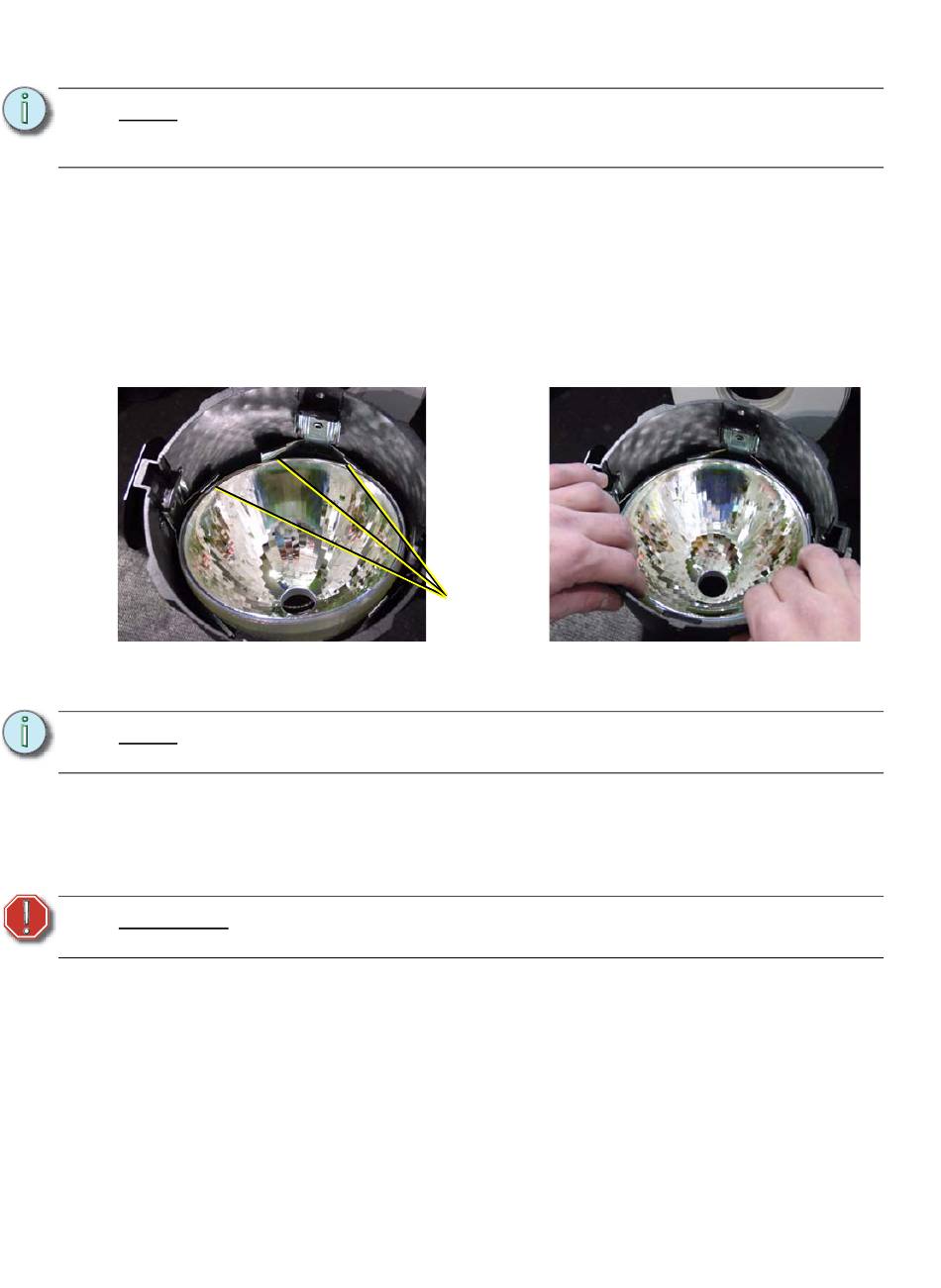

Insert the reflector (6) at an angle, under any three adjacent legs of the reflector's
clips.
Gently press down on the opposite side of the reflector until it snaps into place
under the remaining clips.
Step 3
If the reflector does not snap in, turn the casting over. Gently pull on the side of
the reflector that has not snapped in until the rest of the reflector slides into place.
Do not use glass and window cleaners on the reflector. Chemicals in these
cleaners will stain the reflector.
Under three
adjacent clips.
Step 4
