ETC User Manual
Source Four

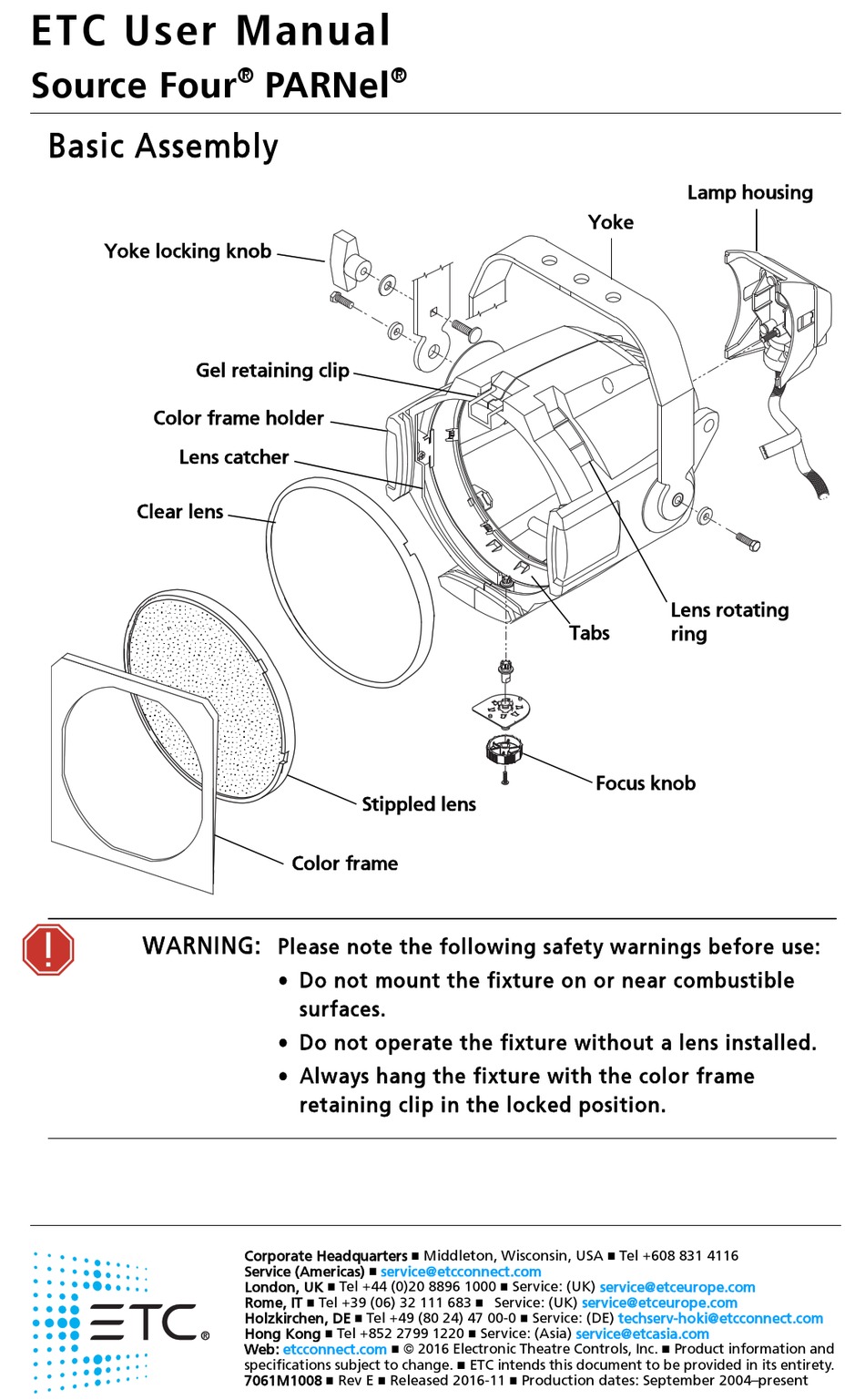

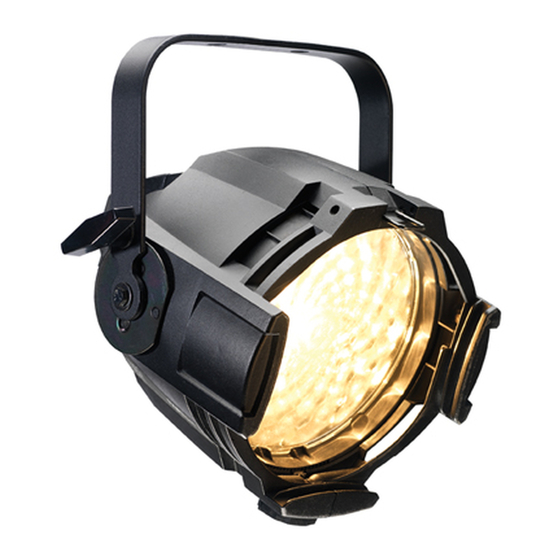

Basic Assembly
Yoke locking knob
Color frame holder
Lens catcher
Clear lens
WARNING:
®
PARNel
Gel retaining clip
Color frame
Please note the following safety warnings before use:
• Do not mount the fixture on or near combustible
surfaces.
• Do not operate the fixture without a lens installed.
• Always hang the fixture with the color frame
retaining clip in the locked position.
