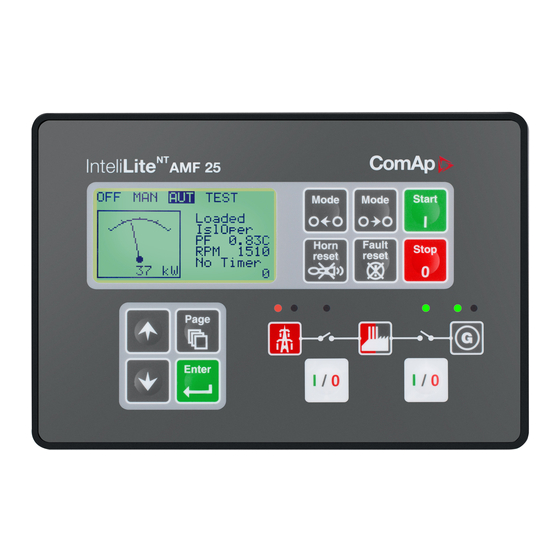

ComAp intelilite nt amf20 Reference Manual

Modular gen-set controller compact controller for stand-by operating gen-sets
Hide thumbs Also See for intelilite nt amf20:
Table of Contents

Advertisement

Quick Links

NT
InteliLite
InteliLite NT
Modular Gen-set Controller
Compact Controller for Stand-by Operating Gen-sets
(IL-NT AMF20/25 unit)
SW version 2.2, March 2016
Copyright © 2014 ComAp a.s.
Written by Petr Novák
Prague, Czech Republic
AMF
ComAp a.s.
Kundratka 2359/17, 180 00 Praha 8, Czech Republic
Tel: +420 246 012 111, Fax: +420 2 66316647
E-mail: info@comap.cz, www.comap.cz
Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the intelilite nt amf20 and is the answer not in the manual?

Questions and answers

Related Manuals for ComAp intelilite nt amf20

Summary of Contents for ComAp intelilite nt amf20

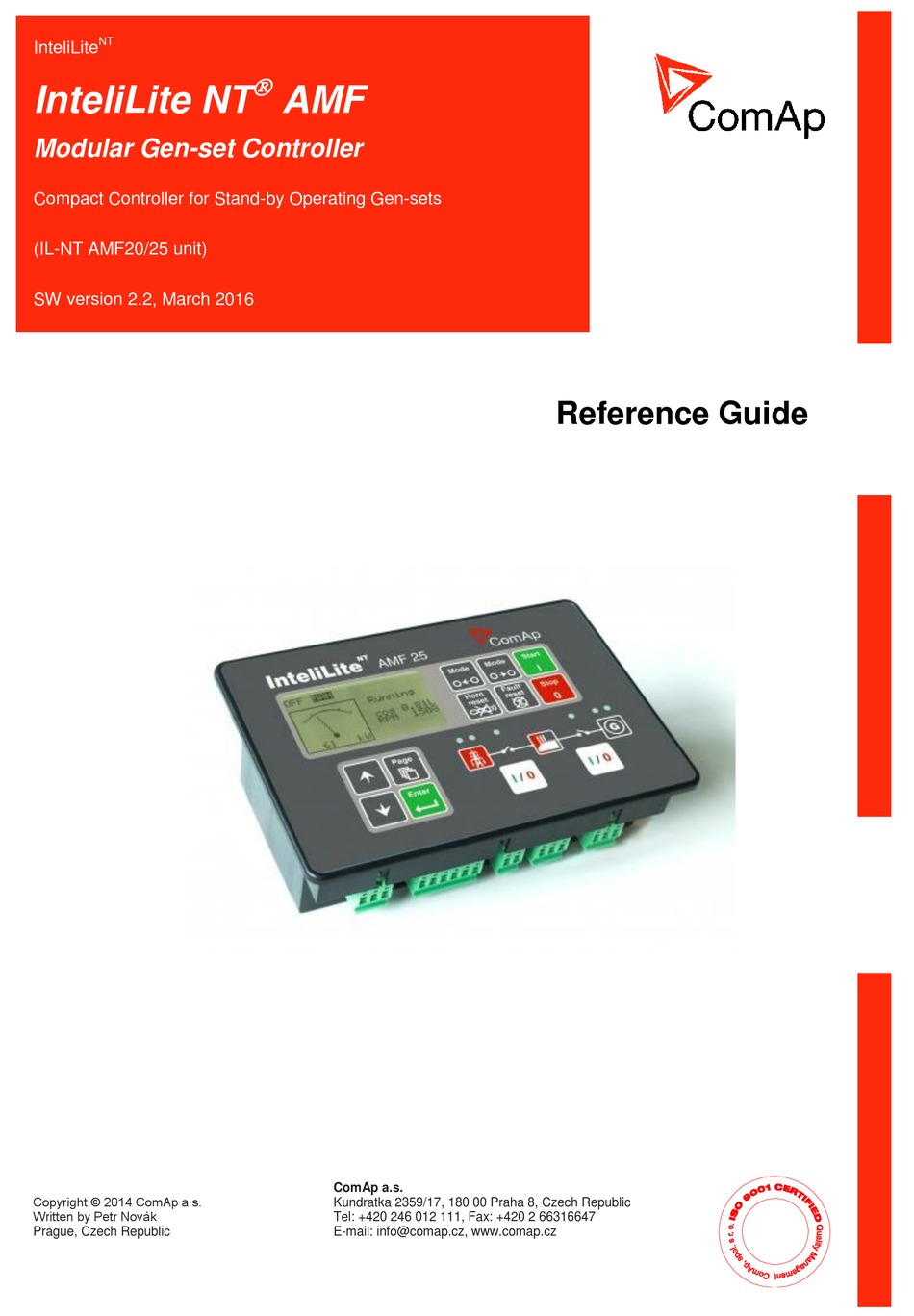

  • Page 1 (IL-NT AMF20/25 unit) SW version 2.2, March 2016 Reference Guide ComAp a.s. Copyright © 2014 ComAp a.s. Kundratka 2359/17, 180 00 Praha 8, Czech Republic Written by Petr Novák Tel: +420 246 012 111, Fax: +420 2 66316647 Prague, Czech Republic...

  • Page 2: Table Of Contents

    Binary outputs IL-NT - default ......................54 Binary outputs - list ..........................55 Analog inputs............................. 65 Analog outputs ..........................65 Setpoints ..............................66 Password ............................66 Basic Settings............................ 66 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 3 Modbus protocol ..........................127 Communication object list ....................... 127 IL-NT-RD Remote display software ....................132 Maintenance ............................137 Backup battery replacement ......................137 Technical Data ............................. 139 Inputs/Outputs overview ........................139 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 4 IL-NT AOUT8 interface (optional card) ................... 143 IC-NT CT-BIO7 interface (optional card) ..................144 IL-NT BIO8 interface (optional card) ....................144 IGS-PTM ............................145 IGL-RA15 ............................145 IG-IB ..............................145 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 5: General Guidelines

    Software IL-NT 1.3 is compatible with IL-NT hardware version 1.3 and older. Symbols Symbols used in this manual: Grounding AC voltage DC voltage point symbol symbol symbol – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 6: Text

    (Symbol * before text) valid only for IL-NT AMF 25 Note: ComAp believes that all information provided herein is correct and reliable and reserves the right to update at any time. ComAp does not assume any responsibility for its use unless otherwise expressly undertaken.

  • Page 7: General Description

    IL-NT RS232 is optional plug-in card to enable InteliLite for RS 232 communication. This is required for computer or Modbus connecting. Card inserts into expansion slot back on the controller. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 8 The following procedure is analogic also for other communication modules. 1. Insert a screwdriver into the slot of the cover. 2. Move the screwdriver to set apart the small cover. Be careful! 3. Remove the small cover. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 9 4. Break apart the small cover into two pieces. Do not throw away the smaller part! 5. Take RS 232 communication module. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 10 When you insert RS 232 communication module, the boot jumper is hidden. For that reason we recommend to use RS 232 communication module with the boot jumper placed on it. See pictures below: RS 232 communication module with the boot jumper. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 11: Il-Nt Rs232-485 Communication Plug-In Card

    Should you need to remove it, the safest way is to remove whole back cover and then remove module manually. RS485 RS232 Boot jumper and RS485 Terminator jumper – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 12: Il-Nt S-Usb Service Usb Communication Plug-In Card

    It is supposed to be used as a service tool. When you need to remove it, grab module in cutouts and pull it up manually. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite...

  • Page 13: Ib-Lite Ethernet Communication Plug-In Card

    Hint: Use the shielded USB A-B cable with this module! Recommended is ComAp cable – Order code: “ ”. USB-LINK CABLE 1.8M Please see chapter IL-NT S-USB interface (optional card) for technical details. Hint: Boot jumper programming – In case of interrupted programming or other software failure is possible to use the boot jumper programing to restore controller to working order.

  • Page 14: Il-Nt-Gprs Gsm And Gprs Plug-In Modem

    The communication module IL-NT GPRS works with:  – internet-based remote monitoring solution WebSupervisor  – powerful connection technology to make internet access as simple as possible AirGate – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 15: Il-Nt Aout8 Gauge Driver Module

    “extension module” slot and after installing IL-NT AOUT8 you do not put back the small cover. PC Installation Suite consist a set of prepared converting curves for basic usage of PWM outputs with automotive gauges. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 16 IL-NT AOUT8 module: Typical wiring Hint: Please see chapter IL-NT AOUT8 interface (optional card) for technical details. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 17: Il-Nt Bio8 Hybrid Binary Input/Output Module

    “extension module” slot and after installing IL-NT BIO8 you do not put back the small cover. Hint: Please see chapter IL-NT BIO8 interface (optional card) for technical details. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 18: Ic-Nt Ct-Bio7

    If IGL-RA15 remote annunciator is not communicating with a controller via CAN bus, it activates a warning. Hint: For connection details please refer to chapter Extension modules (CAN bus) connection. Please see the documentation of RA15 for the technical and function description. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 19: Ig Iom/Ptm Module

    - When module is not configured by LiteEdit SW, controller does not show related values and setpoints - If IGS-PTM is not communicating to a controller, ShutDown protection on controller is activated. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 20: Ig-Ib Internet Bridge

    See the documentation of IGS-PTM for the technical and function description. IG-IB Internet bridge IG-IB Internet bridge enables InteliLite for Ethernet/Internet communications. It is connected to controller via RS232 line. See InteliCommunication Guide for further details. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 21: Internetbridge-Nt

    Local Area Network. The internet connection can be enabled via the built-in cellular modem supporting 2G and 3G networks or via Ethernet cable. For InteliLite the following functions are available: Direct Ethernet connection to ComAp configuration and monitoring tools (LiteEdit, InteliMonitor or WebSupervisor) AirGate support...

  • Page 22: Il-Nt Terminals

    IL-NT Terminals IL-NT terminals and front face – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 23: Installation

    If sufficient sealing is not achieved at tightening torque of approx 0,1 Nm, further tightening may be counterproductive due to rising deformation of the door. Additional sealing or sealing with silicone should be used if necessary. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 24: Dimensions

    Dimensions Hint: Recommended mounting cutout size is 172 x 112 mm – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 25: Recommended Wiring

    Hint: MCB and GCB is recommended to be mechanically interlocked. It is possible to start Volvo and Scania engines via CAN bus. See Engines started via CAN bus. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 26: Stand-By Applications

    Stand-by Applications Contactors (set point MCB Logic = “CLOSE-OFF”) LOAD +24V(12V) ATS with two stable positions (set point MCB Logic = “CLOSE-ON”) LOAD +24V(12V) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 27: Ats With Three Stable Positions (Set Point Mcb Logic = "Close-Off")

    Detailed description: There is a basic communication interface between Master and Slave controller realized by interconnection of two wires (DualAMFCtrlIn, DualAMFCtrlOut) on both. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 28 5- Interconnect DualAMFCtrlOut from one controller with DualAMFCtrlIn on second controller. Interconnect DualAMFCtrlOut from second controller with DualAMFCtrlIn on first controller. So you have two wires interconnecting both controllers. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 29 10- System is now ready for DualAMF function. Wiring of system with selectable MASTER and SLAVE role settings: Hint: GCB and MCB breakers feedbacks are recommended, but not required. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 30: Getting Started

    Switchboard and engine has to be grounded in common spot. Use as short as possible cable to the grounding point. Power supply To ensure proper function: Use min. power supply cable of 1.5mm – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 31 Voltage before dip is 12V, after 150ms the voltage recovers to min. allowed voltage, i.e. 8V Hint: Before the battery is discharged the message "Low BackupBatt" appears. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 32 Fuse value and type depends on number of connected devices and wire length. Recommended fuse (not fast) type - T1A. Not fast due to internal capacitors charging during power up. IL-NT HUGE Battery LOADS STARTER – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 33 Binary output protections Hint Do not connect binary outputs directly to DC relays without protection diodes, even if they are not connected directly to controller outputs. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 34: Current Measurement

    If engine will not start: Check ground connection from pick-up to controllers, eventually disconnect ground connection to one of them Galvanically separate InteliLite RPM input using ComAp separation transformer RPM-ISO (1:1) Use separate pick-up for Speed governor and InteliLite Hint:...
  • Page 35 The current measurement protections are active only when the Genset is running. Hint: If the CT Location is set to Load the Short Crct BOC protection is enabled only when GCB is closed. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 36: Earth Fault Measurement (Module)

    Earth Fault Del then Earth Fault Sd protection and AL EarthFault output are activated. Earth Fault protection is not active when gen-set does not run and also when Protection: DISABLED. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 37: Voltage Measurement And Generator Connection Types

    Split Ph – Ph-N voltage  Mono Ph – Ph-N voltage ConnectionType: 3 Phase 4 Wires Three phase “wye” measurement – 3PY 3 Phase 4 Wires - STAR Connection – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 38 N (neutral) wire (in the diagram connected between T6 and T9) has to be disconnected. No separation transformers for three wires voltage connection (without N) are needed. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 39 IL-NT1.5! Picture above shows connection for IL-NT 1.5. Wiring for older firmwares is described in older IL-NT manuals, line L1 was connected to all three terminals L1,L2 and L3. Mono Phase – MONOPHASE Connection Hint: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 40: Analog Inputs

    Each Analog input has separate set points for two level alarm setting. Analog input alarm levels and delay adjust in Extension I/O and Engine Protect group. Hint: Description of Sensor fail evaluation can be found in chapter Alarm Management, article Sensor Fail (FLS). – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 41 HW versions do not have “COM” terminal and use only 3 pins AI1, AI2 and AI3. Wiring Wiring diagrams of analog inputs since IL-NT HW 1.3: WIRING OF ANALOG INPUTS-GROUNDED SENSORS – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 42 WIRING OF ANALOG INPUTS-ISOLATED SENSORS Wiring diagrams of analog inputs for IL-NT HW 1.1 and older: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 43 To ensure a proper function use shielded cables, especially for length over >3m. COM terminal is dedicated to measure ground voltage potential difference between engine and controller. As binary input Open, close state are detected, threshold level is 750 . – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 44 VDO 40-120 °C Set to: When you choose the predefined or user curve the Sensor Name, Dim and Resolution are set automatically according to curve, user modification is possible. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 45 AI 0-10V.CRV 680Ω [5%,2W] 100Ω [1%,0,5W] 0 - 30V AI 0-30V.CRV 1500Ω [5%,3W] 100Ω [1%,0,5W] 0 - 65V AI 0-65V.CRV 4 – 20mA R = 160Ω [1%,0,5W] AI 4-20mA.CRV – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 46: Binary Inputs And Outputs

    In this case you can change the value at row 6. from 5 to 3. When you finish with adjusting the values click OK and Write to controller. Binary inputs and outputs 4k7  Power Supply Battery – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 47: Recommended Can/Rs485 Connection

    A, B, COM; shielding connect to PE in one point C) In case of surge hazard (connection out of building in case of storm etc.) – picture 3 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 48 Addr.: in13 Addr.: in1 out1 out7 Picture 3 - surge hazard (connection out of building in case of storm etc.) 120 Ω 120 Ω PT5-HF-12DC-ST (CAN) PT5HF-5DC-ST (RS485) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 49: Extension Modules (Can Bus) Connection

    IL- NT – IGS-PTM – IGL-RA15 It is possible to connect only one IG-IOM or IGS-PTM and one IGL-RA15 to IL-NT. button in LiteEdit configuration window to activate CAN (J1939) interface with ECU. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 50: Inputs And Outputs

    IL-NT controller can work even without breaker feedbacks, in this case do not configure the feedback to binary inputs. For more details see chapters Circuit breakers timing GCB, MCB fail detection. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 51 If closed, IL-NT is switched to OFF mode (there are four modes OFF-MAN-AUT-TEST). When opens controller is switched back to previous mode. Hint: The Remote OFF has higher priority than Remote MAN, AUT, TEST. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 52 Function is active in any controller mode. Start Button Binary input has the same function as Start Button on the InteliLite front panel. It is active in MAN mode only. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 53 Stand-by Application. Lang Selection Not configured Language selection is done only through the controller display. Pressing ENTER and PAGE buttons concurrently and then only PAGE button separately. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 54: Binary Outputs Il-Nt - Default

    Binary outputs IL-NT - default Starter Fuel Solenoid GCB Close/Open MCB Close/Open Prestart Ready To Load Alarm Hint: The description of binary outputs of a controller relates also to IOM/PTM modules. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 55: Binary Outputs - List

    Starting RPM. A Start Fail protection occurs if the RPM drop below 2RPM during idle. Hint: Connect binary output “Idle/Nominal” to speed governor to switch the speed: opened = IDLE, closed=NOMINAL. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 56 The output activates Mains Circuit Breaker coil. MCB Off Coil The output deactivates Mains Circuit Breaker coil. MCB UV Coil The output controls Mains Circuit Breaker coil after voltage drop-out. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 57 The output closes prior to the engine start (by Prestart Time) and opens at the beginning of cranking time. In case of repeated crank attempts the output closes always prior to the other engine start attempts (by Prestart Time) and is opened during crank attempts. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 58 Engine Params. Typical usage for this binary output can be activation of fans or heaters. The output behaves based on the setpoint adjustment as described on picture lower: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 59 Control output for Mutual Standby Application. This binary output of controller 1 must be configured and interconnected with binary input DualAMFCtrlIn of controller 2 for correct Mutual Standby function Mode OFF The output is closed, if OFF Mode is selected. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 60 FAULT RESET is pressed AL Gen <Freq Output closes if the generator under frequency alarm activates. The output opens, if  alarm is not active and  FAULT RESET is pressed – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 61 Output closes if the gen-set underspeed alarm activates. The output opens, if  alarm is not active and  FAULT RESET is pressed AL Start Fail Output closes after the gen-set start-up fails. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 62  FAULT RESET is pressed AL AI1 Sd Output closes if the engine oil pressure (configured to the first analog input) shutdown alarm activates. The output opens, if – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 63 The outputs give an information about the assigned binary input. In case the assigned binary input is configured to alarm type, then the output closes when the alarm activates. It opens if – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 64 This binary output is activated when the controller is stopping the engine (in the same time when Fuel Solenoid is deactivated). The setpoint Louver Time defines a period of activation. When the new starting sequence is initiated LBO Louver is automatically deactivated. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 65: Analog Inputs

    PWM signal emulates sensor which would be typically mounted on the engine. Any value from controller may be configured to the outputs. Use LiteEdit PC SW to configure corresponding sensor/gauge curve and value selection. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 66: Setpoints

    See Gener Protect: *Amps IDMT Del, Short Crct Sd setpoints. Nominal Current can be different from generator rated current value. Step: Range: 1 - 10000 A CT Ratio [/5A] Gen-set phases current transformers ratio. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 67 3200kVA on any phase or total kVA or equivalent of 3200kW on any phase or in total kW. For no decimal displayed are the same conditions with limits of 65000A, 32000kVA and 32000kW. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 68 Mains potential transformers ratio. Step: 0,1 V / V 0,1 – 500,0 V / V Range: NomVolts Ph-N Nominal generator voltage (phase to neutral) Step: 80 – 20000 V Range: Hint: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 69 For more details about connection types see Voltage measurement and generator connection types chapter. For details about influence of Connection type setting on voltage values in history check History file chapter. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 70: Comms Settings

    Otherwise leave this setpoint blank. ModbusComSpeed [9600,19200, 38400, 57600] If the Modbus mode is selected on COM1 or COM2 channels, the Modbus communication speed in bps can be adjusted here. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 71 ComAp PC program (i.e. InteliLIte, InteliMonitor). This setpoint should be adjusted to 23, which is the default port used by all ComAp PC programs. A different value should be used only in special situations as e.g. sharing one public IP address among many controllers or to overcome a firewall restrictions.
  • Page 72 AirGate IP This setpoint is used for entering the domain name or IP address of the AirGate server. Use the free AirGate server provided by ComAp at address airgate.comap.cz if your company does not operate its own AirGate server. SMTP User Name Use this setpoint to enter the user name for the SMTP server.

  • Page 73: Engine Params

    During the Idle time timer running the binary output Idle/Nominal is opened when it elapses the Idle/Nominal output closes. Binary output Idle/Nominal opens during Cooling period again. Step: 0 – 600 s Range: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 74 Under normal conditions the engine must certainly stop 10s before this period will exceed. The period starts by issuing stop command. Step: 0 – 600 s Range: Hint: „Stop engine“ conditions For more details see chapter in chapter Gen-set Operation states – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 75 3. Change the setpoint ECU FreqSelect and confirm it by pressing Enter 4. Press the Stop button on the IL controller. The whole procedure (step 2 to 4) must not exceed 10 seconds. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 76 The description of Power Switch function is in chapter Binary outputs - list Power Switch. FuelTankVolume Define a capacity of Genset fuel tank. Step: 1 – 10000l Range: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 77: Engine Protect

    Range: -10 – 1000 AI1 Sd [ Bar] Shutdown threshold level for ANALOG INPUT 1 Step: 0,1 bar Range: -10 – 1000 AI1 Del Delay for ANALOG INPUT 1 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 78 Counts down when engine running. If reaches zero, an alarm appears. When the value 10000 is set, than the Maintenance function is disabled and counter does not count. Counter value disappear in controllers statistics. Maximum value for running countdown is 9999. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 79: Gener Protect

    Igen is maximal value of all measured phases of generator current. EXAMPLE of Reaction time for different over current levels. Values in column 200% are IDMT Curr Del. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 80 Threshold for generator undervoltage. All three phases are checked. Minimum out of three is used. Step: 1% of Nominal voltage 0% – 200 (Gen >V Sd)% Range: Hint: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 81: Amf Settings

    When SLAVE or MASTER is selected the controller will perform Dual Mutual Standby function. Hint: MASTER or SLAVE can be also defined by binary input DualAMFRole with higher priority than Operation Mode setpoint. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 82 Mains >V Threshold for mains overvoltage. All three phases are checked. Maximum out of three is used. Step: 1% of Nominal voltage 50 (Mains <V) – 150% Range: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 83 The set point influences the behavior of the output MCB CLOSE/OPEN CLOSE-ON: When the output MCB CLOSE/OPEN is closed – MCB should be closed. CLOSE-OFF: When the output MCB CLOSE/OPEN is closed – MCB should be opened. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 84 3) When the mains recovers: a) After the MainsReturnDel the controller opens the GCB b) After the Transfer Del delay the controller closes the MCB. 4) The gen-set remains running. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 85: Extension I/O

    -1000 – +1000 Range: Date/Time Some of parameters in this group are only available at specific models of IL-NT. *Time Stamp Per [min] Time interval for periodic history records. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 86 MONDAY, TUESDAY, WEDNESDAY, THURSDAY, WEDNESDAY, FRIDAY, SATURDAY, SUNDAY: Timer is activated on daily basis. MON-FRI, MON-SAT, SAT-SUN: Timer is activated on selected day interval. *Timer1..2 ON Time Day time when Timer output activates. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 87: Sensors Spec

    The list of all supported terminals shows the table below: Active alarm Active event Active alarm Active event Terminal email email IB-Lite IB-NT yes* IL-NT-GPRS supported supported *since IB-NT 2.2.0 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 88 -  and  for - particular number/character change Particular numbers/character can take values: from “0” to “9”, “a” to “z”, various symbols and empty space. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 89: Alternate Cfg

    DELTA Connection, 3 Phase without neutral - 3 Wires, Three phase “delta” measurement – 3PD, 3x CT‘s Split Phase: DOUBLE DELTA Connection, Split Phase, Single-phase measurement – 1PH, 1xCT Mono Phase: MONOPHASE, – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 90: Earthfaultprot

    The minimum value 0% is equal to 90% of nominal speed. Maximum value 100% is equal to 110% of nominal speed. *EarthFaultProt Hint: More information is available in Earth fault Measurement chapter. EF Protection [ENABLED/DISABLED] This setpoint can block or allow Earth fault Current protection. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 91 Shutdown threshold level for Earth Fault current. Step: 0,01 A 1 – 500 A Range: EarthFault Del Earth Fault current measurement delay. Step: 0,01s 1 – 5s Range: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 92: Ecu-Controlled Engine Support

    The actual list of ECU types is available on ComAp website in "ECU list - x.y.iwe" package. Download this package and import it into LiteEdit in the same way as standard firmware IWE package.

  • Page 93: Identifying Configured Ecu

    Fuel rate (frame Fuel Economy)  Boost pressure (frame Inlet/Exhaust Conditions)  Intake manifold 1 temperature (frame Inlet/Exhaust Conditions)  Engine oil temperature 1 (frame Engine Temperature 1) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 94: Diagnostic Messages Read From Ecu

     SAE Truck and Bus Control and Communications Network Standards Manual, SAE HS-1939 Publication  Or refer to corresponding engine manufacturer’s ECU error codes list. Complete list of text diagnostic messages for each ECU can be found in ComAp Electronic Engines Support manual. Hint: InteliLite controller doesn’t support J1587 diagnostic line on Volvo engines.

  • Page 95: Connection Description

    The following diagrams show how to connect the engine control unit to the InteliLite controller: Engines with J1939 support started via CAN bus VOLVO PENTA engines (EMS II, EDC III units) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 96 REMOTE OFF ACCESS LOCK EMERGENCY STOP MAINS C.B. FEED-BACK GEN C.B. FEED-BACK CONTROL SIGNALS ALARM READY TO LOAD PRESTART MAINS C.B. GEN C.B. + 24 V DC FUEL LEVEL – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 97 MAINS C.B. GEN C.B. GND ( PIN 20) RS 485 - ( PIN 18) RS 485 + ( PIN 21) TERM2 ( PIN 19) TERM1 ( PIN 22) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 98: Sensor Specification

    VDO Fuel % Hint: You can find detail information on sensors in LiteEdit Reference Guide and details about sensor fails in this manual in chapter Alarm Management Sensor Fail (FLS). – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 99: Function Description

    < 10V, D+ not Active no shutdown alarm active, other than OFF Mode selected Prestart Prestart time elapsed STARTER on Cranking FUEL SOLENOID on MaxCrank Time counter started – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 100 The start-up sequence can be interrupted in any time by coming stop request Fuel solenoid is switched on with time advance of 1s fixed before starter motor is switched on. Hint: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 101: Aut Mode

    When the AMF function will start the engine than the engine will be running at least for the time which is defined in MainsReturnDel setpoint, even if the mains would return in the meantime. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 102: Test Mode

    Mains fail is detected as Mains <V, Mains >V, Mains V Unbal, Mains <Freq, Mains >Freq. After detection MCB is opened. Hint: When MCB feedback drop-out and measured mains electrical limits (voltage, frequency) are still in limits, the controller switches MCB ON again. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 103 Mains cut: MCB opens (according 1.) , GCB closes (Transfer Del) Situation 2: ReturnFromTEST=MANUAL, Mains =OK, MCB is closed, gen-set is running. Press MCB on/off -> MCB opens, GCB closes (Transfer Del), gen-set is running loaded. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 104 MCB opened GCB closed Fwd Return Del – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 105: Alarm Management

    Alarm outputs and common shutdown output are activated. Active or not acknowledged protection disables gen-set start. Possible BOC alarms: List of possible events – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 106: Shut Down (Sd)

    There is fix defined phase sequence in InteliLite controller L1, L2, L3. When the phases are connected in different order (e.g. L1,L3,L2 or L2,L1,L3) following alarms are detected: Gen CCW Rot = wrong generator phase sequence Mains CCW Rot = wrong mains phase sequence – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 107 You can solve state of MCB fail by pressing Fault Reset button. Generally it is possible to use IL-NT controller without feedback inputs (not configured). Controller will work with breakers anyway. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 108: Gen-Set Operation States

    Any of these conditions will disconnect starter of the engine, however for transition to next state RPM needs to be higher than Starting RPM. “Engine running” conditions RPM > 2 RPM or Analog input Oil pressure > Engine params: Starting POil or – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 109 Stop Solenoid 10 s Engine run Output Stop Fail Warning Cooling Time RPM / Frequency Oil Pressure Generator voltage Fuel Solenoid is opened Stop Time Gen-set stoped Stop Time – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 110: List Of Possible Events

    Wrn Stop Fail Gen-set stop failed. See description at Gen-set Operation States chapter. Sd Gen Lx >V The generator voltage is out of limits – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 111 The protection is active if the output Sd Override is closed. GCB Fail Failure of generator circuit breaker. MCB Fail Failure of mains circuit breaker. Sd RPMMeasFail Failure of magnetic pick-up sensor for – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 112: History File

    Vg3 = Gen. Ph-Ph voltage L3-L1 2. For 3Ph3Wire: a. Vg1 = Gen. Ph-Ph voltage L1-L2 b. Vg2 = Gen. Ph-Ph voltage L2-L3 c. Vg3 = Gen. Ph-Ph voltage L3-L1 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 113 IG-IOM, IGS-PTM Analog input 1 value (when configured IG-IOM, IGS-PTM) AIM2* IG-IOM, IGS-PTM Analog input 2 value (when configured IG-IOM, IGS-PTM) AIM3* IG-IOM, IGS-PTM Analog input 3 value (when configured IG-IOM, IGS-PTM) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 114 IG-IOM, IGS-PTM Binary inputs (when configured IG-IOM, IGS-PTM) BOM* IG-IOM, IGS-PTM Binary outputs (when configured IG-IOM, IGS-PTM) Earth fault current *Depends if enabled in configuration (see more details in LiteEdit-4.4-Reference Guide.pdf) – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 115: Init Screens

    Last value displayed on screen is DiagData, which is internal ComAp information is case of FW or unit problems, which helps ComAp to analyze the root cause and find a proper solution.

  • Page 116: Remote Control And Data Logging

    Hint: Refer to InteliCommunication guide for all additional information. PC software - LiteEdit On the PC (for direct or modem connection) has to be installed the ComAp’s software package LiteEdit. (based on Windows 95 or newer platform) LiteEdit enables: read the quantities...

  • Page 117: Modem Connection

    MODEM MODEM Ethernet RS232 LAN / WAN / RJ45 IL-NT RS232 IL-NT RS232-485 INTERNET ANALOG MODEM RS232 IL-NT RS232 IL-NT RS232-485 ANALOG ANALOG MODEM MODEM ODEM CONNECTION TYPES – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 118: Internet Connection

    Use a plug-in communication module IB-Lite IL-NT-GPRS to connect to the IC-NT SPtM controller via the internet. The setpoint COM1 Mode must be set to the DIRECT position. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 119: Ib-Lite

    The default settings of the module are IP = 192.168.1.254, Netmask = 255.255.255.0 and Gateway = 192.168.1.1. The default password for service webpages is “comap” (or “0”). To restore the default settings, close the “restore default setting” jumper located on the module before switching the controller on and remove it few seconds after the controller has been switched on.

  • Page 120: Il-Nt-Gprs

    Power supply shall be switched on also is same time to both module and controller. Fail to follow these instructions (power supply active only in controller or only in module) can lead to module or controller failure! – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 121 1. You will need one of supported ComAp controllers (IL-NT/IC-NT/ID-Lite), IL-NT-GPRS, antenna, SIM card with GPRS service and optionally IL-NT-RS232 or IL-NT-S-USB module. F 2. Contact SIM card operator for getting GPRS APN (APN = Access Point Name) name, username and password. Example: APN Name = internet.t-mobile.cz, UserName = [blank], Password = [blank].
  • Page 122 However the system is designed in the way that controller will automatically reconnect back.  GSM Diag Code – Diagnostic code for IL-NT-GPRS modem Table of Diagnostic Codes: – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 123 Closing MCB in MAN and TEST mode (only in IC-NT SPTM). mcb open Opening MCB in MAN and TEST mode (only in IC-NT SPTM). Switching to OFF mode. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 124 Test On Load Message structure (e.g.): Genset Name [hh:mm:ss dd.mm.yyyy] hh:mm:ss Mains Fail hh:mm:ss AMF Start hh:mm:ss Load on Genset hh:mm:ss Mains Returned hh:mm:ss Parallel Oper. hh:mm:ss Load on Mains – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 125: Internetbridge-Nt

    Read only: Binary inputs Binary outputs Ubat Analog inp. 1 CU Analog inp. 2 CU Analog inp. 3 CU ControllerMode Gen V L1-N – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 126 Please refer to IB-Lite New features list for more information about SNMP support. Firmware version 2.1 and lower For SNMP protocol support it is possible to use converter Modbus RTU - SNMP with ComAp order code “GNOME SNMP CONVERTER IL-NT”.

  • Page 127: Modbus Protocol

    Basic Settings Nominal Freq 8278 Unsigned 16 Basic Settings Gear Teeth 8252 Unsigned 16 Basic Settings Nominal RPM 1500 8253 4000 Unsigned 16 Basic Settings ControllerMode 8315 String list – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 128 Integer 16 Engine Params TempSwitch ON 8688 -100 10000 Integer 16 Engine Params TempSwitch OFF 8689 -100 10000 Integer 16 Engine Params PowerSwitch ON 11658 32000 Integer 16 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 129 AMF Settings Transfer Del 8303 Unsigned 16 AMF Settings MCB Close Del 8389 Unsigned 16 AMF Settings Mains >V 8305 Unsigned 16 AMF Settings Mains <V 8307 Unsigned 16 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 130 12053 20000 Unsigned 16 Alternate Cfg NomVoltsPh-Ph2 12056 40000 Unsigned 16 Alternate Cfg Nomin Current2 12050 10000 Unsigned 16 Alternate Cfg Connect Type 2 3Ph4Wire 12059 String list – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 131 Unsigned 16 Mains Mains V L2-L3 9632 Unsigned 16 Mains Mains V L3-L1 9633 Unsigned 16 Mains Mains Freq 8211 Unsigned 16 Controller I/O Battery Volts 8213 Integer 16 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 132: Il-Nt-Rd Remote Display Software

    Remote display software works as “remote display and control” for the master InteliLite-NT or InteliDrive Lite controller. Genset/Engines can be controlled from remote display as well as from – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 133 Be sure you have checked all setpoints before. AUTION Check the statistic value "Engine hours" after firmware upgrade. Change of statistical values if necessary is possible only by LiteEdit software (password is required). – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 134 It is recommended to use standard Null-modem cable for local connection between controller and remote display, although the three wires (TxD, RxD, GND) RS 232 connection is enough for direct communication: IL-NT/ID-Lite IL-NT-RD connector connector D-SUB9 female D-SUB9 female – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 135 Remote Display 2 Case 1) RS232 Master controller settings: ControllerAddr = 1..32 COM1 Mode = DIRECT Case 2) RS485 Master controller settings: ControllerAddr = 1..32 COM2 Mode = DIRECT – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 136  All ID-Lite standard software from ver. 1.0  Chosen IL-NT and ID-Lite customer branches Some of the future IL-NT, ID-Lite versions may require upgrade of the IL-NT-RD software. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 137: Maintenance

    4. The battery is located in a holder on the circuit board. Remove the old battery with a small sharp screwdriver and push with a finger the new battery into the holder. Use only CR1225 lithium battery. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...
  • Page 138 Time and Date values are set not valid value  Statistics values are random  Timers (Timer1..2 Function) will not be executed  Fuel theft protection may not work – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 139: Technical Data

    ** With optional plug-in module Y – Available N – Not available Generator protections ComAp gen-set controllers provide following range of generator protections. For each protection adjustable limit and time delay are available. Comparison table with ANSI codes: ANSI IL-NT...

  • Page 140: Power Supply

    Preheating starts at temperature below 5 C and preheating power depends on temperature and power supply voltage. Technical data IL-NT Standard Order code:IL-NT-AMF25 LT Operating temperature C..+70 C..+70 Storage temperature C..+80 C..+80 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 141: Dimensions And Weight

    Max voltage level for open contact indication 8-36 VDC Binary open collector outputs Not electrically separated Number of outputs Maximum current 0,5 A Maximum switching voltage 36 VDC – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 142: Analog Inputs

    3105A Paired EIA Industrial RS485 cable LAPP CABLE (see http://www.lappcable.com)  Unitronic BUS DeviceNet Trunk Cable  Unitronic BUS DeviceNet Drop Cable  Unitronic BUS CAN  Unitronic-FD BUS P CAN UL/CSA – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 143: Il-Nt Rs232 Interface (Optional Card)

    With SW version IL-NT 1.2 and older, the communication speeds are 19.2kBd (STD/DIRECT), 19.2kBd Analog modem, 9.6 kBd digital modem, 9.6kBd (MODBUS) IL-NT AOUT8 interface (optional card) Plugs into IL-NT controller EXTENSION MODULE port. Number of PWM outputs – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 144: Ic-Nt Ct-Bio7 Interface (Optional Card)

    Maximum switching common current Maximum switching voltage Hint: Binary inputs are not galvanically isolated. Please see detail about wiring and description at chapter IL-NT BIO8 Hybrid binary input/output module. – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

  • Page 145: Igs-Ptm

    95 x 96 x 43 mm, DIN rail (35 mm) mounted Interface to controller RS232 Interface to modem RS232 Interface to Ethernet RJ45 (10baseT) Operating temperature -30..+70 Storage temperature -30..+70 – AMF20/25, SW version 2.2, ©ComAp – September 2014 InteliLite IL-NT-AMF-2.2-Reference Guide.pdf...

This manual is also suitable for:

Intelilite nt amf25

Table of Contents

Save PDF
