U-Line H-2532 Mounting Instructions

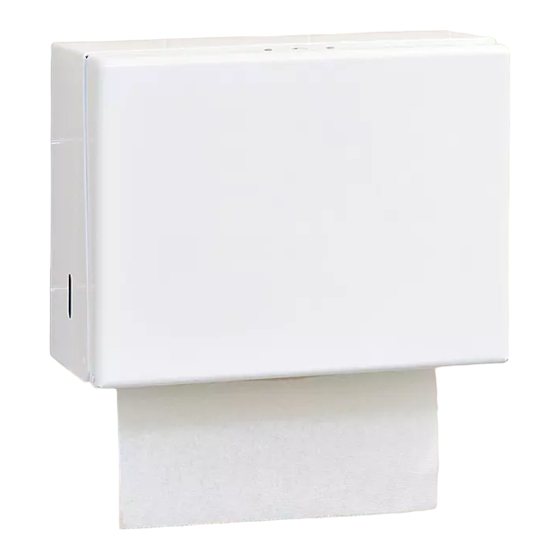

Single-fold towel dispenser
Hide thumbs
1
2

Advertisement

Table of Contents

π
H-2532
SINGLE-FOLD
TOWEL DISPENSER

TOOLS NEEDED

Drill
1/4" Drill Bit
Dispenser x 1
NOTE: Ensure that proper mounting hardware
is used for appropriate wall composition.
Enclosed hardware may not be compatible
with wall surface.
1.
Insert key into the lock opening on top of dispenser
and turn clockwise to open cover. (See Figure 1)
Figure 1
PAGE 1 OF 2
1-800-295-5510
uline.com
Phillips Screwdriver
Level
Key x 1
MOUNTING INSTRUCTIONS
Side Lens
Tape Measure

PARTS

Wall Anchor x 4
2. Open dispenser cover and hold dispenser to ideal
mounting place on wall. (See Figure 2)
Figure 2
Screw x 4
0320 IH-2532

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-2532 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line H-2532

Summary of Contents for U-Line H-2532

  • Page 1 π H-2532 1-800-295-5510 uline.com SINGLE-FOLD TOWEL DISPENSER TOOLS NEEDED Drill 1/4" Drill Bit Phillips Screwdriver Level Tape Measure PARTS Wall Anchor x 4 Screw x 4 Key x 1 Dispenser x 1 MOUNTING INSTRUCTIONS NOTE: Ensure that proper mounting hardware 2.
  • Page 2 MOUNTING INSTRUCTIONS CONTINUED 3. Mark the four holes on the wall where screws will be 4. Drill into wall at four marked locations with 1/4" drill inserted. (See Figure 3) bit. (See Figure 4) Insert wall anchors if necessary. Figure 3 Figure 4 Recommended Mounting Locations 5.
