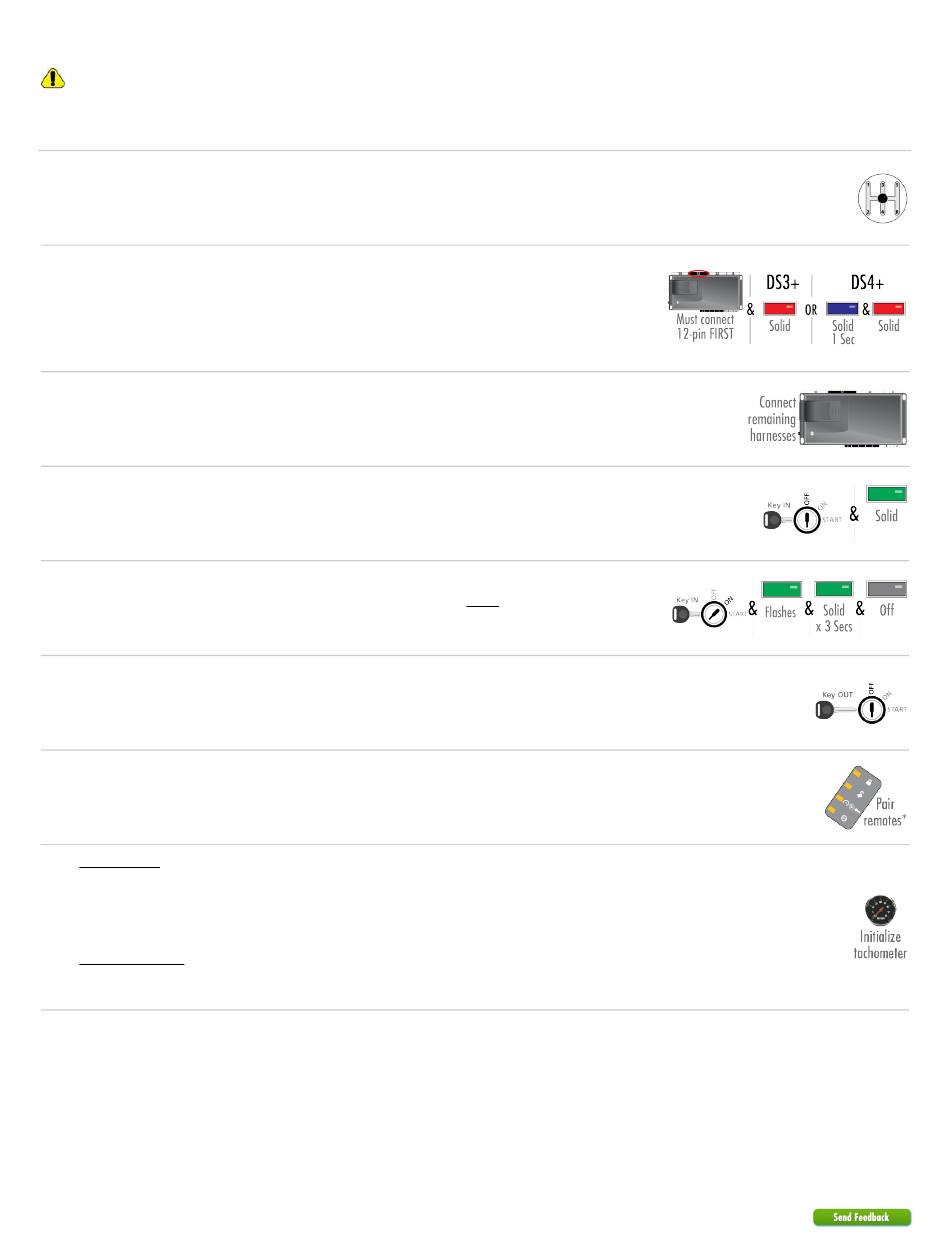

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

With transponder and CAN

(For security-only programming, see next section.)
Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the
gearshift lever is in the neutral position.
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
3
Connect the remaining harnesses to the module.
4
Insert the key in the ignition switch. The LED turns ON solid green.
Turn the key to the ON position. The LED will flash green once then turns ON solid for
5
3 seconds then shuts OFF.
6
The module is now programmed. Remove the key from the ignition barrel.
Pair remotes (if applicable). For information on how to pair a specific remote, please
7
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
DATA Tach: Firmware using DATA Tach, the tachometer is preprogrammed for the
vehicle and no further action is required. For instructions on how to adjust tach or use
Virtual tach, refer to "Initialize Virtual Tach" (not needed with hardwired or data tach
applications).
8
Hardwire Tach: Firmware using the Violet/White Hardwire Tach input will require
programming. For instructions on how to program or adjust tach or use Virtual tach,
refer to "Initialize Virtual Tach" (not needed with hardwired or data tach applications).
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
14
933.TL11 1.12.193.2 2009 Toyota RAV4
