Prorack PR3206 Instructions

First Time Installation

• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks and luggage basket or tray prior to fi tting the Spare Wheel Restraint.

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage.
• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a roof rack specialist.

Tools Required

• Screwdriver

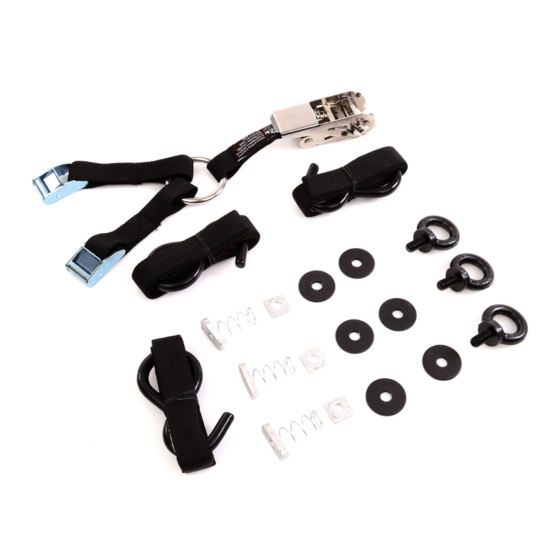

Kit Contents

Item Component
1 Strap 3 Way Assembly
2 Hook & Strap Assembly (1.3 m)
3 M10 Eye Bolt
4 M10 Washer
5 M10 T-Nut
6 M10 Spring Nut
Installation with Prorack HD, Tradesman and Other Heavy Duty Crossbars
1
Load the spare tyre onto the tray/basket
and position it centrally between two
crossbars.
09-13-566-Rev3

Spare Wheel Restraint

Qty
1
3
3
6
3
3
2
1
2
5
Position two M10 spring nuts on the front bar
and one on the rear. Push down into crossbar
channels and twist spring nuts to lock into
place.
Rear Bar
Front Bar
PR3206
3
4
6
Page 1 of 4
