- Page 1 PR3074 Load Holder Fitting Instructions for Basic Carrier Revision No: 3C...
-
Page 2: First Time Installation

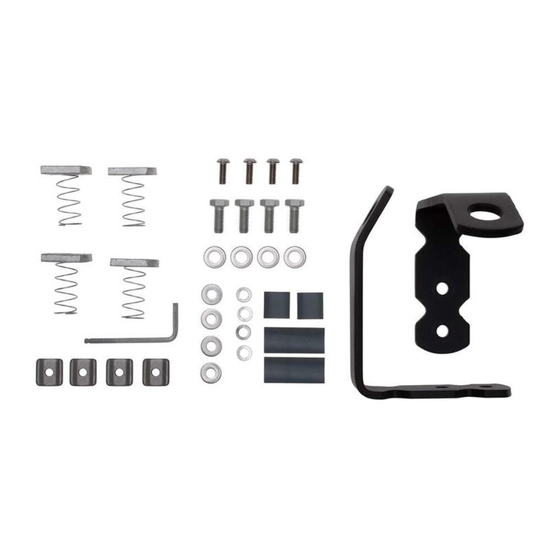

Load Holder PR3074 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A , B and D only. Cut grey protective strip to size. Apply as... - Page 3 Load Holder PR3074 For type A and B crossbars only. For type A, remove cover with keys. For type B, unfasten security screw with an Hex Key and lift the accessory tab up. Push down rubber infill.
- Page 4 Load Holder PR3074 Slide square nut along channel. Position where you want the accessory to Repeat for all four positions. Assemble as shown. Ensure spring washer (B) is between standard washer (C) and the head of the screw (A),...
- Page 5 Load Holder PR3074 Attach capscrew with the Hex Key. Do not fully tighten. Repeat for both holders. Tighten all screws. For type D and Tradesman crossbars only. Place spring nut into crossbar channel. Position where you want the accessory to Push down and twist spring nut to lock into place.
- Page 6 Load Holder PR3074 Repeat for all four positions. Place washer (B) between the load holder (C) and the head of the bolt (A). Repeat for both holders. Screw the bolt into the nut to secure the load holder.
-
Page 7: Maintenance
Load Holder PR3074 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 8 Load Holder PR3074 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 9: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 10 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
