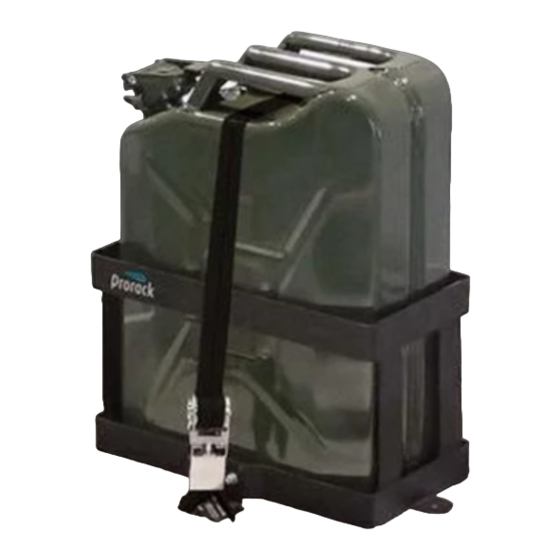

Prorack PR3205 Instructions

FiRST Time inSTallaTion
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks and cargo tray prior to fitting the Prorack Fuel Container Holder.
imPoRTanT WaRninG!
IT IS CRITICAL THAT ALL PRORACK RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED
TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND
COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE
FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR
TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED
WITH YOUR PRORACK PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL
OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT
INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A ROOF RACK SPECIALIST.

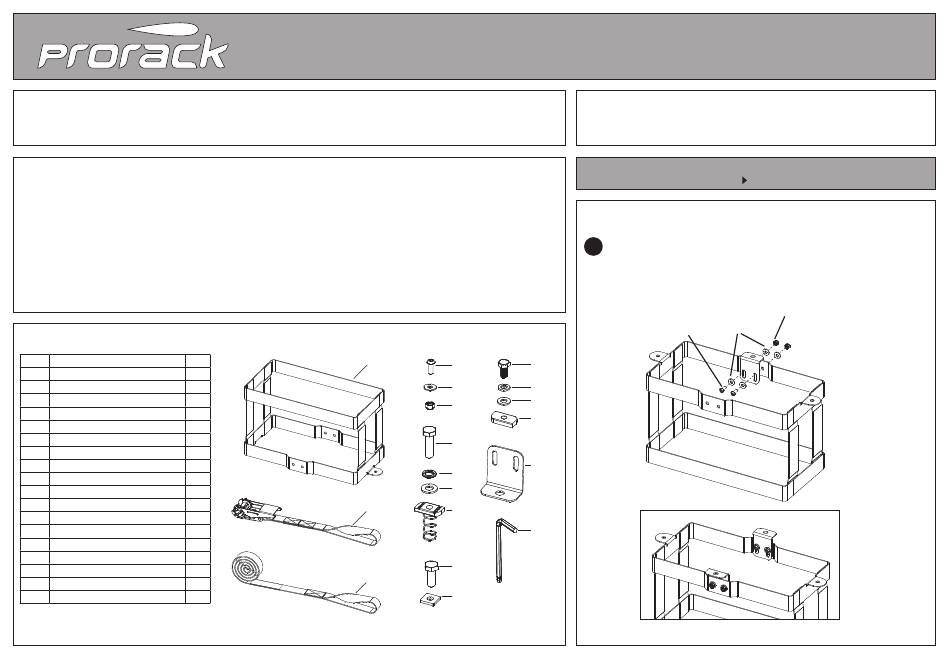

KiT ConTenTS
item Component qty
1 Fuel Container Holder
2 Ratchet & Short Webbing Strap
3 Long Webbing Strap
4 M6 Capscrew Button Head
5 M6 Washer
6 M6 Nylock Nut
7 M10 x 25mm Set Screw
8 M10 Spring Washer
9 M10 Washer
10 M10 Spring Nut
11 M10 x 20mm Set Screw
12 M10 T-Nut
13 M8 x 16mm Set Screw
14 M8 Spring Washer
15 M8 Washer
16 M8 T-Slot Nut
17 Holder Mounting Bracket
18 4mm Allen Key
09-13-565 Rev 1
PR3205 Fuel ContaineR HoldeR inStRuCtionS
1
1
1
1
4
8
4
2
2
2
2
2
2
2
2
2
2
2
3
2
1
ToolS RequiRed
• Allen Key (provided)
• 13mm/16mm Spanner
• 16mm Socket + Socket Wrench (for dual side-by-side installation)
inSTallinG Fuel ConTaineR holdeR on To a CaRGo TRay
WiTh T-SloT ChannelS
inSTallaTion inTo CRoSSbaR ChannelS
Turn the fuel container holder upside down and fit both
1
mounting brackets on to the long side of the holder.
Ensure brackets are fitted on the inside of the holder and that
the screw heads face inwards. Tighten capscrews with Allen key
to 4-5Nm.
4 13
5 14
15
6
16
7
17
8
9
10
18
11
12
GO TO STEP 7
M6 Nylock Nut
M6 x 16mm
M6 Washer
Capscrew
Page 1 of 5
