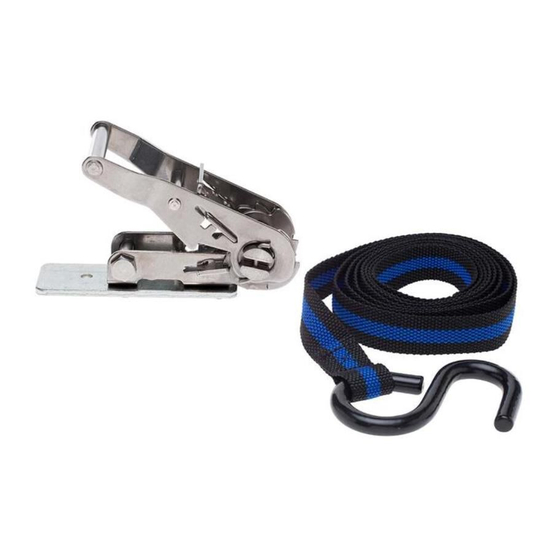

- Page 1 PR3075 Ratchet Grab Fitting Instruction for Accessory Revision No: 4C...
-
Page 2: First Time Installation
Ratchet Grab PR3075 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A , B and D only. For type A and B crossbars only. - Page 3 Ratchet Grab PR3075 For type B, unfasten security screw with an Hex Key and lift the accessory tab up. Select pack A. Push down rubber infill. Slide 2x square nuts along channel. Position where you want the accessory to...
- Page 4 Ratchet Grab PR3075 Ensure spring washer (B) is between standard washer (C) and the head of the 16mm screw (A). Position the ratchet so that the handle faces outboard of the vehicle. Use 4mm Hex Key to attach ratchet grab to nuts with 2x 16mm screws.
- Page 5 Ratchet Grab PR3075 Push down and twist spring nut to lock into place. Ensure spring washer (B) is between standard washer (C) and the head of the 20mm screw (A). Position the ratchet so that the handle faces outboard of the vehicle.
- Page 6 Ratchet Grab PR3075 Using the webbing To attach webbing, thread it through the slot in the ratchet barrel. To wind webbing, work the handle back and forth. To release webbing, put handle into fully open position and pull webbing.
-
Page 7: Maintenance
Ratchet Grab PR3075 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 8 Ratchet Grab PR3075 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 9 Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 10 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
