Prorack PR3205 Instructions Manual

First Time Installation

• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks and cargo tray prior to fi tting the Fuel Container Holder.

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage.
• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a roof rack specialist.

Tools Required

• Allen Key (provided)
• 13 mm/16 mm Spanner
• 16 mm Socket + Socket Wrench (for dual side-by-side installation)

Kit Contents

Item Component
1

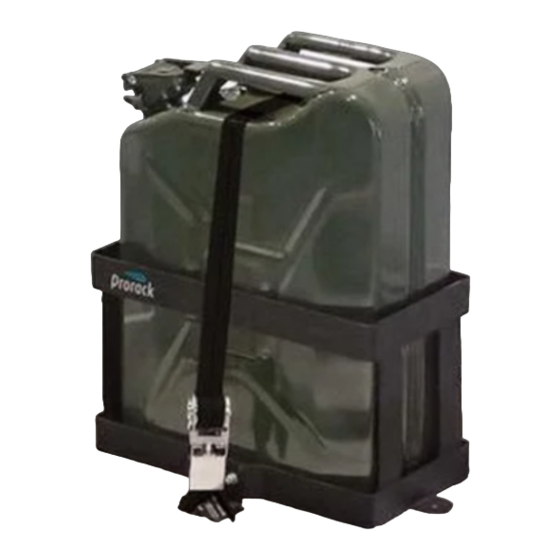

Fuel Container Holder

2 Ratchet & Short Webbing Strap
3 Long Webbing Strap
4 M6 Capscrew Button Head
5 M6 Washer
6 M6 Nylock Nut
7 M10 x 25 mm Set Screw
8 M10 Spring Washer
9 M10 Washer
10 M10 Spring Nut
11 M10 x 20 mm Set Screw
12 M10 T-Nut
13 M8 x 16 mm Set Screw
15 M8 Spring Washer
15 M8 Washer
16 M8 T-Slot Nut
17 Holder Mounting Bracket
18 4 mm Allen Key
PR3205
09-13-565-Rev2
Fuel Container Holder
Qty
1
1
1
4
8
4
2
2
2
2
2
2
2
2 17
2
2
2
1
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Page 1 of 6
