Caution
•
Tie down long or wide loads at the front and rear of the vehicle with non-elastic straps. If it looks like it can catch
some air, it will. TIE IT DOWN!
•
When loading your surf gear or kayak, ensure that it is mounted correctly using the tie downs provided and is
positioned centrally, parallel to the vehicle.
•
Check straps periodically during travel and tighten if necessary. Replace any straps that are worn or frayed before
using (see your Prorack dealer).
Important Warning
•
It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper
attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
•
You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and
periodically inspecting the products for adjustment, wear, and damage. Therefore, you must read and understand all
of the instructions and cautions supplied with your Prorack product prior to installation or use.
•
If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not
thoroughly familiar with the installation procedures, you should have the product installed by a professional installer
such as a boat carrier specialist.
Kit Contents
Item
Component
1
Saddle
2
Heavy Duty Strap
3
Pad
4
Hook
5
Rope
2
09-13-575 Rev3

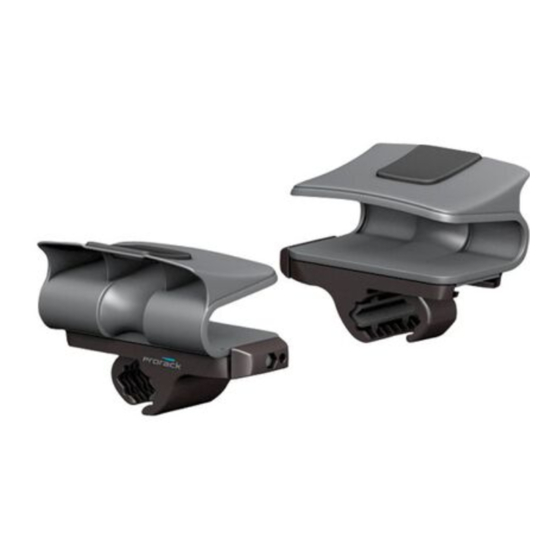

PR3108 Kayak Carrier
This product is designed to work with Pro-
Qty
rack Aero, Standard, Trade and other Round
4
Bars.
2
4
2
2
1
Minimum Crossbar
Spread 61 cm
4
Max Load 36 kg
3
5
Page 1 of 6
Advertisement
Related Manuals for Prorack PR3108
Summary of Contents for Prorack PR3108
- Page 1 Important Warning • It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.
- Page 2 Put saddle on roof rack bars. Install pads Open the clamp wide enough to fit around Place your saddle onto the roof rack your roof rack bars. bars. Install the four pads. Press each pad into place. Use one pad for each saddle. Tighten clamp Close Clamp Tighten the clamp completely.
- Page 3 Key features: flexible saddles The Kayak Carrier is designed to flex and conform to your boat when you tighten the straps. Keep this in mind as you adjust position in the next step, and prepare to tie down your boat. EXAMPLE A EXAMPLE B Here the shape of the hull will cause the...
- Page 4 Attach the other hook to rear of vehicle Attach one hook to front of vehicle Secure front and rear of kayak to vehicle Attach ropes to grab handle or rescue bar and pull tight. Securely tie off ends to create even pressure between front and rear. Bind up and secure excess rope. Page 4 of 6 09-13-575 Rev3...
-
Page 5: Safety Checks
Attachment hardware can loosen over time: - Check straps periodically during travel and tighten if necessary. - Replace any straps that are worn or frayed before using (see your Prorack dealer). • Some longer loads may prevent the rear hatch from fully opening. - Page 6 Prorack Freephone 17 Hinkler Court, Brendale AU: 1800 143 548 www.prorack.com.au QLD 4500, Australia NZ: 0800 4776 722 www.prorack.co.nz ALL CONTENT SUBJECT TO YAKIMA AUSTRALIA PTY LTD COPYRIGHT © 2014 Page 6 of 6 09-13-575 Rev3...
