Prorack PR3213 Manual

FIRST TIME INSTALLATION
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your Tray prior to fitting the Accessory Mounts.
• Use caution when handling rails and slats, sharp edges may be present.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL PRORACK RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN
AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND
ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR PRORACK PRODUCT PRIOR TO INSTALLATION OR USE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE
INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A ROOF RACK SPECIALIST.

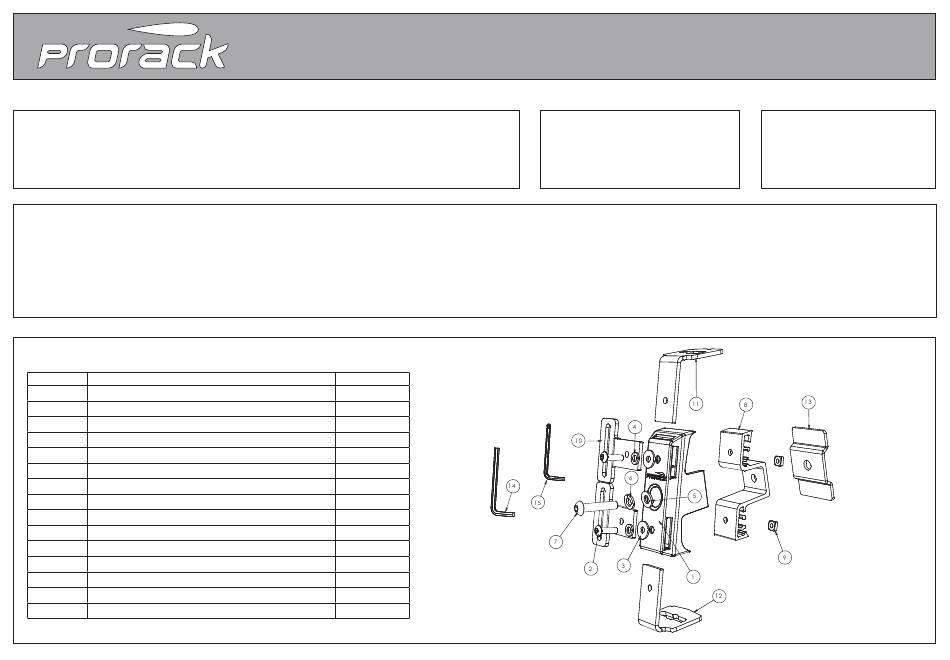

KIT CONTENTS
Item # Component
1 Cover
2 M6 Button Head Capscrew 20mm
3 M6 Washer
4 M6 Spring Washer
5 M8 Washer
6 M8 Spring Washer
7 M8 Button Head Capscrew 40mm
8 Frame
9 M6 Square Nut
10 Bracket A
11 Bracket B
12 Bracket C
13 Clamp
14 Allen Key 5mm
15 Allen Key 4mm Ball End
09-13-572 Rev 3
PR3213 VOYAGER PRO TRAY ACCESSORY MOUNTS
Qty
2
4
4
4
2
2
2
2
4
4
2
2
2
1
1
TOOLS REQUIRED
• Torque Wrench (optional)
• Screwdriver (optional)
NOTE - THIS PRODUCT IS
DESIGNED TO WORK WITH
PRORACK VOYAGER PRO
ALLOY TRAYS
Page 1 of 4
