Prorack PR3206 Instructions

FIRST TIME INSTALLATION

• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear missing or damaged.
• Clean your roof racks and luggage basket or tray prior to fitting the Prorack Spare Wheel Restraint.

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL PRORACK RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED
TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND
COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE
FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR
TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED
WITH YOUR PRORACK PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL
OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT
INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A ROOF RACK SPECIALIST.

INSTALLATION WITH PRORACK HD, TRADESMAN AND OTHER HEAVY DUTY CROSSBARS

Load the spare tyre onto the
1
tray/basket and position it
centrally between two crossbars.
09-13-566 Rev 1
PR3206 SPARE WHEEL RESTRAINT INSTRUCTIONS

TOOLS REQUIRED

• Screwdriver

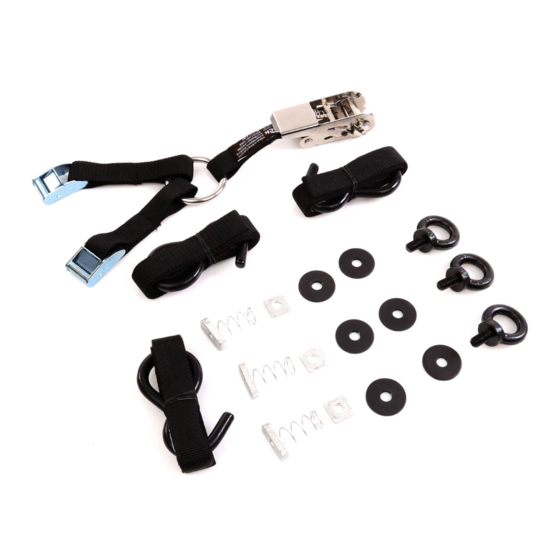

KIT CONTENTS

Item Component
1 Strap 3 Way Assembly
2 Hook & Strap Assy (1.3m)
3 M10 Eye Bolt
4 M10 Washer
5 M10 T-Nut
6 M10 Spring Nut
Position two M10 spring nuts on the front bar and one on the
2
rear. Push down into crossbar channels and twist spring nuts
to lock into place.
Rear Bar
1
Qty
1
3
3
6
5
3
3
2
Front Bar
Page 1 of 4
3
4
6
