Lockly VISION Installation Manual page 6

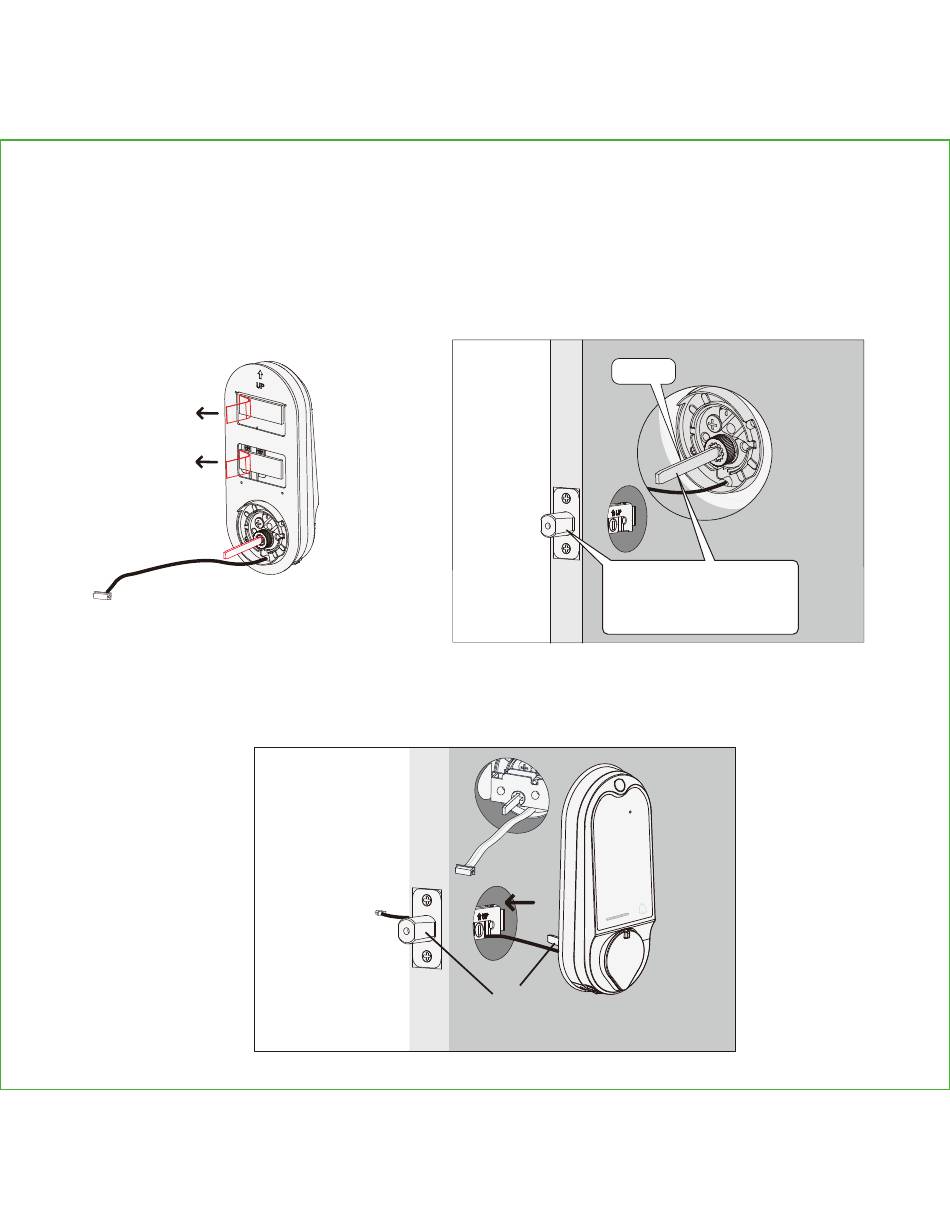

3.1: To secure Exterior
Assembly of lock, peel the
cover off the adhesive strips
3.3: Place the exterior assembly on the door by inserting the torque blade on a vertical
position to the deadbolt slit hole + and guide the cable under the deadbolt. Secure and
fastened with the adhesive strips.
STEP 3. INSTALLING THE EXTERIOR ASSEMBLY
3.2: Before placing the exterior assembly on the
door, make sure the torque blade is in vertical
position and the deadbolt is extended.
(1)
EXTERIOR VIEW
Vertical
When installing the exterior assembly,
make sure the deadbolt is fully
extended and the slit hole is vertically
positioned on the bottom, the torque
blade should be inserted in a vertical
position.
