4.7 Upright Pole

Chapter 4: Removal, Replacement, and Adjustment Procedures
4.7

Upright Pole

Tools required:

Removal

SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury and equipment damage.
1. Unplug the unit from its power source.
2. Remove the lamp head/yoke assembly. See "Lamp Head/Yoke Assembly"
on page 4-13.
3. Remove the rotating arm. See "Rotating Arm" on page 4-15.
4. Using a small phillips head screwdriver, remove the screws (A) from the
upright locks (B) (see figure 4-8 on page 4-18).
Page 4 - 18
DRAFT 6/4/99
Small phillips head screwdriver

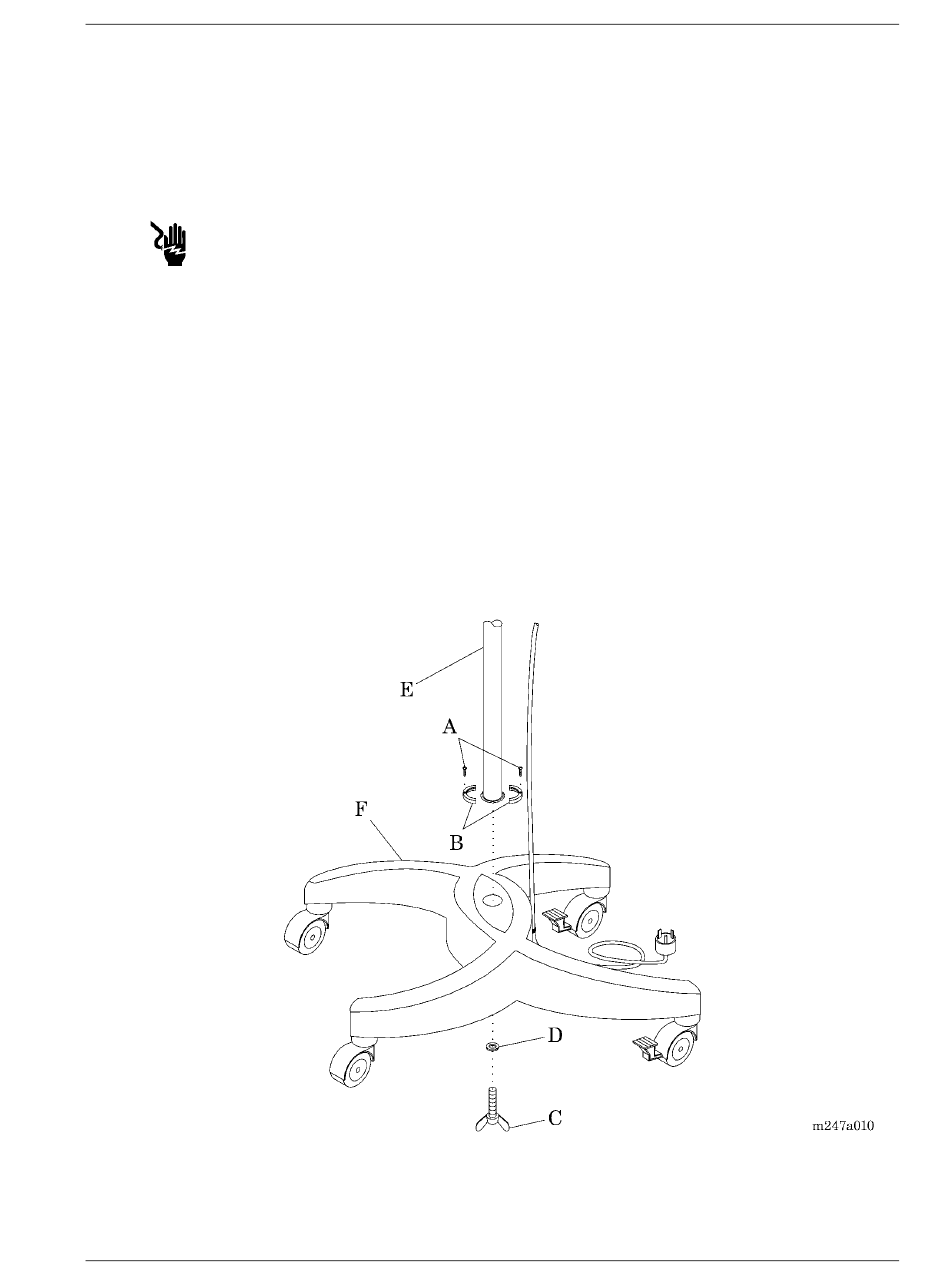

Figure 4-8. Upright Pole
Prima™ Procedural Light Service Manual (man247ra)
