4.6

Rotating Arm

Tools required:

Removal

SHOCK HAZARD:
Unplug the unit from its power source. Failure to do so could result in
personal injury and equipment damage.
1. Unplug the unit from its power source.
2. Remove the lamp head/yoke assembly. See "Lamp Head/Yoke Assembly"
on page 4-13.
3. Using the phillips head screwdriver, remove the screw (A) and the plastic
cover (B) from the top of the upright pole (C) (see figure 4-6 on page 4-15).
4. Disconnect the electrical connectors (D).
Prima™ Procedural Light Service Manual (man247ra)
DRAFT 6/4/99
Chapter 4: Removal, Replacement, and Adjustment Procedures
Phillips head screwdriver
Retaining ring removal/installation tool
Screwdriver

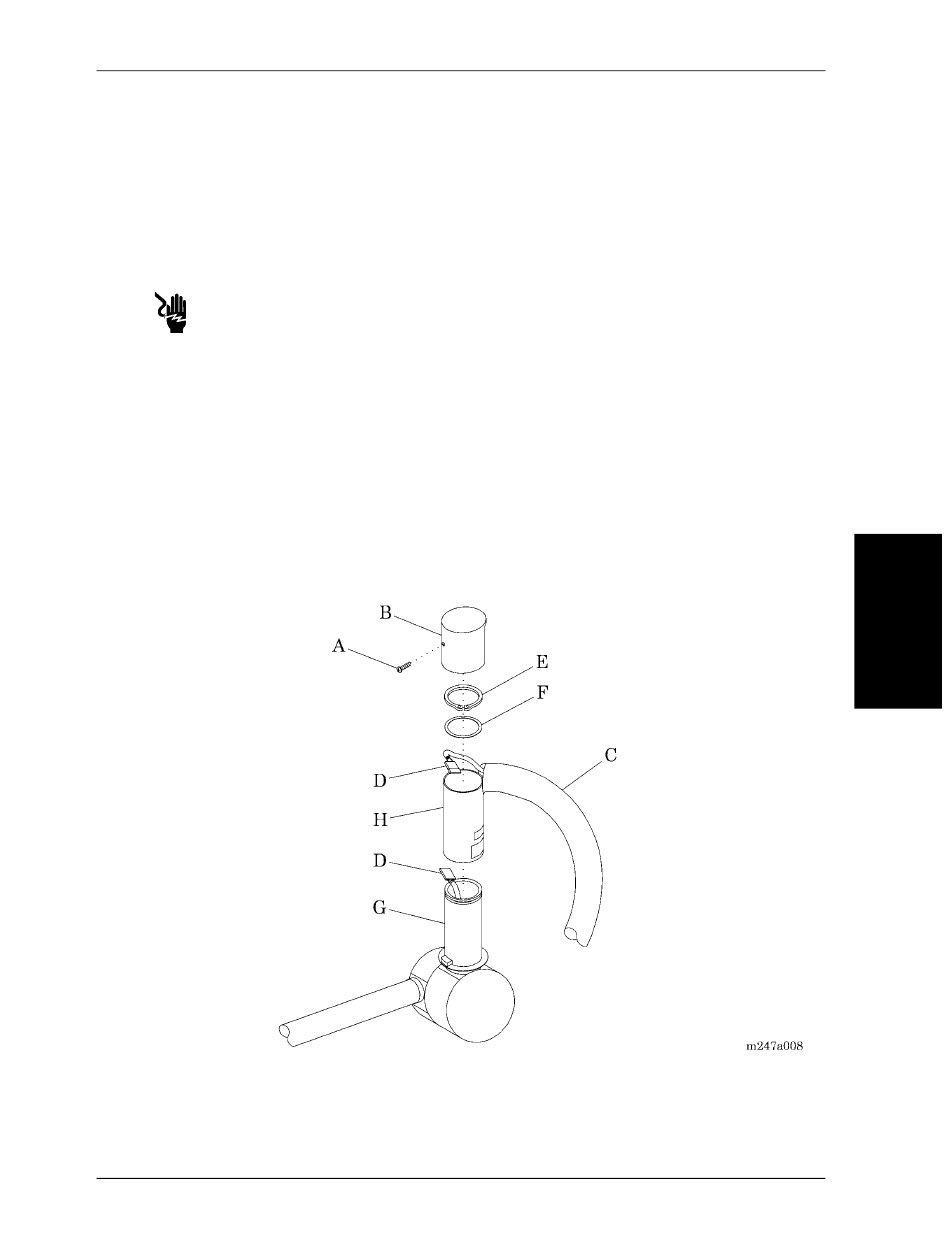

Figure 4-6. Rotating Arm

4.6 Rotating Arm

Page 4 - 15
4
