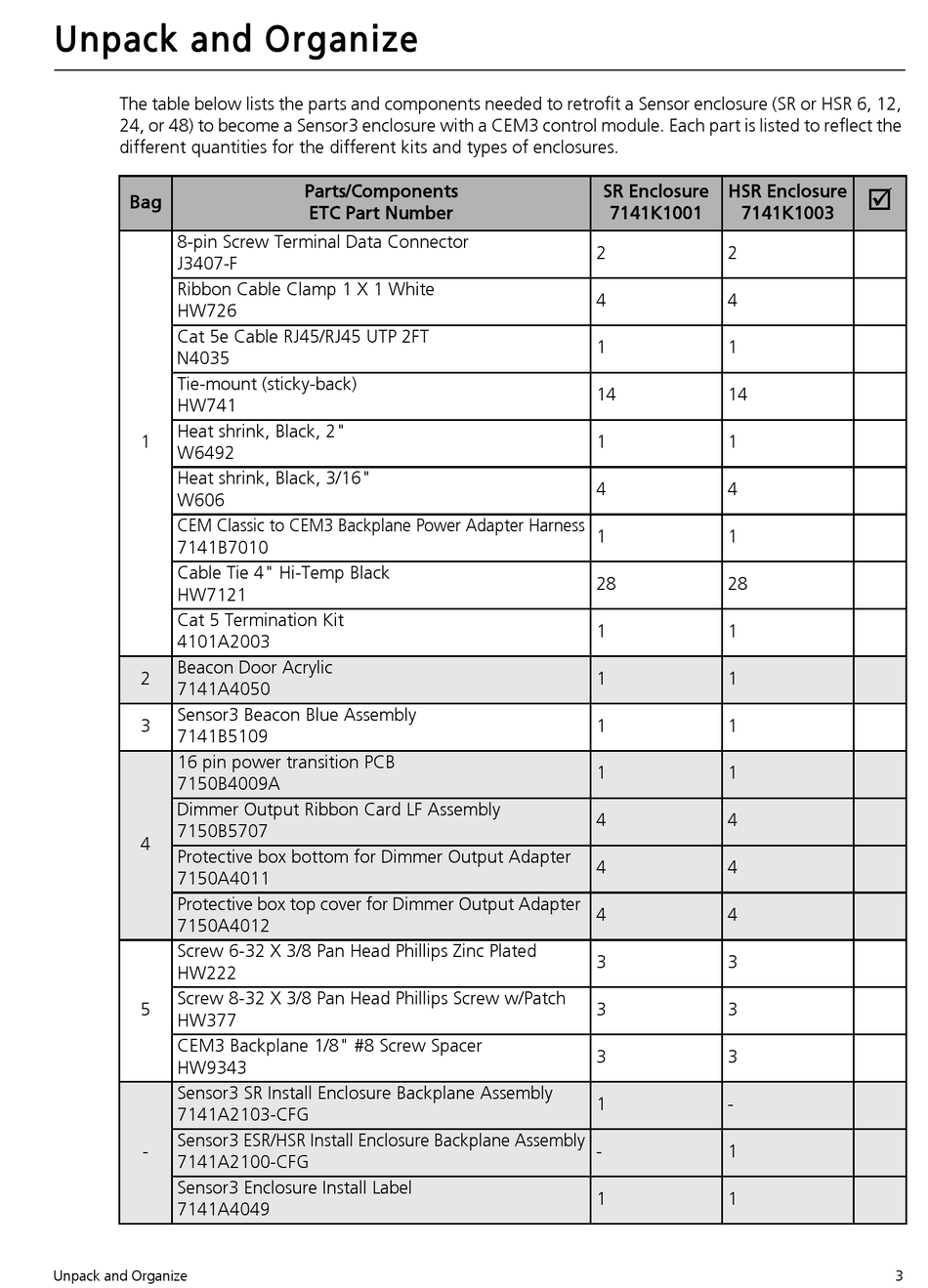

Unpack and Organize
The table below lists the parts and components needed to retrofit a Sensor enclosure (SR or HSR 6, 12,
24, or 48) to become a Sensor3 enclosure with a CEM3 control module. Each part is listed to reflect the
different quantities for the different kits and types of enclosures.
Bag
8-pin Screw Terminal Data Connector
J3407-F
Ribbon Cable Clamp 1 X 1 White
HW726
Cat 5e Cable RJ45/RJ45 UTP 2FT
N4035
Tie-mount (sticky-back)
HW741
Heat shrink, Black, 2"
1
W6492
Heat shrink, Black, 3/16"
W606
CEM Classic to CEM3 Backplane Power Adapter Harness
7141B7010
Cable Tie 4" Hi-Temp Black
HW7121
Cat 5 Termination Kit
4101A2003
Beacon Door Acrylic
2
7141A4050
Sensor3 Beacon Blue Assembly
3
7141B5109
16 pin power transition PCB
7150B4009A
Dimmer Output Ribbon Card LF Assembly
7150B5707
4
Protective box bottom for Dimmer Output Adapter
7150A4011
Protective box top cover for Dimmer Output Adapter
7150A4012
Screw 6-32 X 3/8 Pan Head Phillips Zinc Plated
HW222
Screw 8-32 X 3/8 Pan Head Phillips Screw w/Patch
5
HW377
CEM3 Backplane 1/8" #8 Screw Spacer
HW9343
Sensor3 SR Install Enclosure Backplane Assembly
7141A2103-CFG
Sensor3 ESR/HSR Install Enclosure Backplane Assembly
-
7141A2100-CFG
Sensor3 Enclosure Install Label
7141A4049
Unpack and Organize
Parts/Components
ETC Part Number
SR Enclosure HSR Enclosure
7141K1001 7141K1003
2 2
4 4
1 1
14 14
1 1
4 4
1 1
28 28
1 1
1 1
1 1
1 1
4 4
4 4
4 4
3 3
3 3
3 3
1 -
- 1
1 1

