Terminate Ethernet Cable (if installed)
1:
Terminate the Ethernet cable with the provided Cat 5 Termination Kit (ETC part# 4101A2003).
Follow the wire preparation and termination instructions included with the kit.
2:
Using a network cable tester, verify the connection and cable performance between the newly
installed cable termination and the patch bay, or the location where the cable terminates.

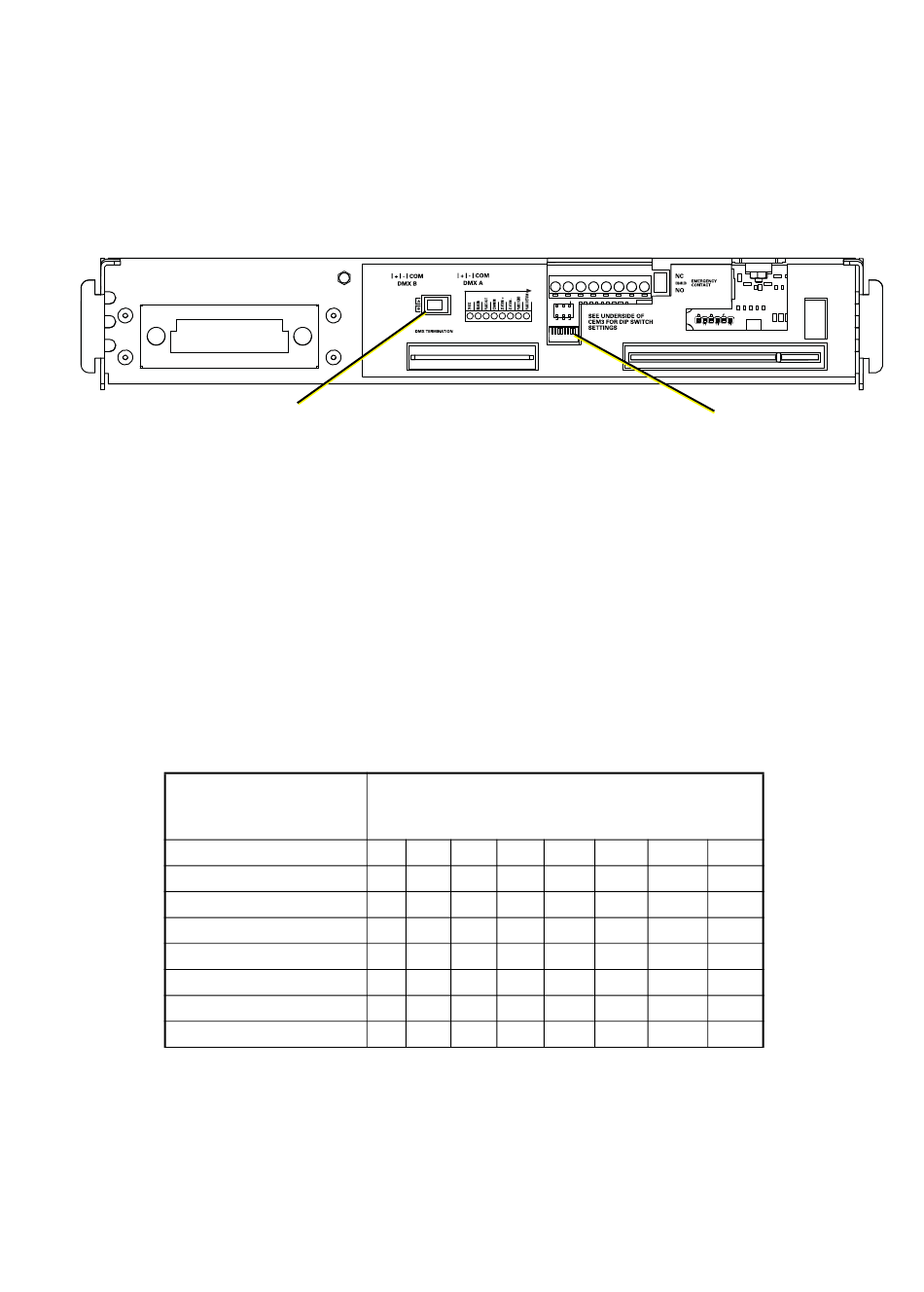

Backplane Settings
Upgrade kit backplanes ship from the factory with all DIP switches in the off (down) position. Set the
DIP switches on the new backplane to match your enclosure and verify the termination switch settings.
Set termination to "Off"
(middle position)
1:
Set the DMX termination switches for each port to "Off" unless the port is the last position in
the DMX chain.
• If there are both DMX In and Thru connections to the port, the enclosure is not last in the
chain. DMX Thru connections can be made either using two pairs of wires in one terminal
block, or using the DMX Thru connector.
• If there is only one set of DMX wires in the connector and the DMX Thru is not used, the
enclosure is the last in the chain.
• If there is no DMX wire connected, leave the termination switches off.
2:
Using a dental pick or other small-point tool, set the DIP switches to match your enclosure type
according to:
• Number of modules (6, 12, 24, or 48)
• Whether the enclosure has Advanced Features (AF)
Use the following chart to determine your required DIP switch settings:
Enclosure Model
SR3-6, HSR3-6
SR3-6AF, HSR3-6AF
SR3-12, HSR3-12
SR3-12AF, HSR3-12AF
SR3-24, HSR3-24
SR3-24AF, HSR3-24AF
SR3-48, HSR3-48
SR3-48AF, HSR3-48AF
12
DIP Switch Number
1
2
3
4
On
On
On
On
"On" position = switch pushed to the top
Set DIP switches
5
6
7
8
On
On
On
On
On
On
On
On
