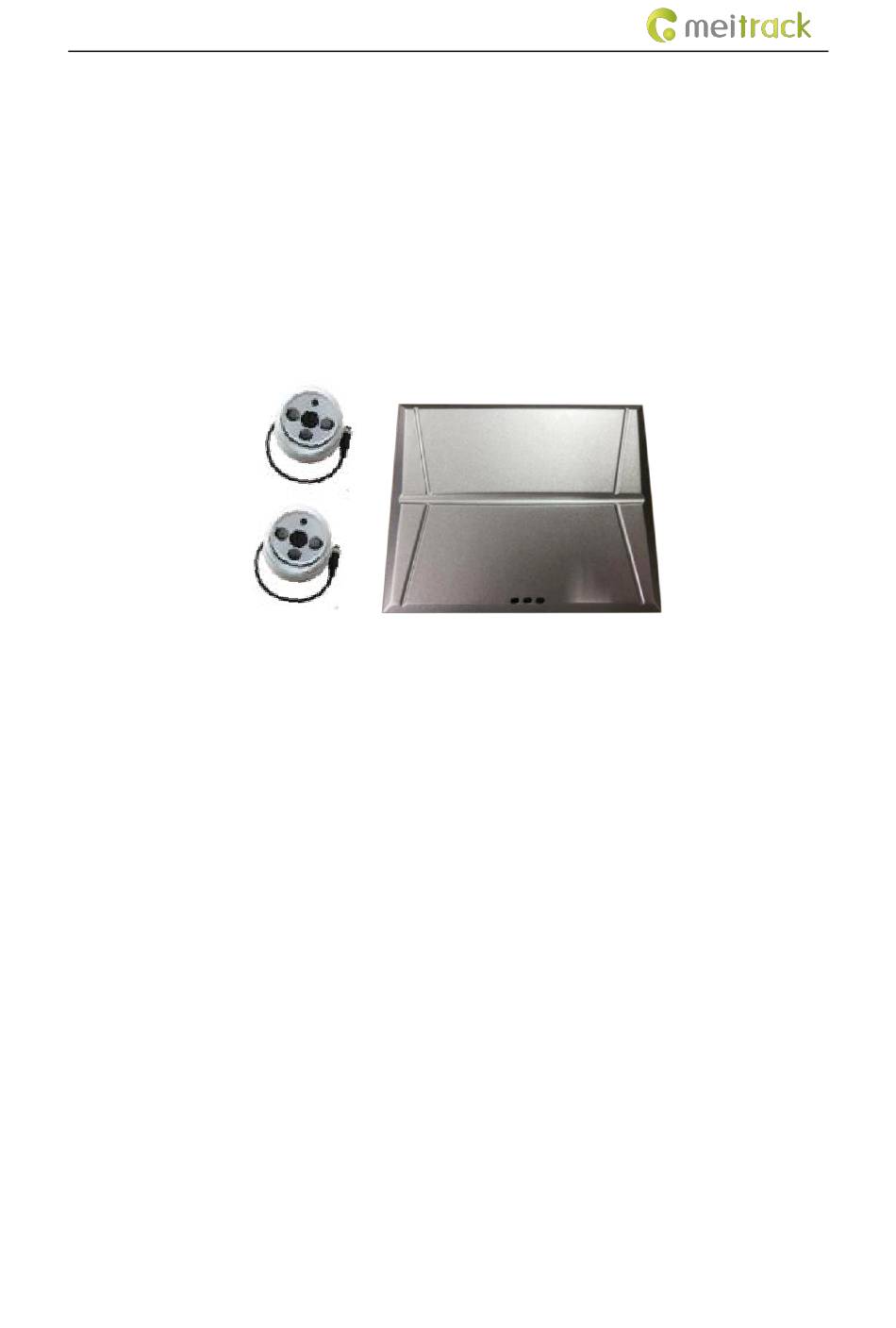

- Page 1 MEITRACK A91 Passenger Flow Sensor User Guide MEITRACK A91 Passenger Flow Sensor User Guide Applicable Model: T366G...
- Page 2 MEITRACK A91 Passenger Flow Sensor User Guide Change History File Name MEITRACK A91 Passenger Flow Sensor User Guide Applicable Firmware T366G_Y15V216 Creation Date 2019-02-12 Subproject Accessory User Guide Total Pages Version V1.0 Confidential External Documentation - 2 - Copyright © 2019 Meitrack Group All rights reserved.
-
Page 3: Table Of Contents
4 Product Specifications ............................... - 6 - 5 Installation ................................. - 7 - 5.1 Connecting the A91 to the T366G ........................ - 7 - 5.2 Installing the A91 ............................- 7 - 5.2.1 Installing the Passenger Counter ......................- 7 - 5.2.2 Installing Extension Cables ........................ -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Main Device And Accessories
MEITRACK A91 Passenger Flow Sensor User Guide 3 Main Device and Accessories Name Quantity Picture Passenger counter Camera Main wire harness Power cable - 5 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 6: Product Specifications
-40°C to 85°C Operating humidity 0%–95% Baud rate 115200 bps Passenger flow speed < 10 m/s (If the speed is lower than 2 m/s, the accuracy is higher.) Counting accuracy - 6 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 7: Installation
The passenger counter needs to be connected to the 12 V/24 V DC power supply and connected to the cameras, vehicle doors and T366G's RS232 interface by the main wire harness (labelled with wiring instructions). When the counter detects that a vehicle door is open, it will start counting. When the counter detects that a vehicle door is closed, it will stop counting and upload statistical results to the server. -
Page 8: Installing Extension Cables
5.2.3 Installing the Door Opening and Closing Signal Cable Install the 3-pin door opening and closing signal cable listed in the accessories. The pin definitions are shown in the following figure: - 8 - Copyright © 2019 Meitrack Group All rights reserved. - Page 9 - 9 - Copyright © 2019 Meitrack Group All rights reserved.
-
Page 10: Installing Cameras
2.2 meters. Meanwhile, the cameras need to be installed in the middle of the upper part of the doors and are about 0.5 meters away from the glass door (A ≈ 0.5 meters, as shown in the following figure). - 10 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 11: Installing All Parts
5.2.5 Installing All Parts Connect all parts mentioned in the section 5.2 to the passenger counter, as shown in the following figure. - 11 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 12: A91 Debugging
Device configuration requirement: Android phone with the WiFi function A91 working status: The passenger counter is connected to related cables and accessories, and ensure the A91 works normally. Perform the following operations to obtain images: - 12 - Copyright © 2019 Meitrack Group All rights reserved. - Page 13 3. After the connection is successful, the app will jump back to the main page automatically. Click Monitor. Then you can obtain images from the cameras at the front and back doors to debug the device. - 13 - Copyright © 2019 Meitrack Group All rights reserved.
-
Page 14: Adjusting The Angle Of Cameras
On the Peripheral tab page, set RS232 EXT to Customized and Baud Rate to 115200. 7.2 Setting the GPRS Event The People Counter event is selected by default. When the A91 detects a vehicle door is closed, it will send a GPRS - 14 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 15: Clearing The Counter
8.1 Clearing Method There are three clearing methods: Restart the T366G. Then the counter will be cleared. Send the BAE command to clear the counter. Send the BAE command to clear the counter at the specific time every day (default time: 24:00). You can set the time by the BAE command. -
Page 16: Querying Reports From The Ms03 Platform
To view alert statistics information during different time periods, choose Reports, and click People Counter Report. When a vehicle door is closed, a piece of data will be uploaded to the platform. - 16 - Copyright © 2019 Meitrack Group All rights reserved. -
Page 17: Querying Alert Reports
Front/back door camera recovery alert Front/back door camera abnormal alert (camera disconnected) Front/back door camera normal alert (camera connection normal) If you have any questions, do not hesitate to email us at info@meitrack.com. - 17 - Copyright © 2019 Meitrack Group All rights reserved.
