Assembly With Acoustic Trumpet; Assembly With Focus Tube With Focus Tip - TESTO Sensor LD pro Instruction Manual

Device components and controls
7.7

Assembly with acoustic trumpet

The acoustic trumpet allows acoustic amplification by bundling the sound waves. Due to the special
design, the integrated laser pointer will work properly. The camera is integrated at the bottom of the
acoustic trumpet and is electrically connected to the preamplifier module via the jack plug.
Assembling is done by plugging the individual components until easy locking audible (plug in to the
stop).
The components are removed in reverse order, for unlocking the preamplifier module, the release
button must be pressed too.
7.8

Assembly with focus tube with focus tip

The focus tube with focus tip is used to detect very small leaks, to accurately locate them.
Just like the acoustic trumpet, the tube can be plugged into the preamplifier with ultrasonic receiver.
The use of the camera is no longer possible.
The components are removed in reverse order, for unlocking the preamplifier module, the release
button must be pressed too.
Testo Sensor LD pro V2.00

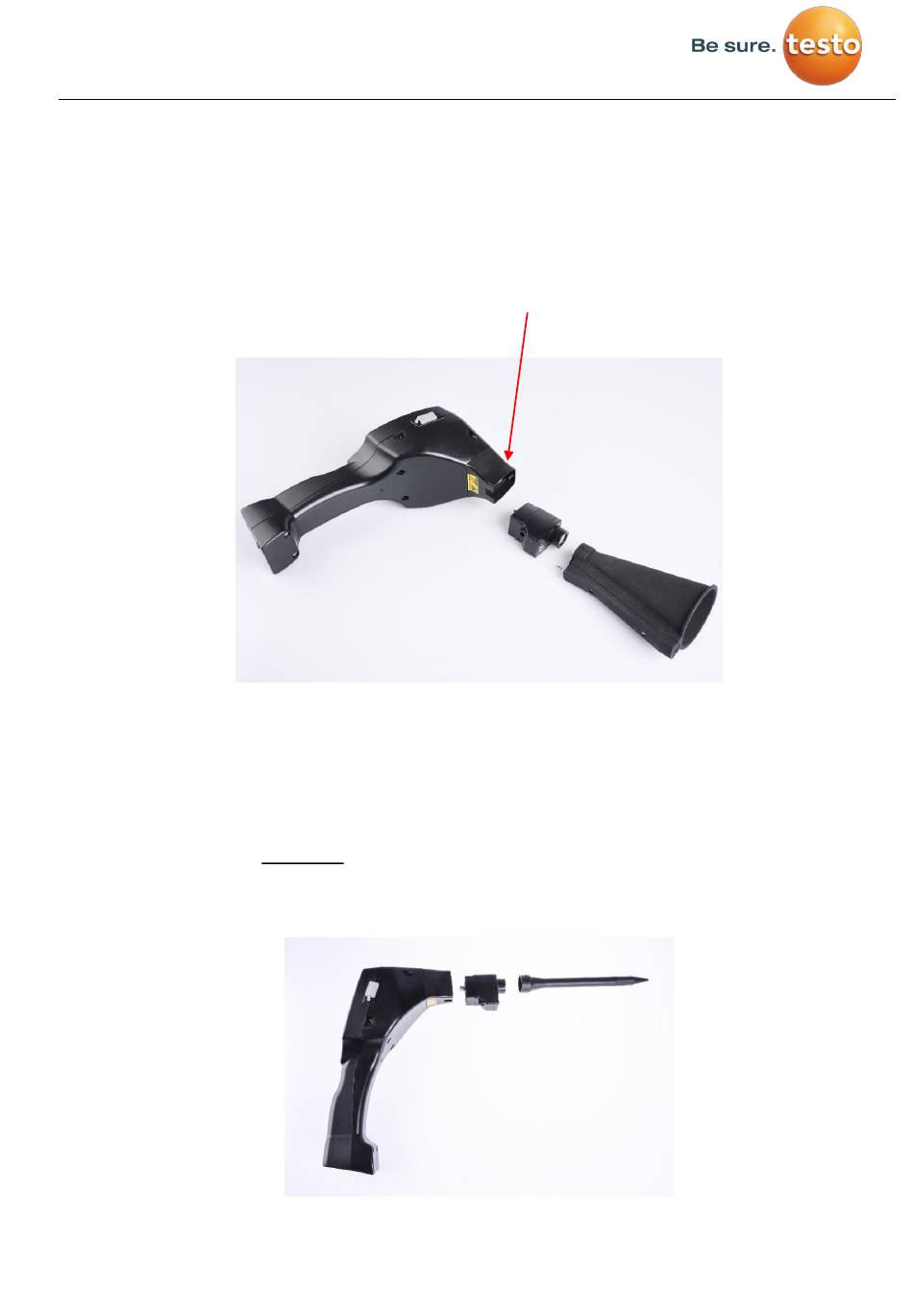

Picture 8
Picture 9
Page 12 of 48
