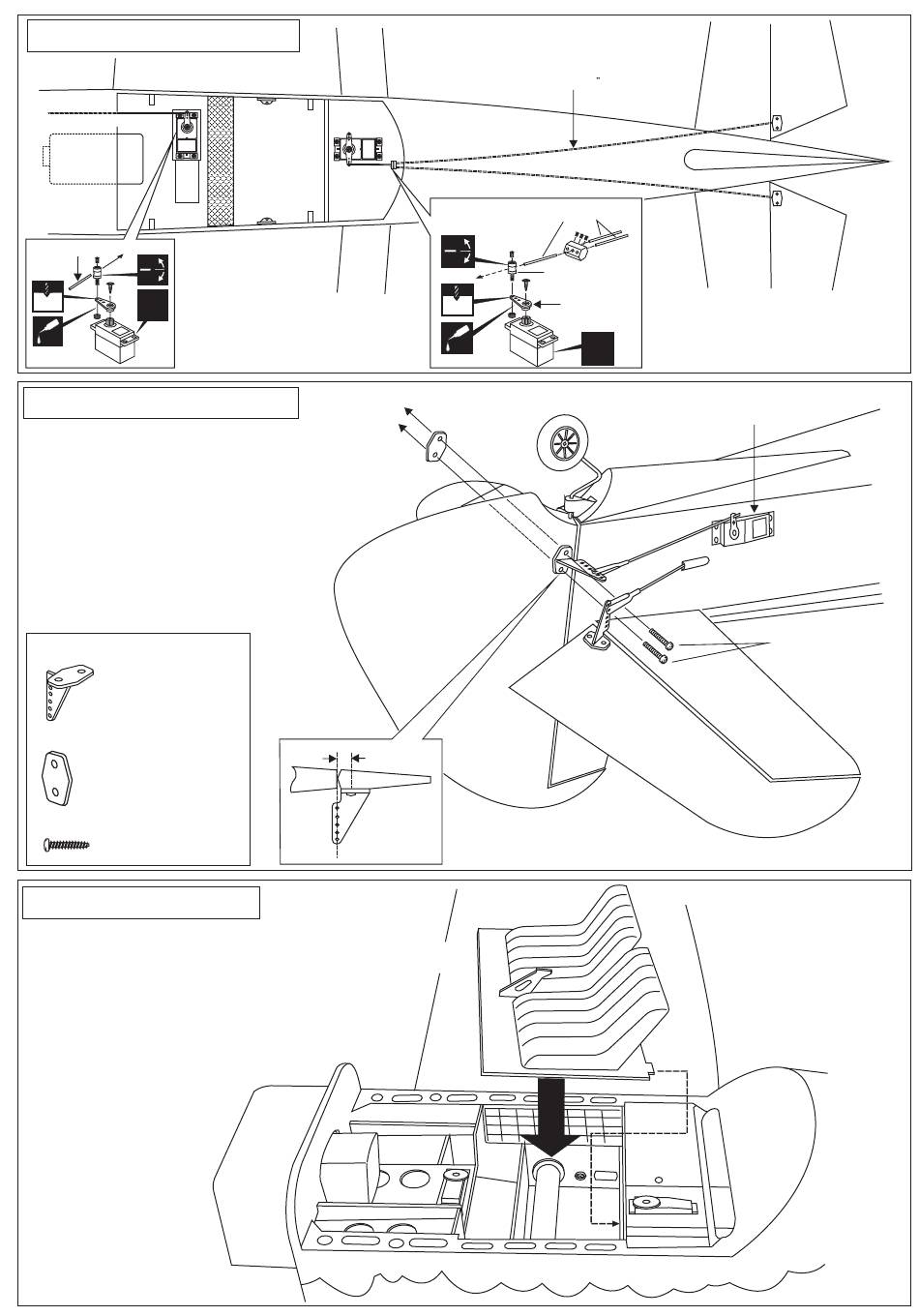

19- Linkages / Anlenkungen
Throttle pushrod
Tank
Throttle push rod
X
2 mm
CA
20- Linkages / Anlenkungen
When you are satisfied with the
alignment of the control horn, mark
the mounting hole positions with a
felt tipped pen or a pencil.
Remove the control horn and drill
two 2mm (5/64") holes through the
rudder
Insert the rudder push rod into the
rudder control horn. Attach the rudder
control horn using two 2x25mm screw
and a back plate.
Plastic control horn
............................1
Plastic back plate
...........................1
2x25mm screw
.......................2
21- Cockpit
TOP VIEW
Draufsicht
TOP VIEW
Draufsicht
2 mm
CA
10mm
Magnetic cockpit deck
Elevator pushrod
Rudergestange
Elevator push rod
Connector
Linkage stoper
Included with the
radio set
X
Rudder servo
2x25mm screw
