Four-Stroke Engine Installation; Two-Stroke Engine Installation; Front View - VQ Models Cap 10 Instruction Manual

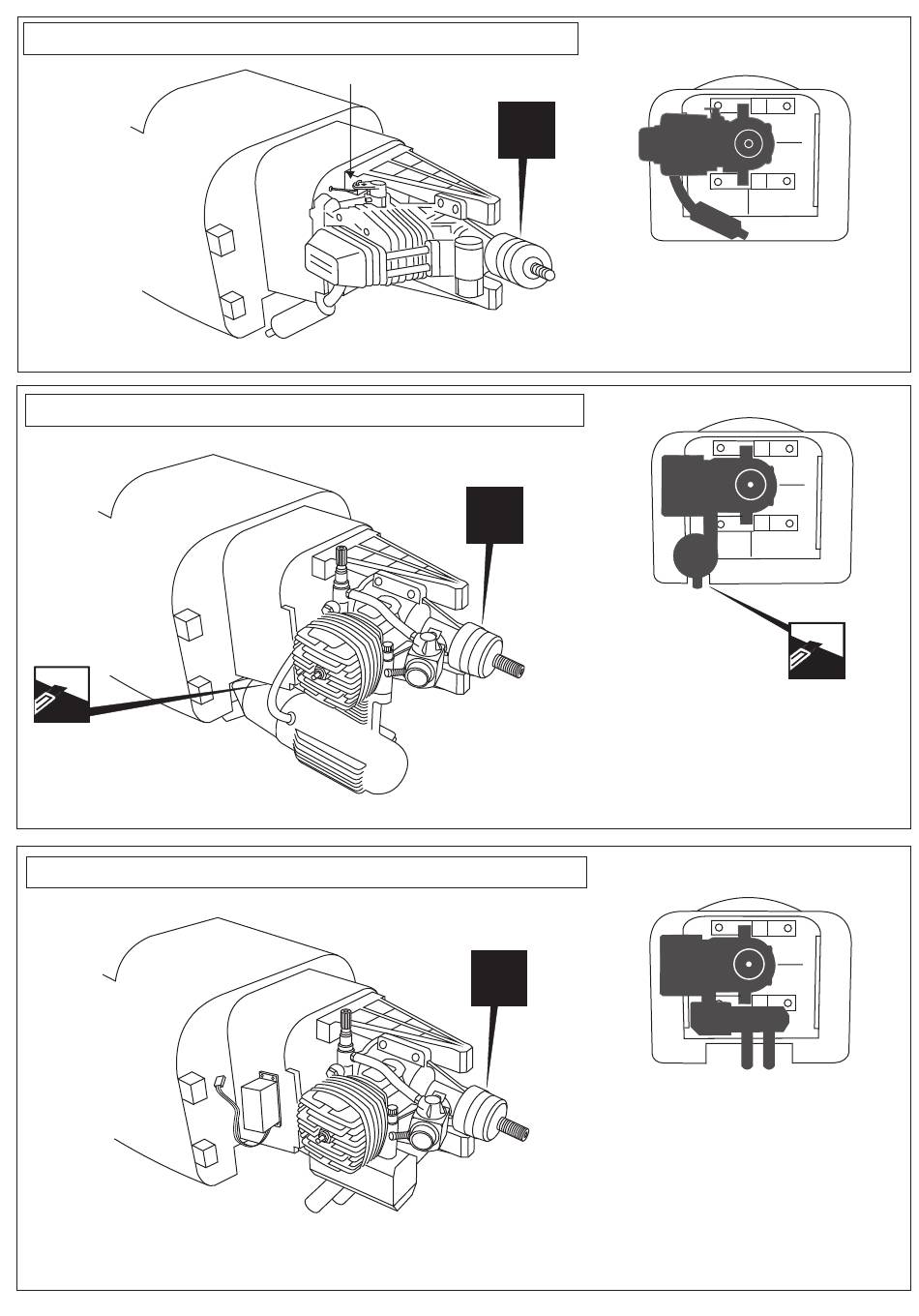

7- Four-stroke engine installation / Einbau Viertarktmotor
8- Two-stroke engine installation / Einbau Zweitarktmotor
Trim the fire wall so that
your muffler doesn't touch
with a knife or Dremel
9- Two-stroke engine installation / Einbau Zweitarktmotor
Two-stroke engine with manifold
Throttle push rod
Engine
Secure the engine to the engine mounts using fous 3x25mm screws and nuts
Engine
X
Engine
X
X
In case of four-stroke engine
Trim the fire wall so that
your muffler doesn't touch
with a knife or Dremel
In case of two-stroke engine
Secure the engine to the engine mounts using
fous 3x25mm screws and nuts
In case of two-stroke engine

FRONT VIEW

FRONT VIEW
FRONT VIEW
