Wheel Pants Installation; Engine Mounts; Top View - VQ Models Cap 10 Instruction Manual

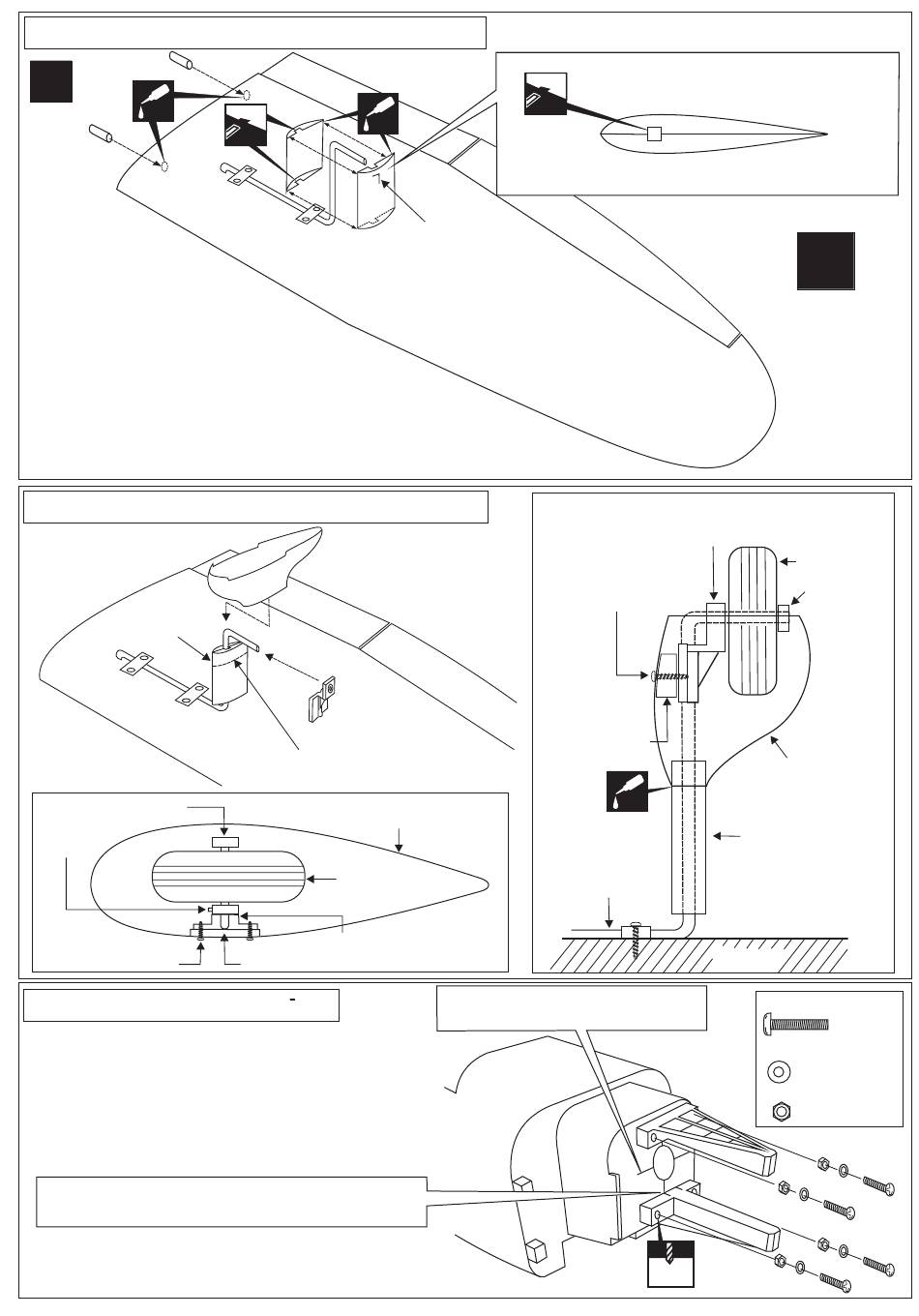

4- Wheel pants installation / Fahrwerkseinbau
Wooden dowel
L/R
CA
Wooden dowel
BOTTOM VIEW
Unteransicht
1- Position the landing gear and strap as
show. Using the four 3x10mm screws, fasten
the landing gear to the bottom of the wing.
2- Cut away two holes on the top and
bottom of the right and left ABS gear cover
for the landing gear exit
3- Fit all ABS gear cover in place (L with L and R with R) and secure them
with CA glue
5- Wheel pants installation / Fahrwerkseinbau
BOTTOM VIEW
Unteransicht
ABS gear cover
CAUTION: Push down the wheel pant
Stopper
3mm screw
(black)
3x12mm screw
6- Engine mounts / Motortrager
1- Set the engine on the engine mounts
2- Place the engine mounts with the engine to the
fire wall and secure it with tittle CA glue.
3- Using a pencil or felt tipped pen, mark the engine
mounting plate where the four holes are to be drilled
4- Remove the engine and drill a 11/64" (4.3mm)
hole through the fire wall at each of the four marks
made in Step 3 above.
CAUTION: Align the mark on both mounts with the
center mark on the fire wall
CAUTION: Engine thrust on fire wall is aleady adjust
at factory
CA
1
3
Fiber glass wheel pant
4
Nylon gear strap
to this line.
Fiber glass wheel pant
Wheel
Nylon gear strap
BOTTOM VIEW
Wooden block
2
FRONT
"L"
For left wing
"R"
For right wing
Wooden block
5
Landing gear
CAUTION: Align the engine center
with fire wall marked line

TOP VIEW

Right ABS gear cover of "L" set
Left ABS gear cover of "L" set
FRONT VIEW Vorderansicht
Nylon gear strap
3x12mm
screw(2)
6
Wheel pant
CA
ABS gear cover
WING
4.3mm
REAR
L/R
7
Wheel
Stopper
8
4mm screws
..........4
4mm washer
...................4
4mm nut
...................4
