Horizontal Tail - VQ Models Cap 10 Instruction Manual

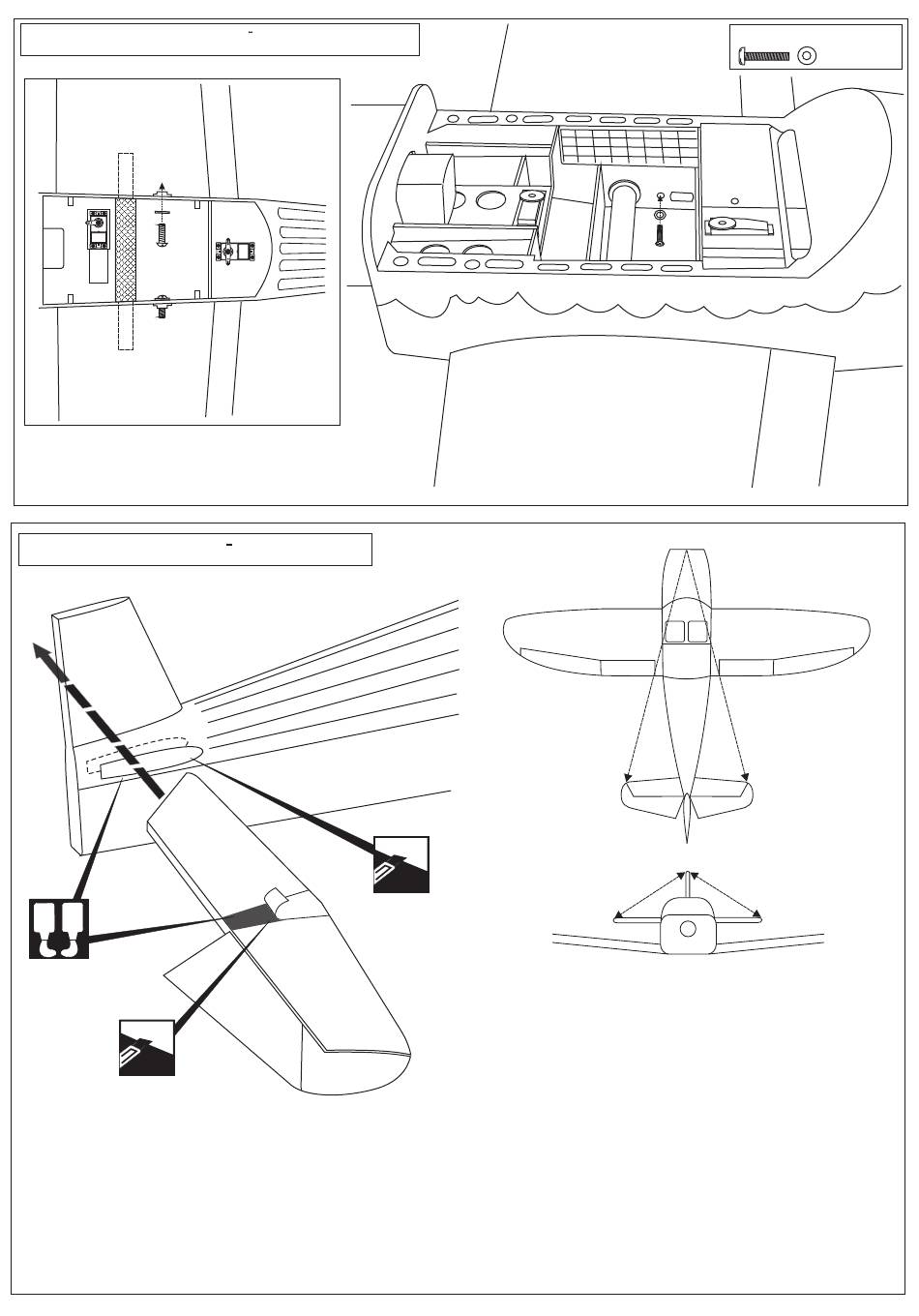

15- Joining the wing / Flachenverbindung
RIGHT WING HARVEST
LEFT WING HARVEST
16- Horizontal Tail / Hohenleitwerk
A B
Cut away only
the film
1- Trial fit the horizontal stabilizer in place
2- Using a pencil, trace around the vertical stabilizer where it meets the fuselage. (both sides).
3- Remove the horizon stabilizer from the fuselage.
4- Using a sharp hobby knife, cut away the covering inside the lines which were marked in step 2. Do NOT cut into the
wood as this will affect the structural integrity of the stabilizer
5- Using a mixing stick, spread the epoxy on the horizontal stabilizer and fuselage where it meets the horizontal stabilizer.
6- Insert the horizontal stabilizer into the fuselage and secure it in place using masking tape and allow the epoxy to cure
completely. Using rubbing alcohol and paper towel, clean the excess epoxy.
TOP VIEW
Draufsicht
Cut away only
the film
TOP VIEW
Draufsicht
A
B
A = A'
B = B'
Warning: Securely glue together. If coming of during
flights, you lose control of your plane which leads
to accidents!
4mm screws & washer
......2
A'
B'
