C-Series Off-Highway
Installation Manual
4. ...push it on the contact insert until it 'clicks in'
5. Push carefully the whole connector system and its wires into the bore hole in the cylinder wall
6. Apply 4 metric screws M4 to fix the connector system (recommend ISO 7380-1 screws)

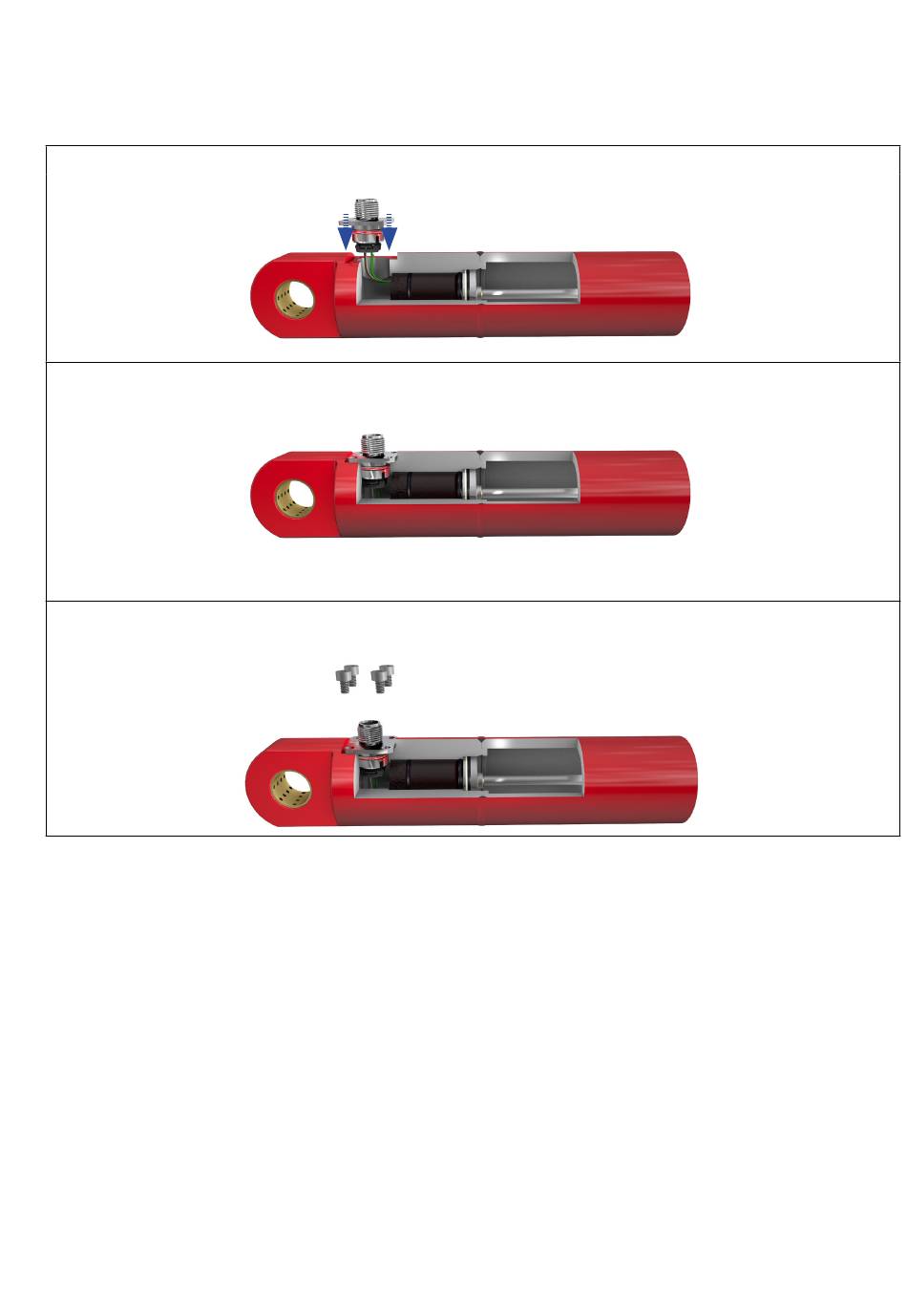

Fig. 8: Mounting sensors with M12 connection, part 2
I 9 I
