C-Series Off-Highway
Installation Manual
3. Guide the connection cable through the cable gland.
4. Use an individually prepared bush (e.g. polyamide) to press the sensor into the seat. Make sure that the conductors or cables are not
under strain.

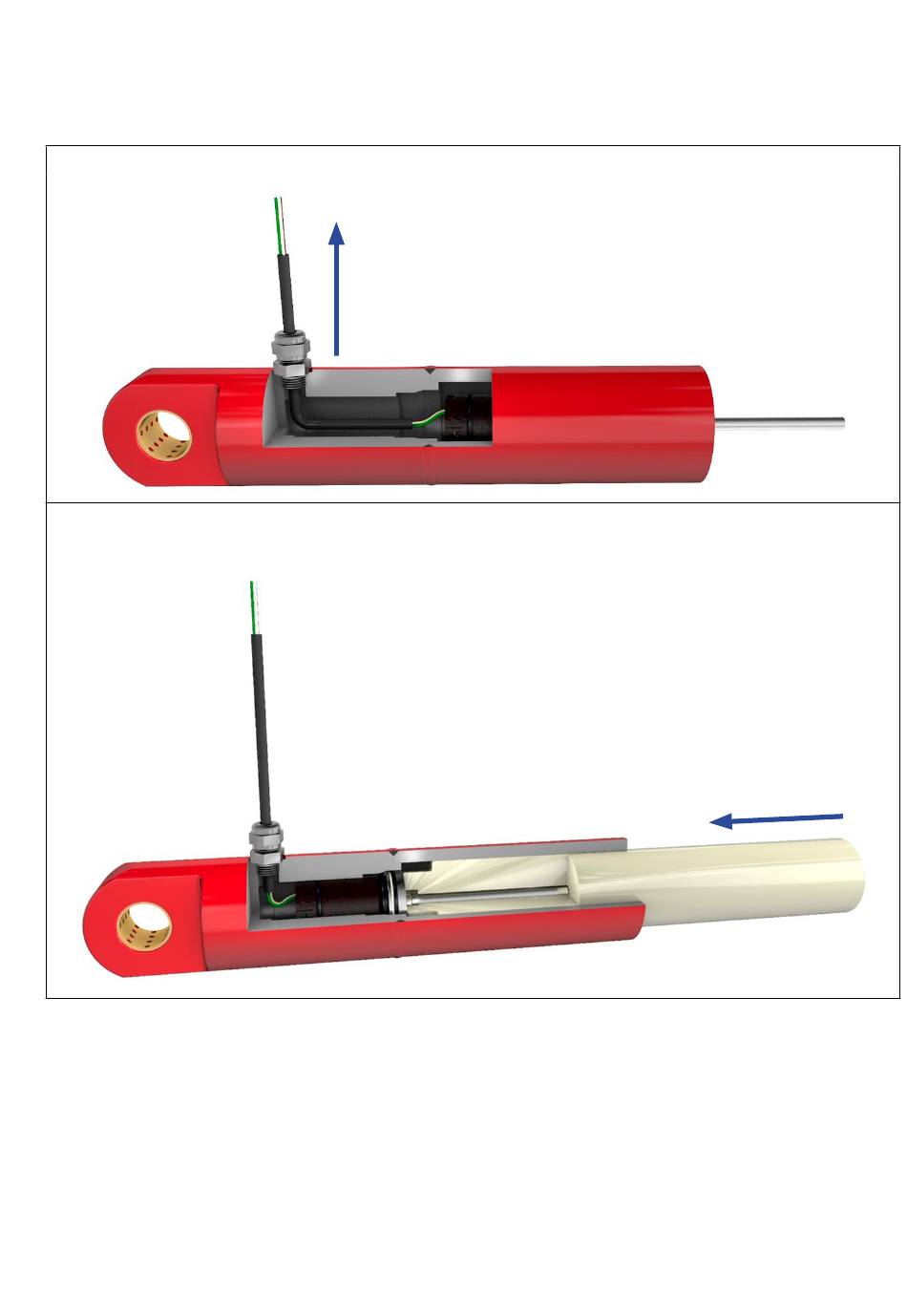

Fig. 10: Mounting sensors with cable connection and cable gland, part 2
I 11 I
