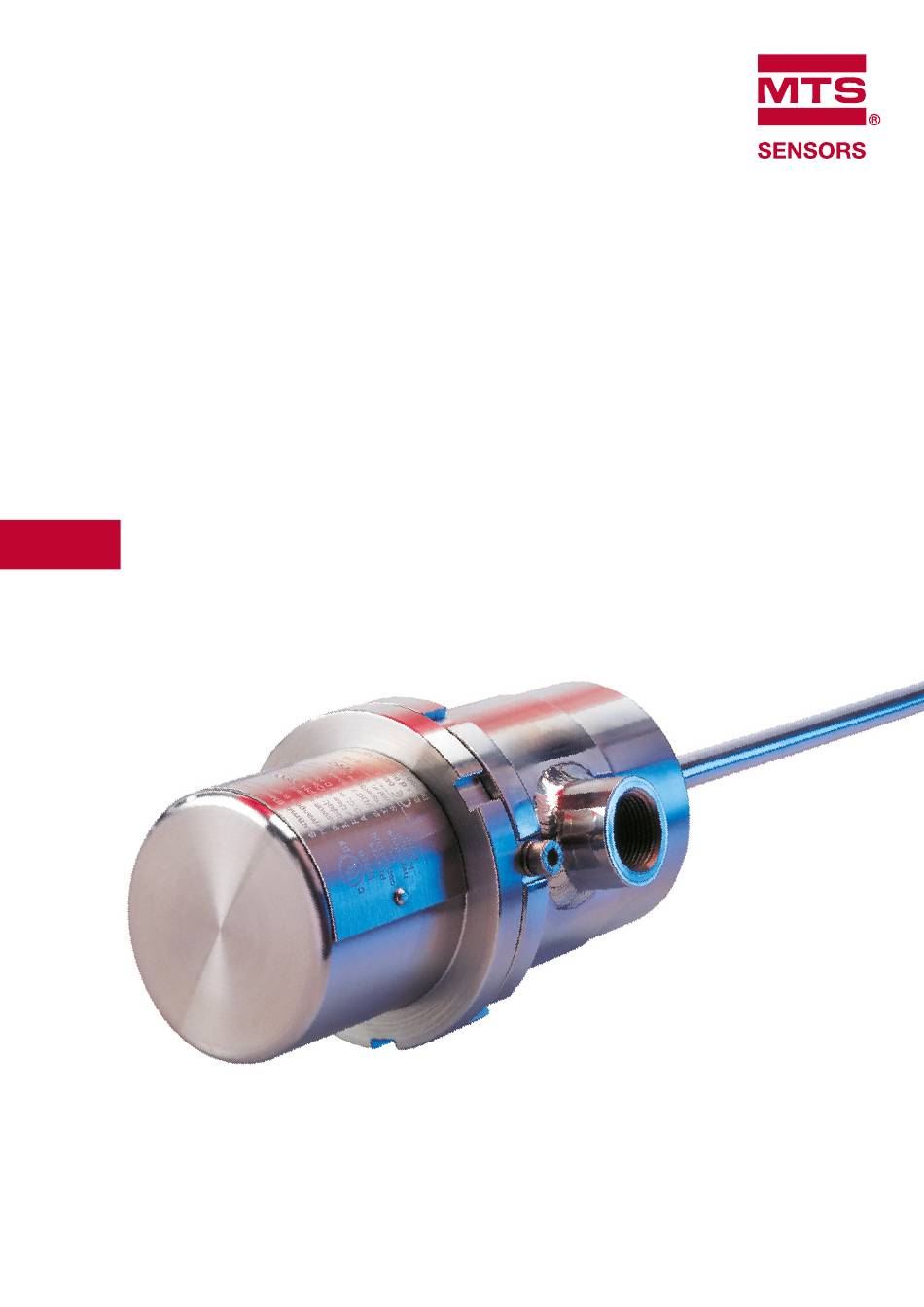

- Page 1 Temposonics ® Magnetostrictive Linear Position Sensors High Pressure Housing (HPH) Operation Manual...
-
Page 2: Technical Data
PRECISION POSITION MEASUREMENT – HPH This High Pressure Housing (HPH) is ATEX/IECEx as well as UL and Safety Instructions cUL approved for use in hazardous locations with Temposonics The sensor must only be used according to the Ex certificates listed ®... -
Page 3: Technical Drawing
High Pressure Housing Operation Manual TECHNICAL DRAWING 147…198 mm (5.79…7.81 in.) Dead zone Stroke length Null zone *64 mm 50…7500 mm 51 mm 19.5 mm (*2.52 in.) (2…295 in.) (2 in.) (0.77 mm) 25 mm (1 in.) M18×1,5-6g ¾" 16 UNF-3A Zone 1 Zone 0 * Stroke length >... - Page 4 The normal way is that the sensor and the HPH housing are in one order and then MTS Sensors supply the sen- sor mounted in the WPH housing. Go to step 7.
- Page 5 High Pressure Housing Operation Manual Assemble the top and bottom turning clockwise. Tighten firmly until the top and bottom flanges come together. Tighten gable gland according to the manufacturer’s specifications. Side mounted cable gland(s) Enter the cable through the gland without tightening. For cable sizes larger than 7mm or very rigid cables, you may need to remove the outer insulation jacket from inside the cable gland to the connector...
- Page 6 High Pressure Housing Operation Manual Insert and fasten the sensor. Make the connections. Insert a bag of Desiccant in the top. Assemble the top and bottom turning clockwise and tighten firmly until top and bottom flanges come together. (see fig. 11) Tighten the cable glands according to manufacturer‘s specifications.
- Page 7 High Pressure Housing Operation Manual ACCESSORIES Position magnet Cable glands ATEX Ø 32.8 (Ø 1.29) Ø 4.3 Ø 23.8 (Ø 0.17) (Ø 0.94) Ø 13.5 (0.31) (Ø 0.53) Ring magnet OD33 M20 × 1,5 M20 × 1,5 ½" NPT cable gland ATEX/CSA US, Part no.
- Page 8 MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2019 MTS Systems Corporation. No license of any intellectual property rights is granted.
