5. Mounting
5.1 Mounting sensors with M12 connection
1. Guide sensor and pressure housing into the cylinder
2. Pull the contact insert through the cylinder wall and press sensor and pressure housing into its seat
3. Take the connector flange part and...

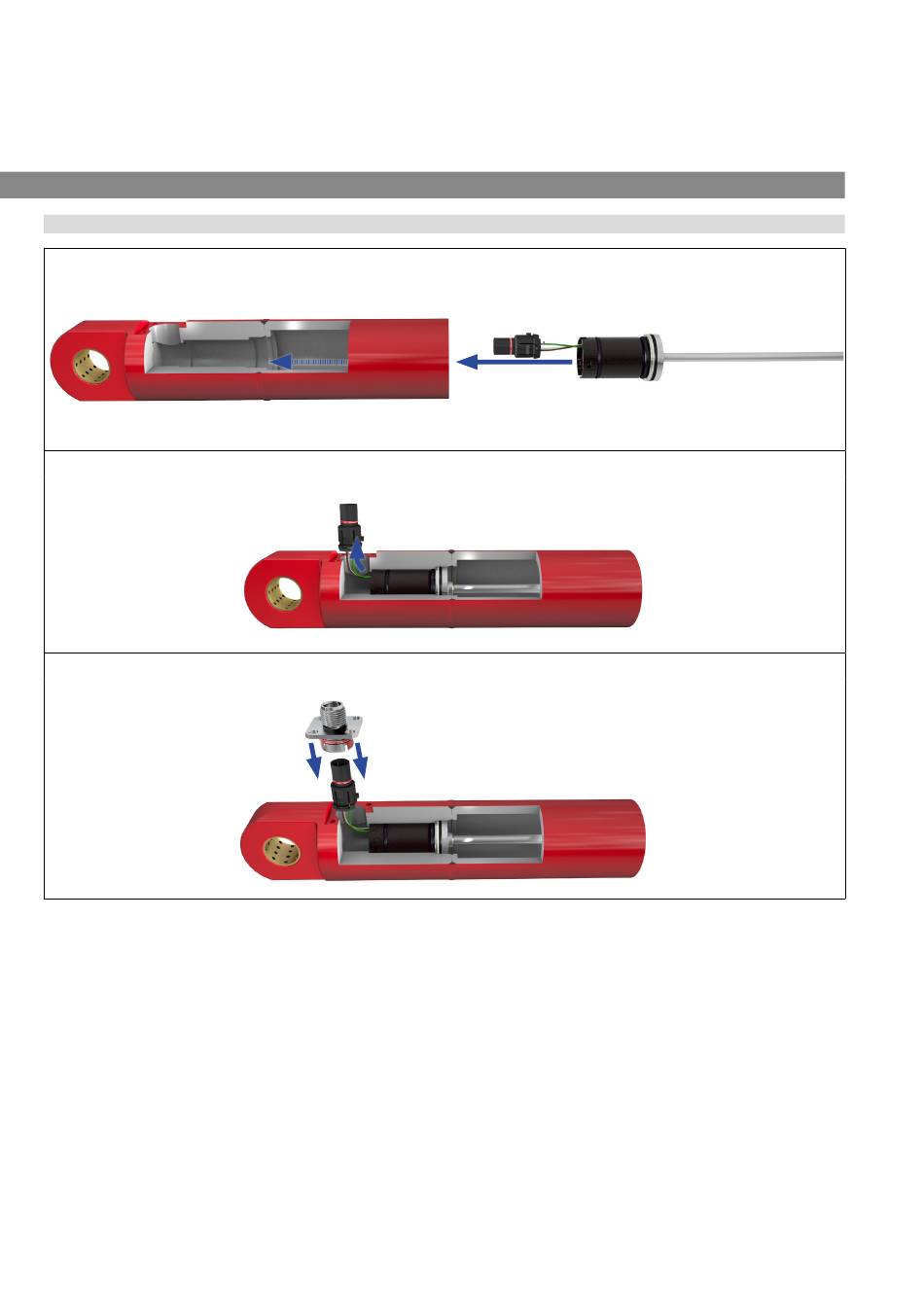

Fig. 7: Mounting sensors with M12 connection, part 1
