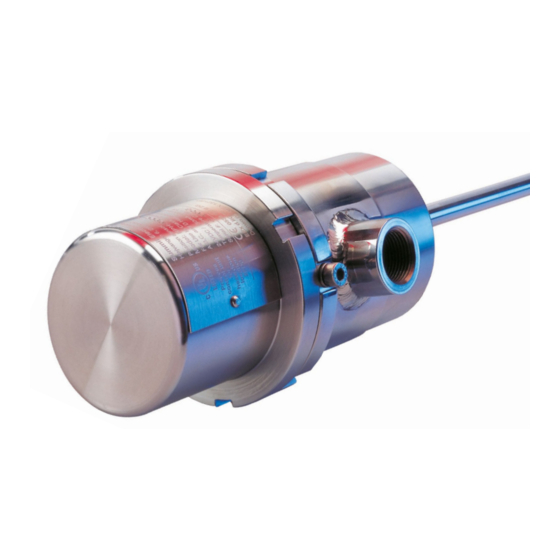

- Page 1 Temposonics ® Magnetostrictive Linear Position Sensors High Pressure Housing (HPH) Operation Manual...
-
Page 2: Technical Data
High Pressure Housing Operation Manual PRECISION POSITION MEASUREMENT – HPH This High Pressure Housing (HPH) is ATEX/IECEx as well as UL and Safety Instructions cUL approved for use in hazardous locations with Temposonics The sensor must only be used according to the Ex certificates listed ®... -
Page 3: Technical Drawing
High Pressure Housing Operation Manual TECHNICAL DRAWING HPH housing 147…198 mm (5.79…7.81 in.) Stroke length Dead zone Null zone 50…7500 mm *64 mm 51 mm 19.5 mm (*2.52 in.) (2…295 in.) (2 in.) (0.77 mm) 25 mm (1 in.) M18×1,5-6g ¾"... - Page 4 The normal way is that the sensor and the HPH housing are in one order and then MTS Sensors supply the sensor mounted in the WPH housing. Go to step 7.
- Page 5 High Pressure Housing Operation Manual Tighten firmly until the top and bottom flanges come together. Tighten gable gland according to the manufacturer’s specifications. Side mounted cable gland(s) Enter the cable through the gland without tightening. For cable sizes larger than 7mm or very rigid cables, you may need to remove the outer insulation jacket from inside the cable gland to the connector Insert and fasten the sensor.
- Page 6 High Pressure Housing Operation Manual Make the connections. Assemble the top and bottom turning clockwise and tighten firmly until top and bottom flanges come together. (see fig. 11) Tighten the cable glands according to manufacturer‘s specifications. Mount the grounding cable. Tighten the lock screw with min.
-
Page 7: Frequently Ordered Accessories
High Pressure Housing Operation Manual FREQUENTLY ORDERED ACCESSORIES – Additional options available in our Accessories Guide 551444 Position magnet Connector Cable Ø 32.8 60.5 (Ø 1.29) (2.38) Ø 4.3 Ø 23.8 (Ø 0.17) (Ø 0.94) Ø 13.5 (0.31) (Ø 0.53) Ring magnet OD33 M16 female connector (6 pin), straight PUR cable... - Page 8 MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2021 MTS Systems Corporation. No license of any intellectual property rights is granted.
