All Channel Controls
The All Channel Controls tab appears at the top of the Channel
Configuration view as shown in Figure 18 and Figure 19. After
the desired selections are made, click Apply Changes to
configure the connected device accordingly.
Controls for Channel
Settings that are applicable for each channel separately can be
applied through the Controls for Channel tab at the bottom of
the Channel Configuration view, as shown in Figure 18 and
Figure 19.
The Offset Correction text box accepts signed integer values in
decimal format. The value typed into this control has units of
codes and is the decimal representation of the binary, twos
complement value that is stored into the offset bit field in the
corresponding OFFSET_INn register.
The Gain Correction text box accepts double data type values
between 0 and 1.99997. The value written to the gain bit field in
the corresponding GAIN_INn register is determined by the
following expression: gain = M × (2
entered in the Gain Correction text box.
The Upper Threshold Value text box accepts 12-bit hexadecimal
values between 0x000 and 0xFFF. The value entered in this text
box is written to the upper bit field in the corresponding
UPPER_INn register.
The Lower Threshold Value text box accepts 12-bit hexadecimal
values between 0x000 and 0xFFF. The value entered in this text
box is written to the lower bit field in the corresponding
LOWER_INn register.
15
), where M is the value

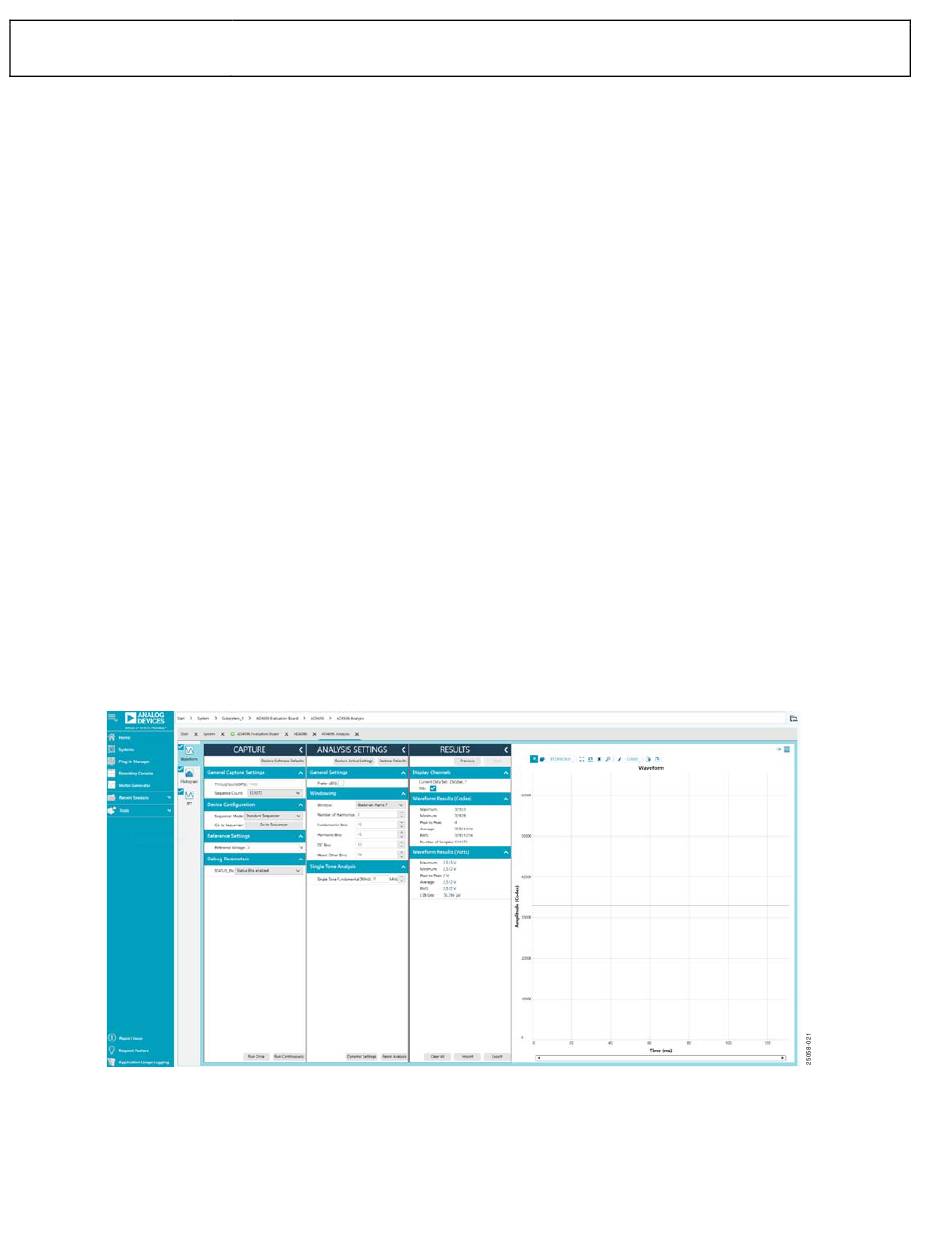

Figure 20. Analysis View with Waveform Tab Selected
Rev. 0 | Page 18 of 28
EVAL-AD4696FMCZ
The Hysteresis Value text box accepts 12-bit hexadecimal values
between 0x000 and 0xFFF. The value entered in this text box is
written to the hysteresis bit field in the corresponding
HYST_INn register.
When the required selections have been made, click Apply
Changes to confirm the changes.

ANALYSIS VIEW

The analysis view includes controls to configure and perform
ADC data capture as well as to display the captured data and
analysis summary of the performance of connected hardware.
Click the Proceed to Analysis button in the chip view to open
the analysis view, as shown in Figure 15.
The analysis view contains the Waveform tab, Histogram tab, and
FFT tab, each described in the Waveform Tab section, Histogram
Tab section, and FFT Tab section, respectively. These tabs display
data and analyzed performance of the data captured from the
connected hardware.
The Waveform, Histogram, and FFT tabs each display the
CAPTURE pane and the ANALYSIS SETTINGS pane. The
CAPTURE pane includes controls for configuring the ADC data
capture (see the Capture Pane section). The ANALYSIS
SETTINGS pane includes settings and parameters for frequency
domain analysis, including FFT calculation and ac performance
calculations (see the Analysis Settings section).
